switch mounting locations
What is the best place to mount lights switches? I want to be able to reach them easily and flip them on and off for oncoming traffic.
#3
CF Veteran
Join Date: Jul 2012
Location: Hudson, FL
Posts: 3,683
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L Inline 6
Many people put them in the center console in that empty space in front of the E-brake, or they just wire the switch right into where the factory switches go – next to the rear window defogger and rear windshield wiper toggles.

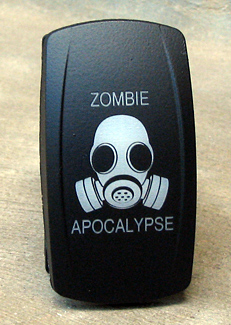

Here's another cool idea if you're not a smoker:
Here's another cool idea if you're not a smoker:
Last edited by thatXJguy; 08-19-2012 at 09:36 PM.
#6
CF Veteran
Thread Starter
Join Date: Oct 2011
Location: South Mills, NC
Posts: 1,812
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
#7
Member
Join Date: Sep 2011
Location: lafayette,LA
Posts: 101
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0l straight 6
Originally Posted by thatXJguy
Many people put them in the center console in that empty space in front of the E-brake, or they just wire the switch right into where the factory switches go - next to the rear window defogger and rear windshield wiper toggles.
Here's another cool idea if you're not a smoker:
Here's another cool idea if you're not a smoker:
Trending Topics
#10
Senior Member
Join Date: Nov 2010
Location: Cloquet, MN
Posts: 976
Likes: 0
Received 5 Likes
on
5 Posts
Year: 2000 Ltd.
Model: Cherokee
Engine: 4.0L I6

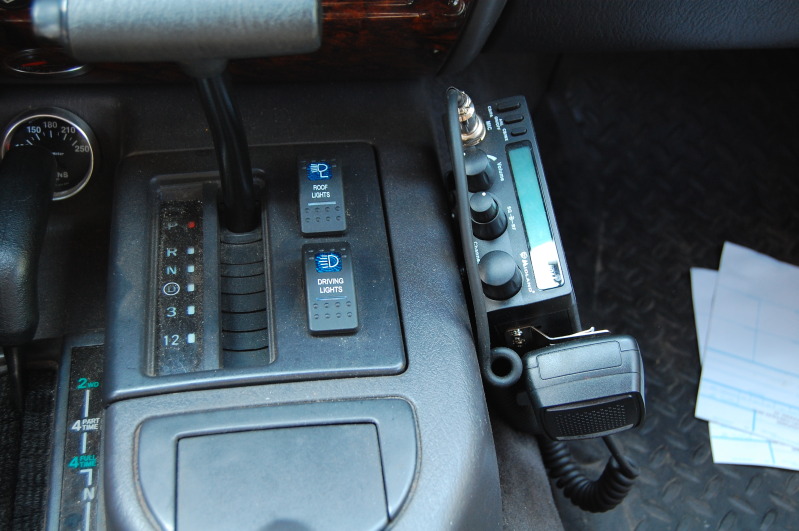

I put mine on the center console.
I run relays for the roof and driving lights but the power for the switches is run from the stock light circuits. The power for the driving lights are taken from the high beam feed after the dimmer switch. This does two things. First, I can't accidentally leave the lights on during the day if the switch gets turned on accidentally. The lights won't turn on unless the headlights are on. Second, they won't turn on unless the hi beams are on. This way when I'm using them to look for deer on the side of the road all I have to do it hit the low beams for an oncoming car and the drivings lights turn off with the hi beams. Turn the hi beams back on and the drivings lights come on with them. If I don't want the driving lights on I can turn them off manually.
The roof lights are wired to turn on only when the head lights are on (hi or low beams). I tapped into the feed between the pull out headlight switch and the dimmer switch on the steering column. This way the roof light switch is only powered when the lights are turned on, but the roof lights can be used with low beams or hi beams. It's illegal in WI to use auxiliary lights on the road that are above the center line of the headlights so I don't use them unless I'm off-road. No worries about oncoming traffic with those.
