Rear shock different lengths ??
#1
CF Veteran
Thread Starter
Join Date: Oct 2009
Location: south jersey
Posts: 1,474
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Rear shock different lengths ??

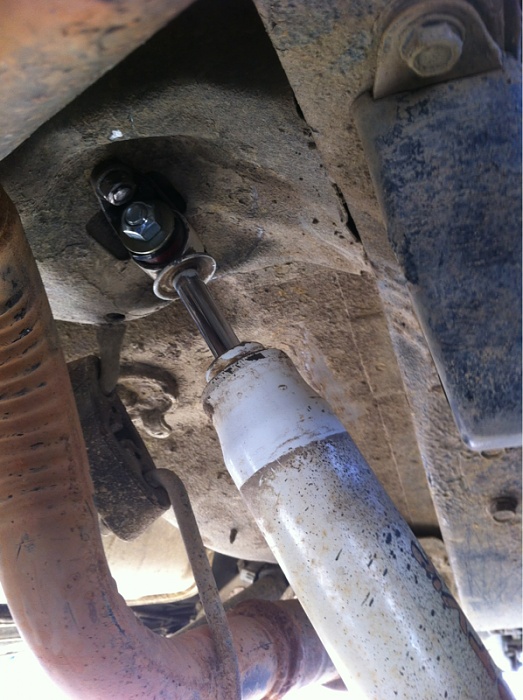

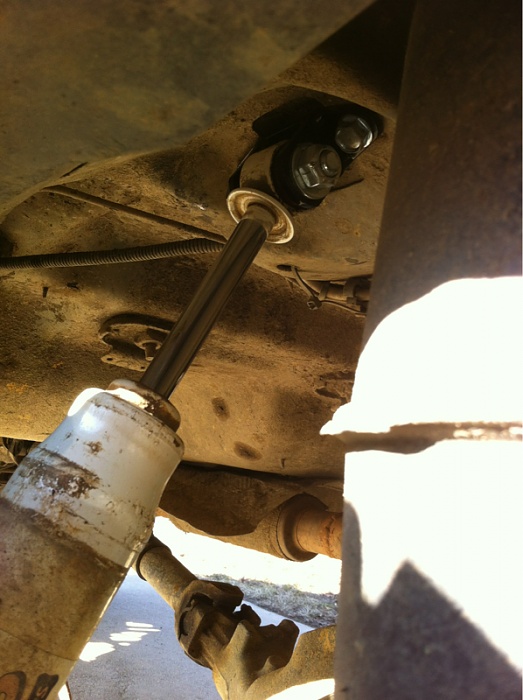

I always had shock boots on my truck so I never noticed this before , but I went to put upper bar pin eliminators on my rear shocks and I took the boots off and when I bolted everything back up I noticed the passenger rear shock has like an inch less shaft showing then the diver side , this is real odd to me , the shocks are the same length and I measured my actual Frame rail both sides to the axel and they measure identical , I can't figure out why the shocks are sitting different , nothing looks bent or tweaked , had anyone ever noticed this or had this issue ?
#7
CF Veteran
Thread Starter
Join Date: Oct 2009
Location: south jersey
Posts: 1,474
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Originally Posted by jbsjunk
You are pivoting the diff on the front spring bolts.
Trending Topics
#8
Member
Join Date: Jan 2010
Location: NorCal
Posts: 106
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0 Renix
Did you measure from the frame rail to each of the shock mounts on the axle? Or just the tube? Because one of the shock mounts is on the front side of the axle and the other is on the rear side, I'm pretty sure the pinion angle will affect the shock lengths. If you rotate the axle, one shock will extend, while the other compresses.
Last edited by FishinXJ; 01-25-2012 at 09:45 PM.
#11
CF Veteran
Thread Starter
Join Date: Oct 2009
Location: south jersey
Posts: 1,474
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Originally Posted by jbsjunk
The back drops further than the front.
