quick disconnects
Ok...I have zone quick disconnects ..my problem is the oic on the instructions docent show you how to mount them and what it looks like when they are mounted...can anyone help me with this...
Like maybe some pics of yours ....
Or where you have located yours....
Like maybe some pics of yours ....
Or where you have located yours....
#2
CF Veteran
Join Date: Jul 2010
Location: 802
Posts: 4,930
Likes: 0
Received 3 Likes
on
3 Posts
Year: 99
Model: Cherokee
Engine: 4.0
Originally Posted by jaythenewguytojeepn
Ok...I have zone quick disconnects ..my problem is the oic on the instructions docent show you how to mount them and what it looks like when they are mounted...can anyone help me with this...
Like maybe some pics of yours ....
Or where you have located yours....
Like maybe some pics of yours ....
Or where you have located yours....

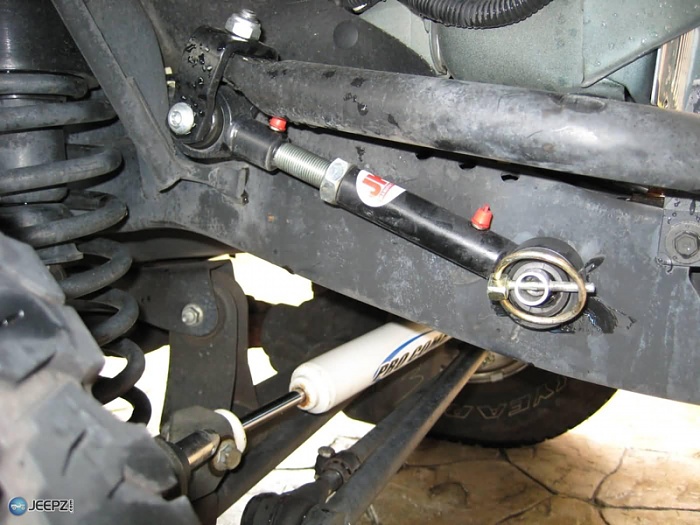

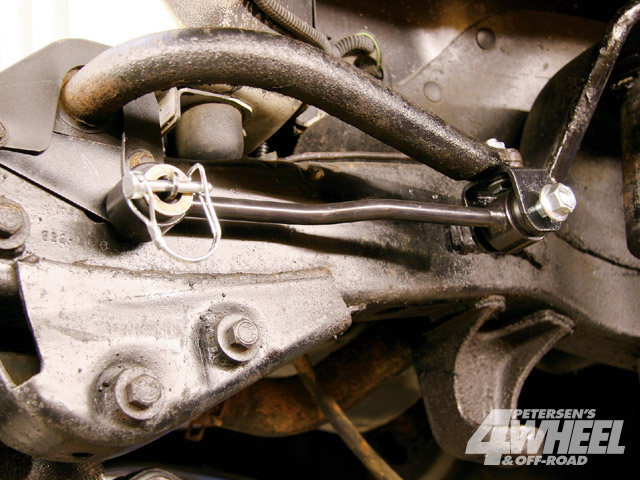

Not familiar with the zone setup, but the sway bar side should have the swivel link, allowing them to fold, and the axle side will have the clevis pin. I'll go google a couple pics now... 1 sec...
Last edited by VTJeep; 05-09-2012 at 03:39 PM.
#3
Senior Member
Thread Starter
Join Date: Jan 2012
Location: High Desert AV
Posts: 576
Likes: 0
Received 0 Likes
on
0 Posts
Year: 88
Model: Cherokee
Engine: inline 6 4.0 liter renix
I goggled it and I didn't find as good of pics has u but similar...but what they gave me was a strap...I like the pin idea..where can I buy some or could I just drill a hole in a bolt ...I think the bolt should work...thank you..I just couldn't figure out the strap but I guess that's trash...thanks for not being a smart *** about the lil questions...
#4
CF Veteran
Join Date: Jul 2012
Location: Hudson, FL
Posts: 3,683
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L Inline 6
@VTJeep, those are pictures of a TJ.
For the XJ, your kit may or may not come with mounting. JKS disconnects, like pictured, will not mount to an XJ unless you have the factory steering skid plate, as indicated by the instructions.
Rough country's disconnects will mount to the unibody with Rough Country's bolt-on tabs.
For the XJ, your kit may or may not come with mounting. JKS disconnects, like pictured, will not mount to an XJ unless you have the factory steering skid plate, as indicated by the instructions.
Rough country's disconnects will mount to the unibody with Rough Country's bolt-on tabs.
#6
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
@VTJeep, those are pictures of a TJ.
For the XJ, your kit may or may not come with mounting. JKS disconnects, like pictured, will not mount to an XJ unless you have the factory steering skid plate, as indicated by the instructions.
Rough country's disconnects will mount to the unibody with Rough Country's bolt-on tabs.
For the XJ, your kit may or may not come with mounting. JKS disconnects, like pictured, will not mount to an XJ unless you have the factory steering skid plate, as indicated by the instructions.
Rough country's disconnects will mount to the unibody with Rough Country's bolt-on tabs.
#7
CF Veteran
Join Date: Feb 2010
Location: Missoula, MT
Posts: 3,353
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: Golen 4.6 Stroker, AFE Headers, 62mm TB, 24 LB Injectors, Brown Dog kit, HF Cat, 3" Exhaust
I have the JKS discos and no steering skid plate. I just used a bungie cord and tied them up around the triangle piece of metal that attaches to fender wells. I did it about a year ago when I went to Moab. Ive left them up this whole time with no issues haha.
