Need help to identify rear end
I bought a 96 Grand Cherokee 4 wheel drive off Craigs List about 2 weeks ago.The rear end is now making a lot of metal on metal sounds from the rear end. I've tried to get the parts from local parts stores and they keep saying it's a dana 30. I compared the pics posted prior and it looks like a chrysler 8.25. Please help!
08-17-2012, 04:59 PM
#5
CF Veteran
Join Date: May 2008
Location: Bristol,Pa
Posts: 5,188
Likes: 0
Received 6 Likes
on
6 Posts
Year: 94
Model: Cherokee
Engine: 4.0L
Dana 35..
Not worth rebuilding. Get one with matching ratio from a part out or junkyard and slap it in.
Or upgrade to an 8.25 or 44 if your gonna wheel this rig.
BTW... ZJ's never came with an 8.25.
Not worth rebuilding. Get one with matching ratio from a part out or junkyard and slap it in.
Or upgrade to an 8.25 or 44 if your gonna wheel this rig.
BTW... ZJ's never came with an 8.25.
Last edited by OverlandZJ; 08-17-2012 at 05:03 PM.
Trending Topics
08-17-2012, 05:26 PM
#10
CF Veteran
Join Date: May 2008
Location: Bristol,Pa
Posts: 5,188
Likes: 0
Received 6 Likes
on
6 Posts
Year: 94
Model: Cherokee
Engine: 4.0L
On the ZJ there were two axles, a 35 and the D44a. The 44a is an aluminum housing, not as strong as a cast iron 44. Aftermarket parts are minimul.... but it is an upgrade albeit not much and a bolt in to the ZJ.
If this is a wheeler your best bet is an XJ 8.25 or D44, then buy a bracket kit to bolt it in the ZJ. You also have the Ford 8.8 option as well..
That's exactly what i'm doing, bought a bracket kit for my XJ44 to swap it into my ZJ build. You'll need to study some and be able to measure and weld.
If this is a wheeler your best bet is an XJ 8.25 or D44, then buy a bracket kit to bolt it in the ZJ. You also have the Ford 8.8 option as well..
That's exactly what i'm doing, bought a bracket kit for my XJ44 to swap it into my ZJ build. You'll need to study some and be able to measure and weld.
08-17-2012, 05:46 PM
#11
Newbie
Thread Starter
Join Date: Aug 2012
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
First 4 wheeler I've owned,I'm guessing wheeler means off road? This is just a grocery getter and a way to get back and forth to work. Moved to a place that's off the beaten path so doubt I'll see too many snow plows. The 4 wheel drive won't be used too often I hope.
08-17-2012, 07:04 PM
#12
CF Veteran
Join Date: May 2008
Location: Bristol,Pa
Posts: 5,188
Likes: 0
Received 6 Likes
on
6 Posts
Year: 94
Model: Cherokee
Engine: 4.0L
Considering your intended purpose i'd opt for a bolt in replacement.

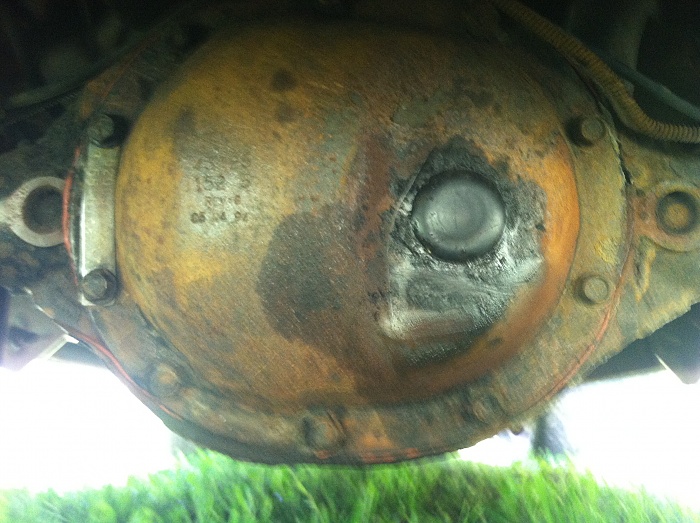

See that tag on the first pic? Take it off, clean it up and post the number sequence on it. We can tell you the gear ratio so you can get the correct replacement axle. Having two ratio's is not gonna work.
See that tag on the first pic? Take it off, clean it up and post the number sequence on it. We can tell you the gear ratio so you can get the correct replacement axle. Having two ratio's is not gonna work.
08-17-2012, 10:38 PM
#15
Newbie
Thread Starter
Join Date: Aug 2012
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
The truck has almost 180,000 miles on it too. Not really wanting to sink a bunch of money on it.
