Ian84e5

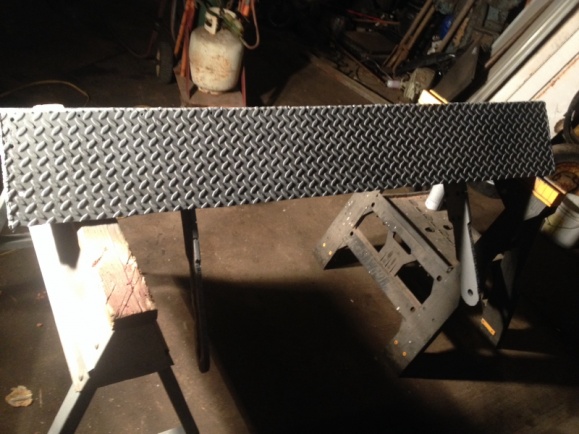

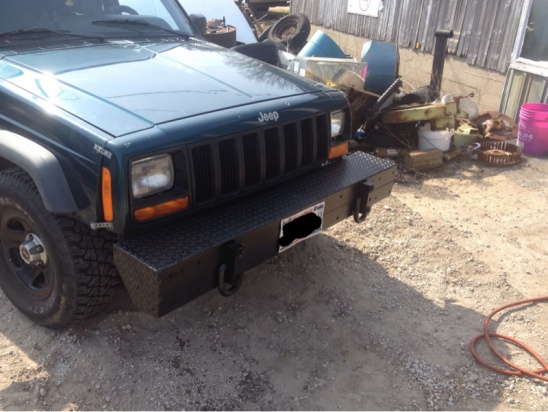

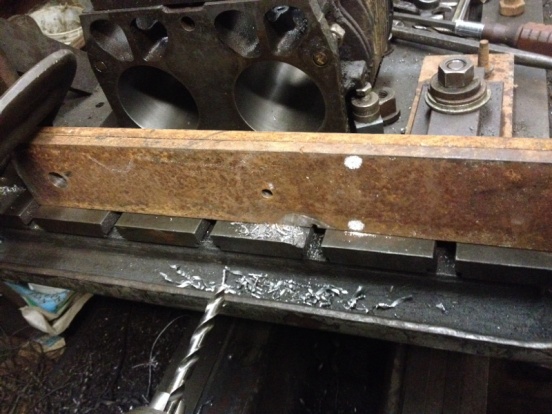

So I just finished my first XJ project and it was building a front bumper, it's made of a 3/8 inch steel C channel beam, 3/8 inch steel mounts, and boxed in with 1/4 inch steel diamond plate. This is my first post on my first jeep forum so please take a look at the pics and offer some constructive criticisms.

Ian84e5

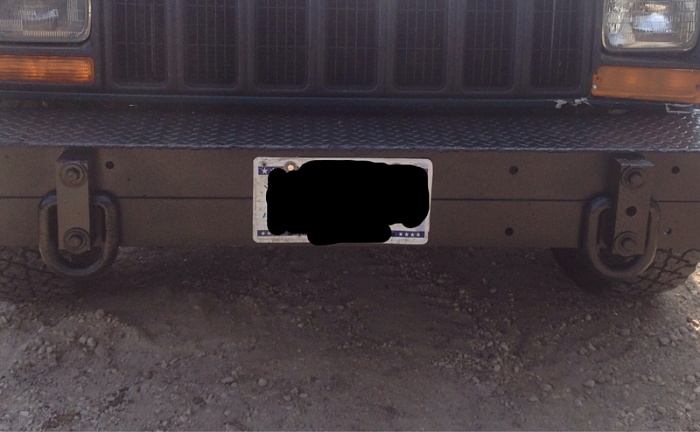

And here are the d ring shackles that are goin on it

XJCLASSICSTROUD

How much does that weigh. You don't want a heavy bumper.

Ian84e5

It's pretty heavy it's a solid buck n a half. I'm gonna make some alterations to it as I replace the fenders, I'm gonna cut it off on each side Of the shackles and angle it back towards the fenders

XJCLASSICSTROUD

See all you really need is 1/4 steel center for winch plate and go out with 1/8 or 3/16 or tube. Save alot of weight and give some relief if you hit somthing instead of tweaking the body

Ian84e5

It's what I had lyin around

Atmos

why is it so huge though



(anyone who makes a that's what she said joke gets 1 internet slap)

XJCLASSICSTROUD

Lol awe I don't want to get slapped. And if you like it that's what matters. I was just saying could have made it a hella lot lighter. And that makes a big difference in the trails.

Strmtrooper70

Lol! Haha darn.

Atmos

also approach angle. just a big honkin monster bumper. any pics of how it's bolted to the frame?

Ian84e5

I'm at work right now but I'll take some when I get home

XJCLASSICSTROUD

It looks from the pics like he went back pretty far with the plates.

Ian84e5

It goes all the way back past the sway bar. I had to cut the head of a 3/4 in bolt and weld a washer to it so I would have clearance past the sway bar
