96 chrokee 193k mi, chirping sounds & vibrations - any clue?
11-03-2011, 09:54 PM
#1
Newbie
Thread Starter
Join Date: Nov 2011
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
96 chrokee 193k mi, chirping sounds & vibrations - any clue?
hey all...so recently i have had this constant chirping noise while driving forward from a dead stop. This chirping only happens while i start to move. Also, there is a vibration of some sort when i start to speed up- but it only happens when i press the gas and move foreward. There are no vibrations when the gas is let go. here is a video....
http://youtu.be/abl_ZJXyyc8
any clue?
http://youtu.be/abl_ZJXyyc8
any clue?
11-03-2011, 10:00 PM
#2
CF Veteran
Join Date: Jan 2010
Location: WI
Posts: 1,506
Likes: 0
Received 2 Likes
on
2 Posts
Year: '99
Model: Cherokee
Engine: 4.o
Hard to tell. If you just rev it up in park and have no nose then it wouldn't be a belt. So next thing I would think would be U-joints or just something stuck in the brakes. Sorry but that's all the help I can give.
11-04-2011, 07:55 AM
#3
CF Veteran
does it sound like a bunch of angry sparrows?
it's probably your centering ball in the double cardon in your front drive shaft.
time for a rebuild.
it's probably your centering ball in the double cardon in your front drive shaft.
time for a rebuild.
11-05-2011, 07:39 AM
#7
Senior Member
Join Date: Jun 2010
Location: Ft. Myers, Fl.
Posts: 632
Likes: 0
Received 1 Like
on
1 Post
Year: 1997, 1999
Model: Cherokee
Engine: 4.0
That's a u-joint. Possibly the centering ball but since it seems to only happen when you are applying the throttle I'd check the rear u joints.
Trending Topics
11-05-2011, 07:41 AM
#8
Newbie
Thread Starter
Join Date: Nov 2011
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Well I didnt actually fix the problem. I just have a feeling I know where it might be coming from. I'll trouble shoot it today after work around 5 EST. I'll post pictures as I go along so maybe I can help out other fellow jeep owners. I have the iPhone app so it's very simple to post.
11-05-2011, 09:37 AM
#9
Newbie
Thread Starter
Join Date: Nov 2011
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Originally Posted by DualSportDad
That's a u-joint. Possibly the centering ball but since it seems to only happen when you are applying the throttle I'd check the rear u joints.
11-05-2011, 10:59 AM
#10
Junior Member
Join Date: Oct 2011
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts
Mine is doing the same thing but only at lower speeds up to like 35 if i exceeded slow it don't vibrate but still has the chirping.i found my passenger u joint on the front axle has very little movement but betting its the problem
11-05-2011, 08:19 PM
#14
CF Veteran
99.9% of the time, the angry sparrows is the centering ball, not a u-joint.
you should replace both u-joints on each side of the centering ball since you have it all apart anyways.
the centering ball can come two ways, just the ball for a rebuild, or even better, the centering ball with the yoke.
i actually just took mine apart and cleaned and greased mine up and put it all back together again. been good for 3 years now.
they're a bit tricky cause the center ball has a little spring, but not too difficult if you've done u-joints before.
you should replace both u-joints on each side of the centering ball since you have it all apart anyways.
the centering ball can come two ways, just the ball for a rebuild, or even better, the centering ball with the yoke.
i actually just took mine apart and cleaned and greased mine up and put it all back together again. been good for 3 years now.
they're a bit tricky cause the center ball has a little spring, but not too difficult if you've done u-joints before.
11-05-2011, 09:05 PM
#15
Newbie
Thread Starter
Join Date: Nov 2011
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee

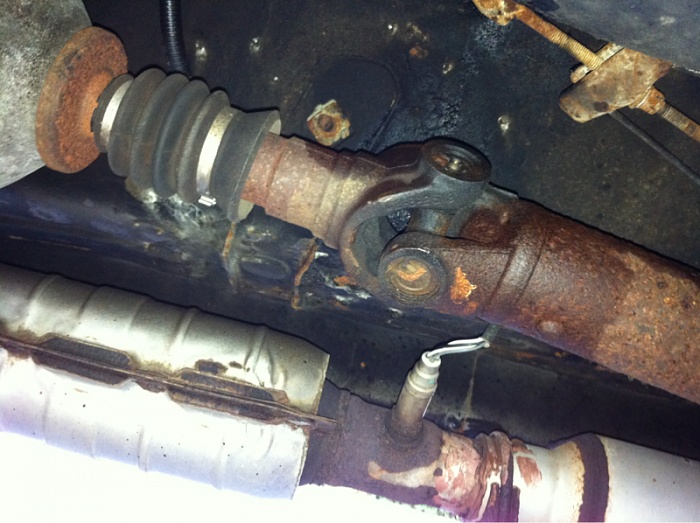

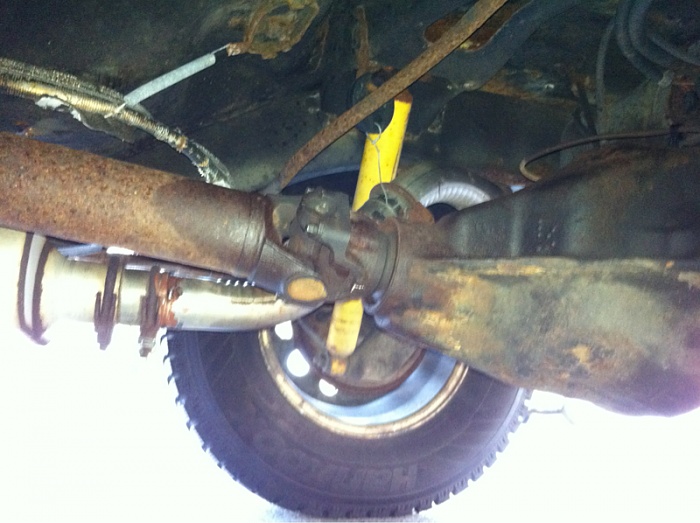

Hey thanks for the great post and pic. Is the centering yoke on the rear drive shaft or the front drive shaft ? I'm just trying to narrow down the exact area you are referring too.
