And yet another front bumper

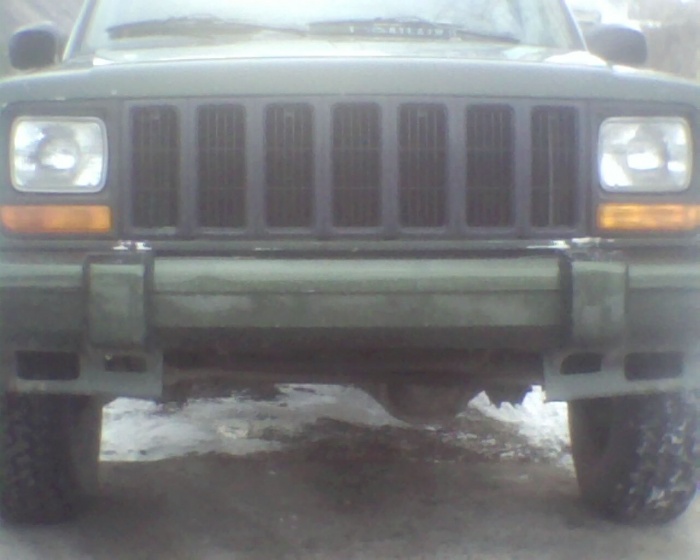

After hitting a deer, I priced replacement factory bumpers...I don't think so. I bought:
1 - 3/16 x 12 x 84" 55.25
1 - 1/4 x 12 x 24" 20.85
Plus duct tape, cardboard, hardware, coffee, etc.
1 - 3/16 x 12 x 84" 55.25
1 - 1/4 x 12 x 24" 20.85
Plus duct tape, cardboard, hardware, coffee, etc.
03-14-2013, 12:22 PM
#4
Newbie
Join Date: Dec 2012
Location: East TX
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee

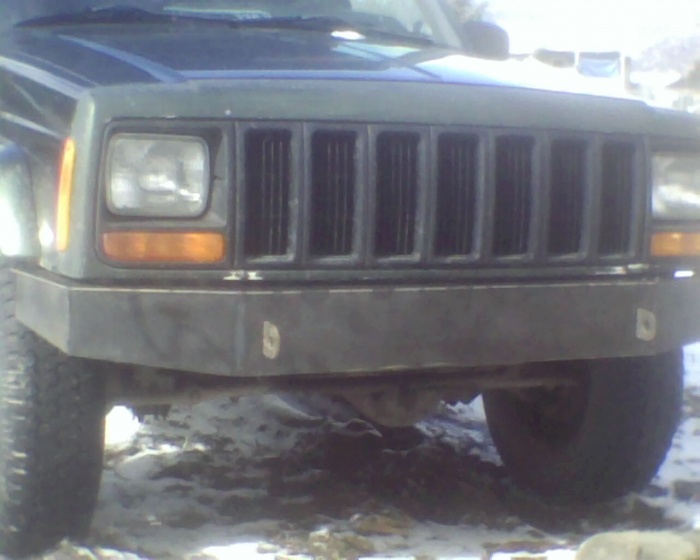

Please detail how you did the d ring mounts, I see in the beginning they are thin, and at the end they are about 1" thick. Did you add plate to either side or?
03-14-2013, 01:00 PM
#6
Senior Member
Join Date: Mar 2011
Location: Lexington Park, MD
Posts: 693
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L I6
Probably did the same thing I did on mine, took pieces of the 1/4" plate that were cut off for the mounts to fit right and put a piece on each side of the one sticking through the bumper, sandwiching the frame mount. Then weld them all together, weld the two outside plates to the bumper face and grind it all smooth. Looks good by the way.
03-14-2013, 01:30 PM
#7
Member
Thread Starter
Join Date: May 2012
Posts: 132
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Exactly.

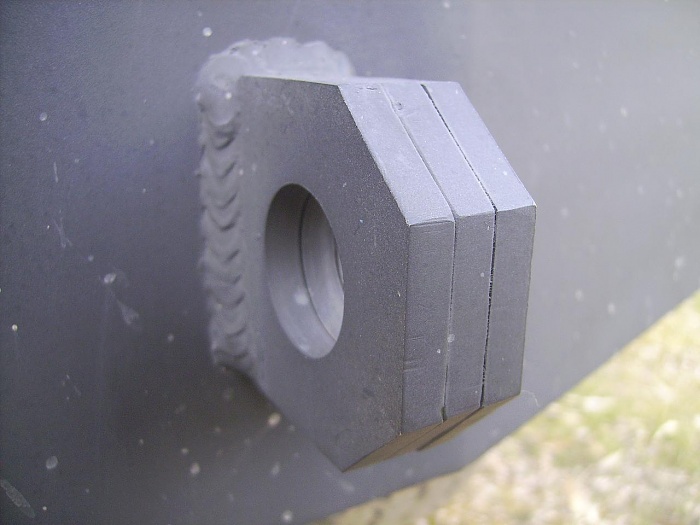

I just added 1/4" to each side.
I just beveled the back edge of the side tabs. If I were building it for someone else, I would probably weld the front solid also....although there probably wouldn't be a lot of difference.
I just added 1/4" to each side.
I just beveled the back edge of the side tabs. If I were building it for someone else, I would probably weld the front solid also....although there probably wouldn't be a lot of difference.
Last edited by Bruce in Montana; 03-15-2013 at 09:24 AM. Reason: added picture
Trending Topics
03-30-2013, 09:04 AM
#9
Junior Member
Join Date: Feb 2013
Location: junction city,Ohio
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000 1997
Model: Cherokee
Engine: 4.0
Very nice However
Get some protection up around your grill and headlights.. Take it from me
I did'nt have my XJ 2 weeks when a deer hit my front grille jamming everything from the bumper up into the engine compartment.
I did'nt have my XJ 2 weeks when a deer hit my front grille jamming everything from the bumper up into the engine compartment.
03-30-2013, 09:37 AM
#10
CF Veteran
Join Date: Jan 2010
Location: Virginia Beach by way of Michigan
Posts: 5,482
Likes: 0
Received 24 Likes
on
24 Posts
You're gonna want more than 3 bolts per mount if you plan in using those d-ring tabs. Extend the mounts down the uni-body rail and use 6-7 bolts per side.
03-30-2013, 06:01 PM
#11
Member
Thread Starter
Join Date: May 2012
Posts: 132
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
03-31-2013, 07:14 PM
#12
CF Veteran
Join Date: Jan 2010
Location: Virginia Beach by way of Michigan
Posts: 5,482
Likes: 0
Received 24 Likes
on
24 Posts
Sorry, the pictures weren't very clear. I've got 6 in each side and I'm fabricating a better gear box spacer. You're right though...I've seen some ebay bumpers that just mount to the 3 factory holes with recovery points and even stingers. I'm sure they're great, unless of course you ever actually have to use them.
