WJ Track bar bracket for XJ
I've gotten a few questions about these so I will post up some pictures. I'm still refining these and still abusing them.
So what is it?????/
Well it allows you to use a factory WJ front track bar in place of your factor XJ track bar. The WJ track bar is just a little bit longer but it is a double shear type instead of the annoying tie rod end type that comes factory on XJs.
Right now this one is on my XJ and I'm at 4in of lift, I don't think it will work any higher than that. But I can use this on any height XJ between stock and 4in.

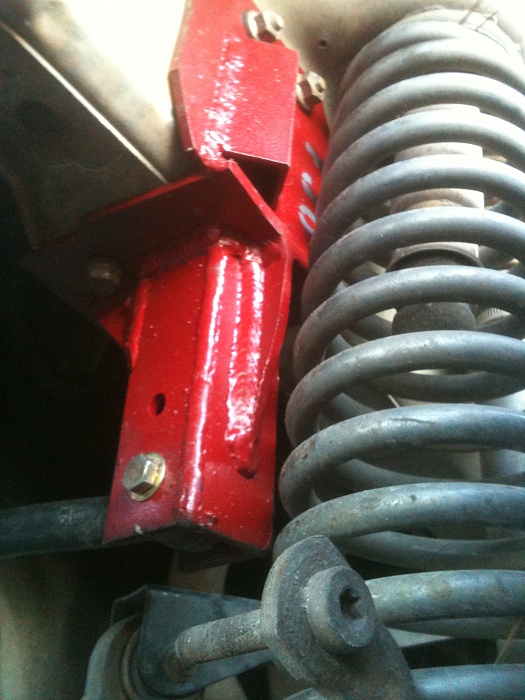

All the pictures except for the bright red one are my third version of it. The red one is now on my buddies jeep and he beats on it. Enjoy.
So what is it?????/
Well it allows you to use a factory WJ front track bar in place of your factor XJ track bar. The WJ track bar is just a little bit longer but it is a double shear type instead of the annoying tie rod end type that comes factory on XJs.
Right now this one is on my XJ and I'm at 4in of lift, I don't think it will work any higher than that. But I can use this on any height XJ between stock and 4in.
All the pictures except for the bright red one are my third version of it. The red one is now on my buddies jeep and he beats on it. Enjoy.
#3
Seasoned Member
Thread Starter
Join Date: Oct 2010
Location: Camp Lejeune, NC
Posts: 454
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0 HO
#5
Member
Join Date: May 2012
Location: Hayesville, NC
Posts: 244
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0L I6
I'm the one running that mount and I must say it's rather beefy. I've done a few grinds on it for spring clearance but that's mainly due to my axle being off center, nothing ultimately to do with bracket itself. I'm running at about 4'' of lift and i have no issues with it on there. Also helping bringing the track bar back down to a more stock angle. So far so good
#6
Senior Member
Join Date: Mar 2012
Location: gresham
Posts: 517
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: inline 6 4.0 ho
I really like this idea! I think if I do lift my rig anymore and need to drop the track bar I will make a mount like this! Good job man!
#7
Seasoned Member
Thread Starter
Join Date: Oct 2010
Location: Camp Lejeune, NC
Posts: 454
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0 HO
Trending Topics
#9
CF Veteran
Join Date: May 2010
Location: New Hampshire
Posts: 1,013
Likes: 0
Received 1 Like
on
1 Post
Year: 1997
Model: Grand Cherokee
Engine: 4.0
this is pretty cool. I never thought of the WJ track bar double shear unit. Did you do this cause you just wanted to align the front end or did you have DW and want to tighten it up?
#10
Seasoned Member
Thread Starter
Join Date: Oct 2010
Location: Camp Lejeune, NC
Posts: 454
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0 HO
#12
Seasoned Member
Thread Starter
Join Date: Oct 2010
Location: Camp Lejeune, NC
Posts: 454
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0 HO
