Simple CB antenna mount



TIG welded bushings to plates at 100 amp, using .035 filler wire.



Dammmmmn look at you.good to see that my exhaust is gonna be welded nicely



I made one very similar to this! Works great, mines off the driver side.



Do you have a non-ground-plane antenna? I'm finding that with this mount, I get a very high reflection/swr rating. I'm considering either a.) making a hood mount instead, or b.) using a non-ground-plane antenna, if it would work.



Mine grounds through the plate on the bottom. That's weird yours has problems. Is your painted?



First time welding on something I'm going to actually use.







I've spent some time practicing just welding pieces of scrap together. Maybe an hour in total practicing.



Looks a little cold. Should fuse Into the bottom plate a little better. Not terible for never doing it before though.



Thanks. It was with a Hobart 140 mig, .30 flux I believe.

I had my pops there for tips he said something similar. Lol. I'm still getting used to being in that sweet spot between too close and too far. Just when I kind of got in a groove though, it was done.



Machine and wire may have been a little small for what your welding on. But yeah keep practicing. You'll bet the hang of it. Took me a little bit to get dialed in also.



Mine is painted, but it is sanded off in the appropriate spots for grounding, and I even ran an extra ground wire to it. With the SWR meter hooked up, it's right around 6, and when I bend the antenna away from the jeep, it goes down right away.

Do you have a pic of your setup?



Mines painted also. I'll get a pic later after work for ya.

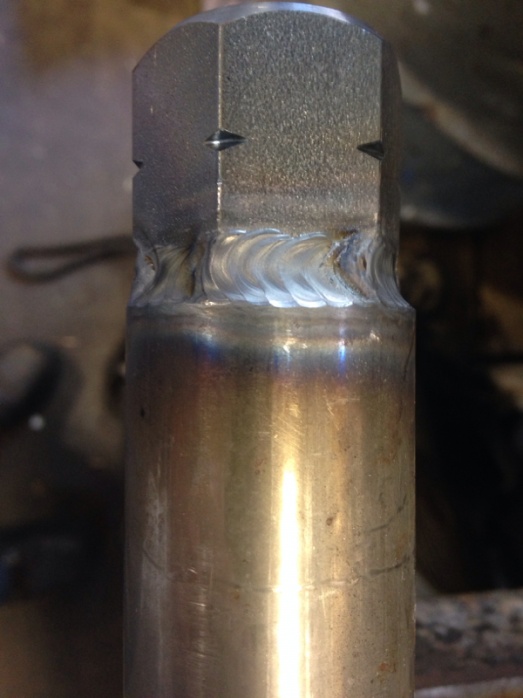

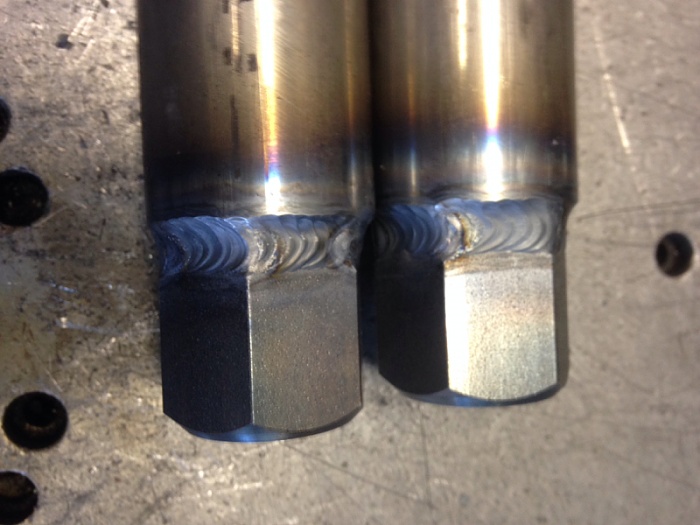

Made some heim steerings for my jeep on my lunch break



We should rename this thread "xjwonders welding projects" you're making us all look bad!



ha no. I m just sharing my experience in order to help ya guys out.
