switch panel
07-02-2010, 08:35 PM
#1
CF Veteran
Thread Starter
Join Date: Mar 2010
Location: wilkes barre PA.
Posts: 1,200
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: 6 cylinder
switch panel

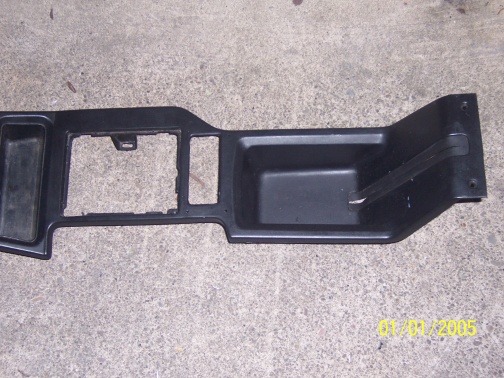

i dont like where i put my toggle for my hella lights and i am wiring my efan to a toggle next week so i decided to make a panel for the switches. firts i cut out my coin pocket.
after that i cut out some pieces of aluminum sprayed them with black paint and used self tapping screws to hold everything in place.
thats my 3 year old mini me bolting it all up
after that i cut out some pieces of aluminum sprayed them with black paint and used self tapping screws to hold everything in place.
thats my 3 year old mini me bolting it all up
07-03-2010, 05:32 PM
#2
Seasoned Member
Join Date: Oct 2009
Posts: 321
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990 Renix
Model: Cherokee
Engine: 4.0L
I like it
Sometimes I begin to think I could have done mine a little better.. :/
But its there and looks good..
Next switches will have to be on the console 4 me.. Im out of room up on the dash..

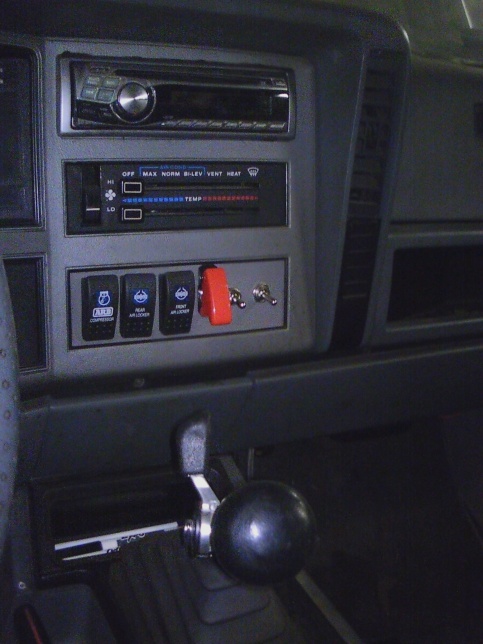

btw, somewhere along the way.. i saw pics of a guy who got one of those shelves that go over the visors who built a faceplate to the shape of the ceiling, then mounted allllll sorts of cool stuff up there including back-up camera, CB, Nav. and a friggin bevy of switches..
good job!
Sometimes I begin to think I could have done mine a little better.. :/
But its there and looks good..
Next switches will have to be on the console 4 me.. Im out of room up on the dash..
btw, somewhere along the way.. i saw pics of a guy who got one of those shelves that go over the visors who built a faceplate to the shape of the ceiling, then mounted allllll sorts of cool stuff up there including back-up camera, CB, Nav. and a friggin bevy of switches..
good job!
07-03-2010, 06:36 PM
#3
CF Veteran
Thread Starter
Join Date: Mar 2010
Location: wilkes barre PA.
Posts: 1,200
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: 6 cylinder
yea i saw that shelf with the cb his xm radio and all that. i thought that was pretty cool. i wired my e fan this morn real quick b4 work and put the toggles in ill post a pic of it tomarrow my old lady took my baby to work tonight
07-03-2010, 07:17 PM
#4
Honorary Moderator
Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Likes: 0
Received 13 Likes
on
11 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
looks good! i like the idea
how did you wire your e-fan? the reason i ask is i used a 3 way switch. and i just hope there is fuses...
how did you wire your e-fan? the reason i ask is i used a 3 way switch. and i just hope there is fuses...
07-04-2010, 08:15 AM
#6
CF Veteran
Thread Starter
Join Date: Mar 2010
Location: wilkes barre PA.
Posts: 1,200
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: 6 cylinder

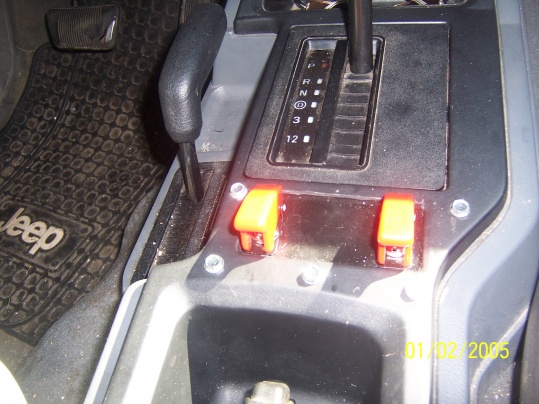

and here it is finished for now. switch on the left is for hella lights and switch on right is for e-fan. what do you guys think
07-04-2010, 11:19 AM
#7
Honorary Moderator
Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Likes: 0
Received 13 Likes
on
11 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
i really like it! i would take some black nail polish and paint the screw heads. But it looks really good man!
