Store bought control arm brackets look this Beefy?

Thread Tools

Search this Thread

Old 03-25-2010, 09:34 PM
  #1
CF Veteran
Thread Starter

posjeepxj's Avatar

Join Date: Jan 2010
Location: Indianola IOWA
Posts: 2,059
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0
Default HOme made control arm drop brackets, what do you think?

start of mine. These are temporary till i have coinage for long arms

Name:  control arm drop 1.jpg
Views: 551
Size:  55.9 KB

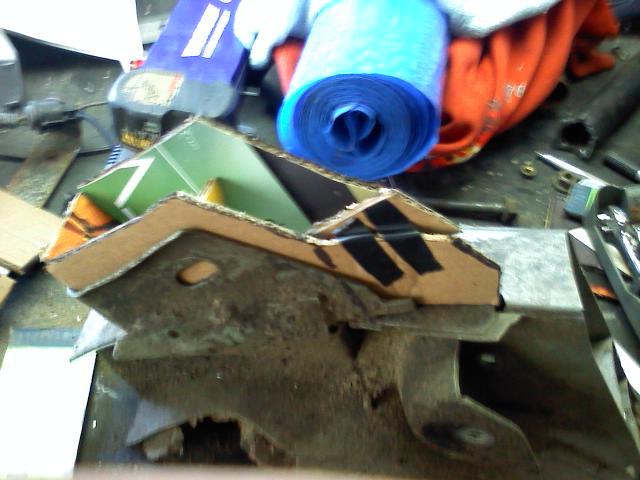

Name:  control arm drop 2.jpg
Views: 601
Size:  43.4 KB

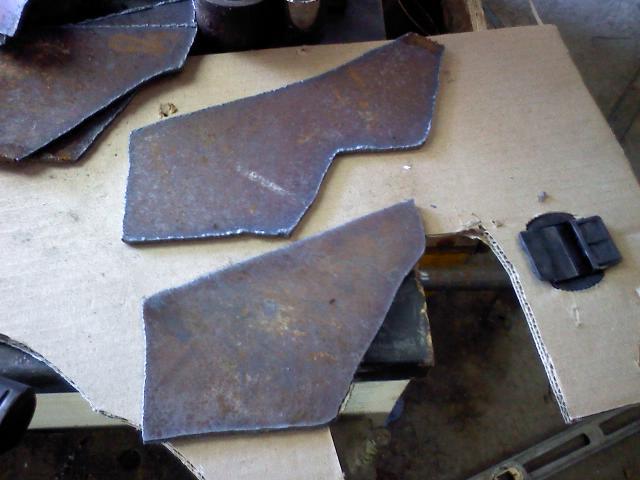

Name:  control arm drop 3.jpg
Views: 559
Size:  38.9 KB

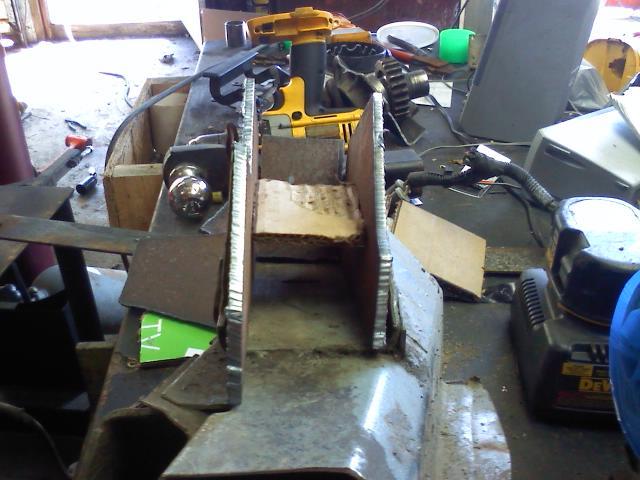

Name:  control arm drop 4.jpg
Views: 540
Size:  48.8 KB

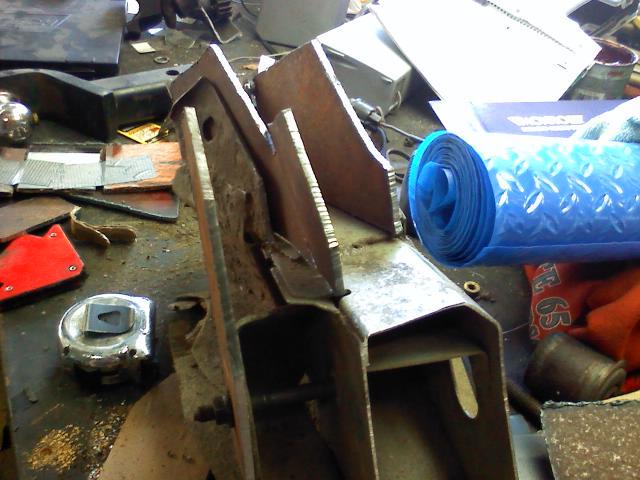

Name:  control arm drop 5.jpg
Views: 549
Size:  50.2 KB

Last edited by posjeepxj; 03-25-2010 at 11:12 PM. Reason: stupid title
Old 03-25-2010, 09:35 PM
  #2
CF Veteran
Thread Starter

posjeepxj's Avatar

Join Date: Jan 2010
Location: Indianola IOWA
Posts: 2,059
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0
Default

Name:  control arm drop 6.jpg
Views: 531
Size:  49.2 KB

Name:  control arm drop 7.jpg
Views: 527
Size:  53.2 KB

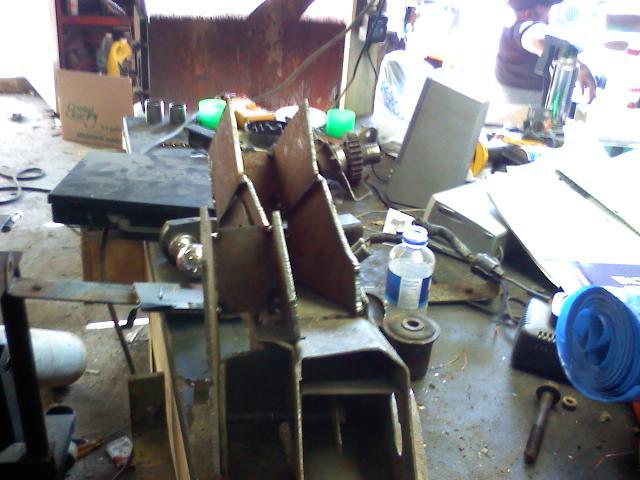

Name:  control arm drop 8.jpg
Views: 522
Size:  46.0 KB

thoughts?
Old 03-25-2010, 09:47 PM
  #3
Senior Member

Ritter4.0's Avatar

Join Date: Jan 2009
Posts: 562
Likes: 0
Received 1 Like on 1 Post
Year: 1990
Model: Cherokee
Engine: Renix 4.0L
Default

Is that 1/4" or 5/16?

Looks pretty good so far, just be sure to weld them up really good, cause they only support your jeep lol
Old 03-25-2010, 09:49 PM
  #4
CF Veteran
Thread Starter

posjeepxj's Avatar

Join Date: Jan 2010
Location: Indianola IOWA
Posts: 2,059
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0
Default

1/4. and they will be welded good, and are guna recieve some gussetry. only had 2hrs to work on them today
Old 03-25-2010, 10:38 PM
  #5
CF Veteran

xjmarc's Avatar

Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Likes: 0
Received 0 Likes on 0 Posts
Year: 97
Model: Cherokee
Engine: 4.0L
Default

You're going to want to build some sort of brace that goes back on the unitbody.
Old 03-25-2010, 10:48 PM
  #6
CF Veteran
Thread Starter

posjeepxj's Avatar

Join Date: Jan 2010
Location: Indianola IOWA
Posts: 2,059
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0
Default

havent got that far
Old 03-25-2010, 11:34 PM
  #7
CF Veteran

builtnotbought89''s Avatar

Join Date: May 2009
Location: SLC, UT
Posts: 6,328
Likes: 0
Received 1 Like on 1 Post
Year: 1989 2 door
Model: Cherokee
Engine: 4.0
Default

What XJ did you cut those "frame" rails outta for mock up? lol
Old 03-25-2010, 11:46 PM
  #8
CF Veteran
Thread Starter

posjeepxj's Avatar

Join Date: Jan 2010
Location: Indianola IOWA
Posts: 2,059
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0
Default

a 91. i think i have had 7 or 9 this year. i lose track
Old 03-25-2010, 11:52 PM
  #9
CF Veteran

builtnotbought89''s Avatar

Join Date: May 2009
Location: SLC, UT
Posts: 6,328
Likes: 0
Received 1 Like on 1 Post
Year: 1989 2 door
Model: Cherokee
Engine: 4.0
Default

Old 03-25-2010, 11:54 PM
  #10
CF Veteran
Thread Starter

posjeepxj's Avatar

Join Date: Jan 2010
Location: Indianola IOWA
Posts: 2,059
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0
Default

hopefully i will start shackle relocation boxes tomorrow so i can gain some rear droop
Old 03-26-2010, 12:59 PM
  #11
Member

jeepjerry's Avatar

Join Date: Jul 2009
Location: Genoa City, WI
Posts: 176
Likes: 0
Received 0 Likes on 0 Posts
Year: 89
Model: Cherokee
Engine: 4.0
Default

hahaha....thats awesome! just have some chunks of xj unibody laying around.....
I just cut up a 92 xj for parts and scrap.

The brackets are looking good too btw.
Old 03-26-2010, 04:10 PM
  #12
CF Veteran
Thread Starter

posjeepxj's Avatar

Join Date: Jan 2010
Location: Indianola IOWA
Posts: 2,059
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0
Default

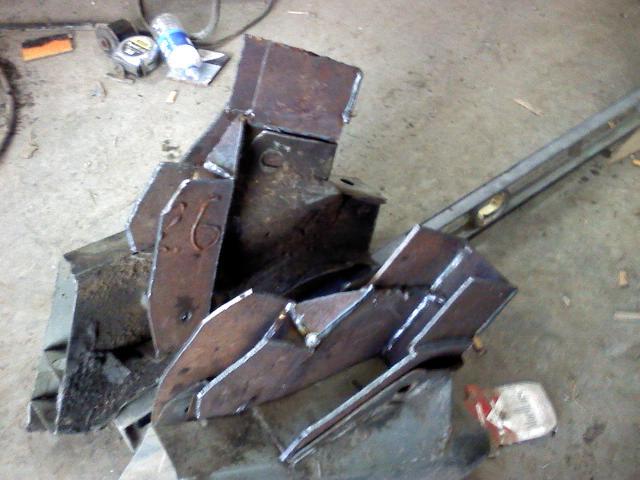

done for now. got a few more things to build before i tear into my jeep. The back braces will be built after i install these on my jeep. and they will be beefy

Name:  control arm drop 9 done.jpg
Views: 572
Size:  45.0 KB
