Roof rack advice

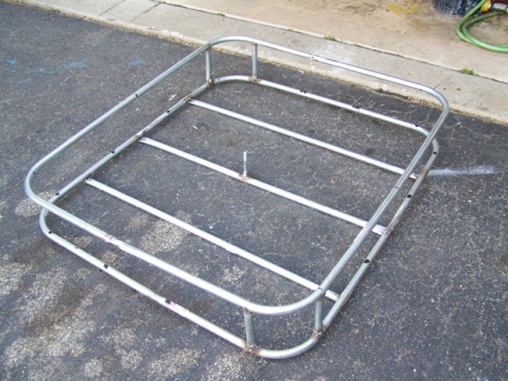

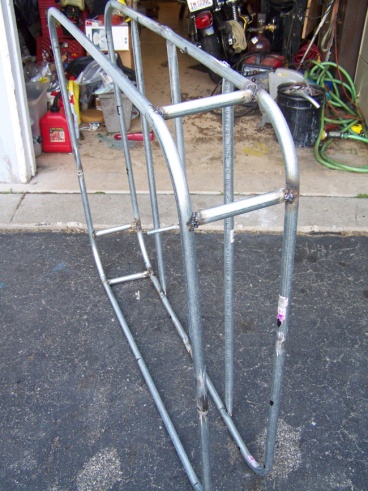

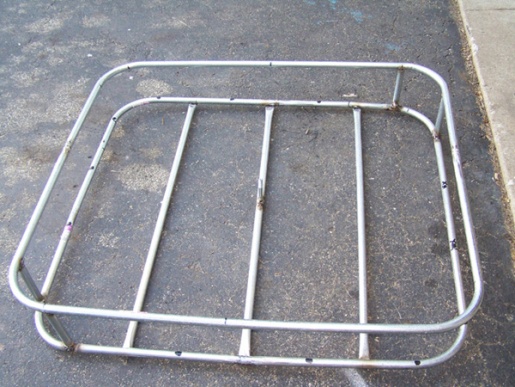

I'm getting close to done with my first roof rack. I just welded on the first vertical tubes and I put it up on the stock xj rails (as I'm planning to mount it) and it looks pretty goofy. The more I look at racks on here the more I think I made it way too tall. It's about 8.5" tall. I was thinking I wanted the rack almost as tall as the spare tire.. but now I'm thinking that was a bad idea. It would be fairly easy to cut the existing vertical supports down an inch or two. Any suggested heights?? By the way- I haven't cleaned up the welds yet! I have to get the grinder out. I'm pretty happy for my first welding job though. Thank in advance for any tips.
#3
CF Veteran
Join Date: Sep 2009
Location: West Valley
Posts: 3,612
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0
I went 6" tall which looked way too tall until I mounted the lights and put the spare up there. 8 1/2 seems pretty extreme. I dont have pics on this computer to post but you can check mine out in my albums to give you an idea.
#4
Seasoned Member
Join Date: Jun 2009
Location: Lancaster PA
Posts: 298
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Mines pretty high too. I dont know the measurment off the top of my head but ill post a pic for ya later when i get a chance. I thought mine looked goofy too till i mounted my lights. Yours looks good Im curious to see what it looks like mounted
#5
CF Veteran
Join Date: Jul 2009
Location: Keesler AFB, MS
Posts: 1,640
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998 XJ
Model: Cherokee
Engine: 4.0L
I made mine 5" tall and i like the end result. I still haven't put a spare up there yet. Just curious, why do you want your rack as tall as your spare?
#6
Member
Thread Starter
Join Date: Apr 2010
Location: Marion, IN
Posts: 150
Likes: 0
Received 2 Likes
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
I was originally going to put sheet metal or aluminum diamond plate on an angle in front so my hwy gas mileage wasn't affected as much. That would have been most effective if the slant covered the whole tire. As of now I'm just going without it.. and I'm going to take the height down to 4 or 5" for sure. Thanks for the comments guys.
#7
Honorary Moderator
Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Likes: 0
Received 13 Likes
on
11 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
I think your rack looks good! great start!!!
I have mine at 8" tall i Love the way it looks and keeps everything in.
My first one was 4'x4'x8"
Then i made one that is 6'2"x4'2"x8"
if you want pictures check my rack build
VVVV
I have mine at 8" tall i Love the way it looks and keeps everything in.
My first one was 4'x4'x8"
Then i made one that is 6'2"x4'2"x8"
if you want pictures check my rack build
VVVV
Last edited by 96_xj; 06-12-2010 at 05:45 PM. Reason: didnt wanna thread jack
Trending Topics
#8
Member
Thread Starter
Join Date: Apr 2010
Location: Marion, IN
Posts: 150
Likes: 0
Received 2 Likes
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
Thanks! I checked out your roof rack pics- that thing is badass. I think that mine looks a little odd because my xj isn't lifted. For my RWD street XJ I think the shallower rack will look better. I'll be sure to post pics when I'm done! I'm hoping to finish up today.
