Default Reciever mount tire/ gas can rack.

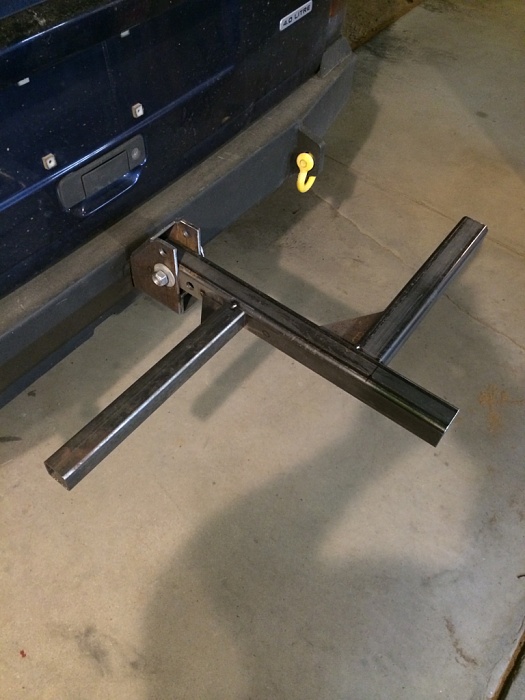

Here is a project I been working on. To mount my tire and a 5gallon gas can in the hitch on the back of my jeep. I used 2x2 tube stock. Made a lot of measurements and did a lot of test fitting to get it to clear the back hatch. So far everything things works nicely. Added some gussets to strengthen it. Here is my progress as of today.

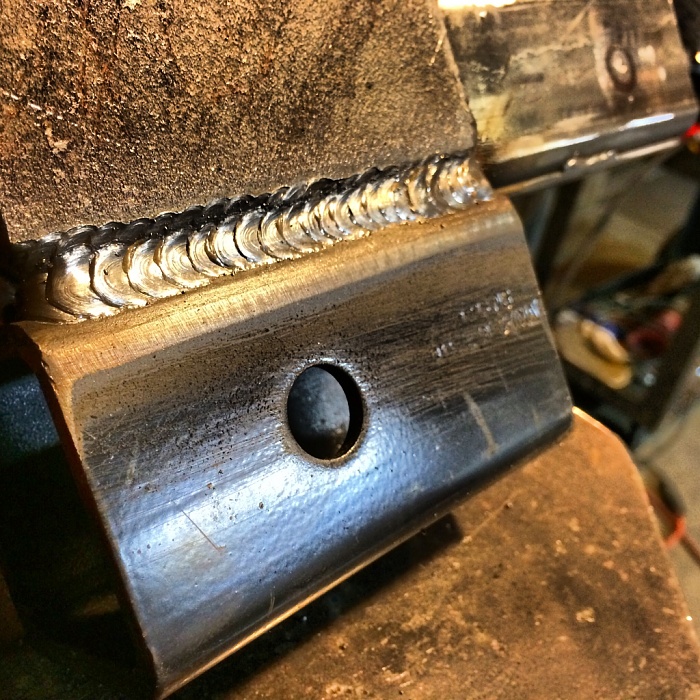

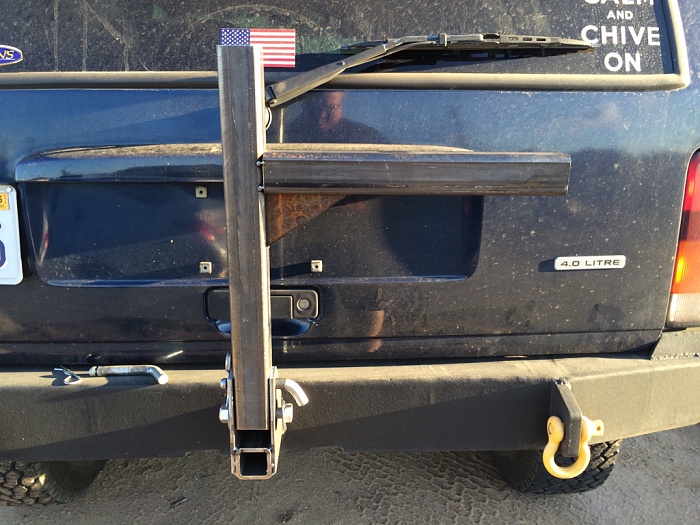

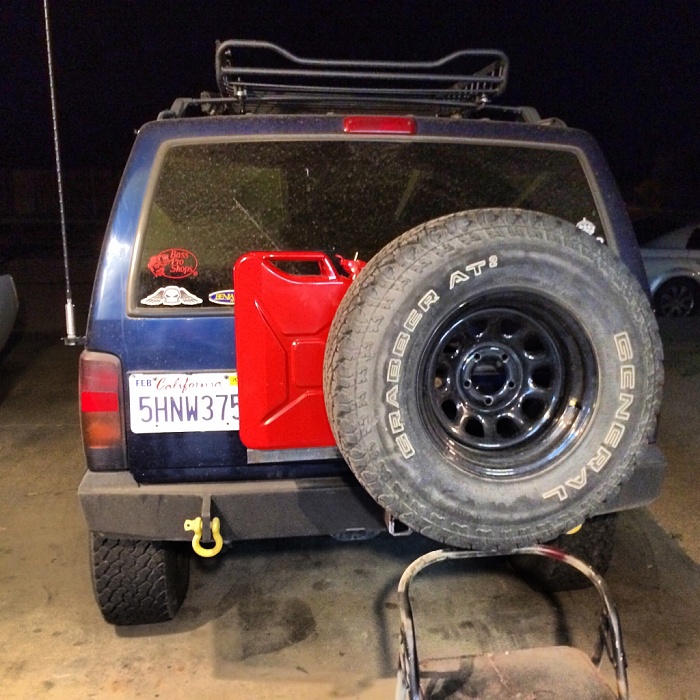

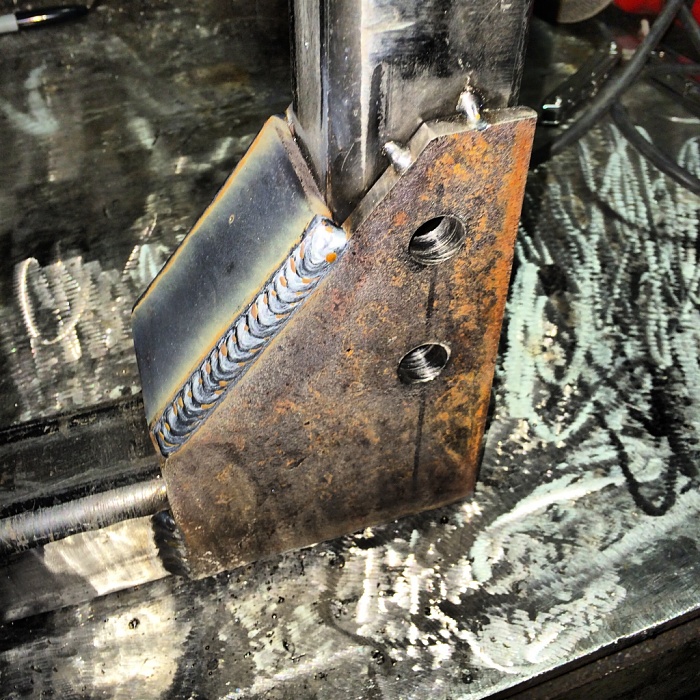

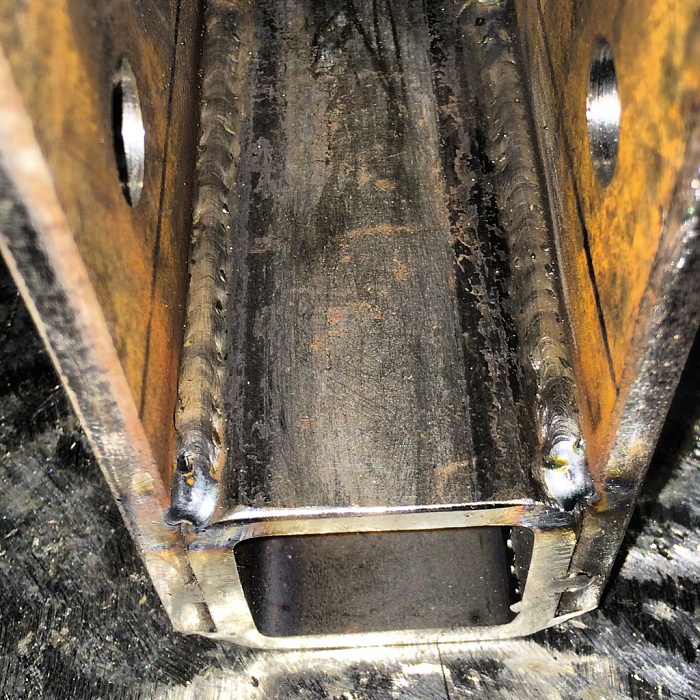

Attached Thumbnails Reciever mount tire/ gas can rack.-image-355278533.jpg   Reciever mount tire/ gas can rack.-image-1839518765.jpg   Reciever mount tire/ gas can rack.-image-1651692453.jpg   Reciever mount tire/ gas can rack.-image-1915869394.jpg   Reciever mount tire/ gas can rack.-image-894186152.jpg

Reciever mount tire/ gas can rack.-image-2149608787.jpg   Reciever mount tire/ gas can rack.-image-594211296.jpg   Reciever mount tire/ gas can rack.-image-2895405376.jpg
dirt_biker_guy is offline
Old 04-08-2014, 06:20 PM
  #2
Newbie

Join Date: Jan 2011
Location: Little Rock, Ar
Posts: 7
Model: Cherokee
Default

Looks like its gonna be very nice. I want something similar to that. oh and KCCO!!
gluegrubber is offline
Old 04-08-2014, 09:16 PM
  #3
Newbie

Join Date: Apr 2014
Location: South Pittsburg, TN
Posts: 12
Year: 1998
Model: Grand Cherokee
Engine: 4.0L AMC Power Tech I6 185 hp
Default

KCCO!!!!
TennesseeZJ is offline
Old 04-08-2014, 09:18 PM
  #4
Member
Thread Starter

dirt_biker_guy's Avatar

Join Date: Mar 2012
Location: Ridgecrest Ca.
Posts: 202
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

Chive on bro's!
dirt_biker_guy is offline
Old 04-10-2014, 09:42 PM
  #5
Member
Thread Starter

dirt_biker_guy's Avatar

Join Date: Mar 2012
Location: Ridgecrest Ca.
Posts: 202
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

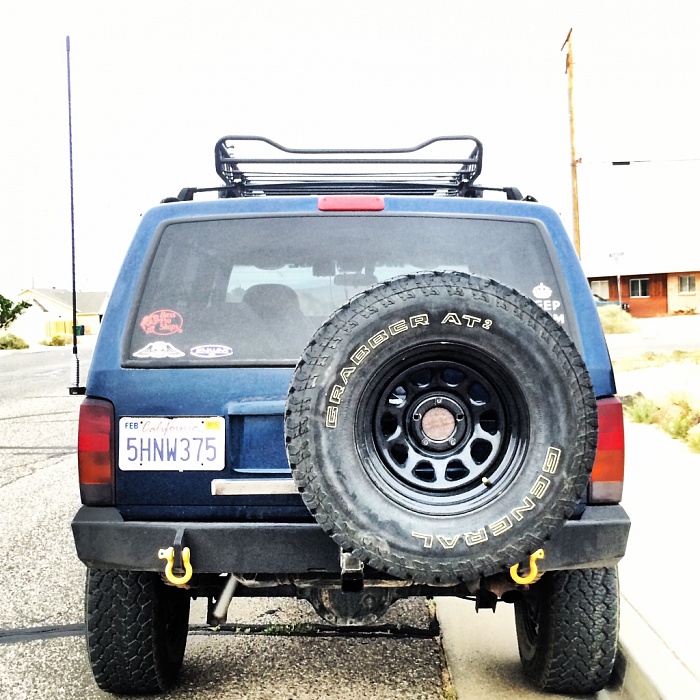

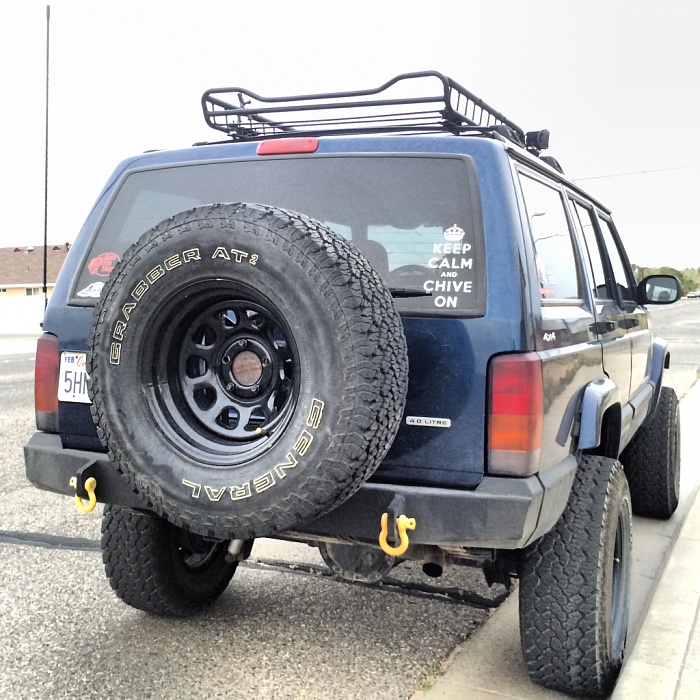

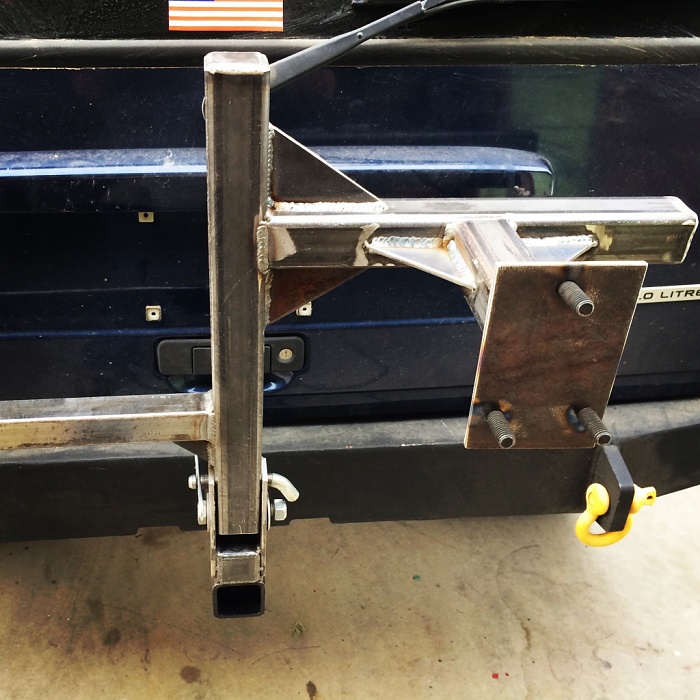

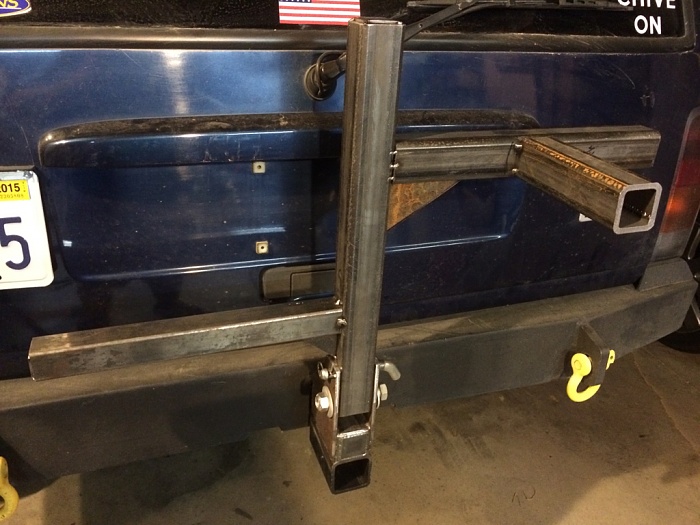

Progress so far. Got the tire plate mounted.

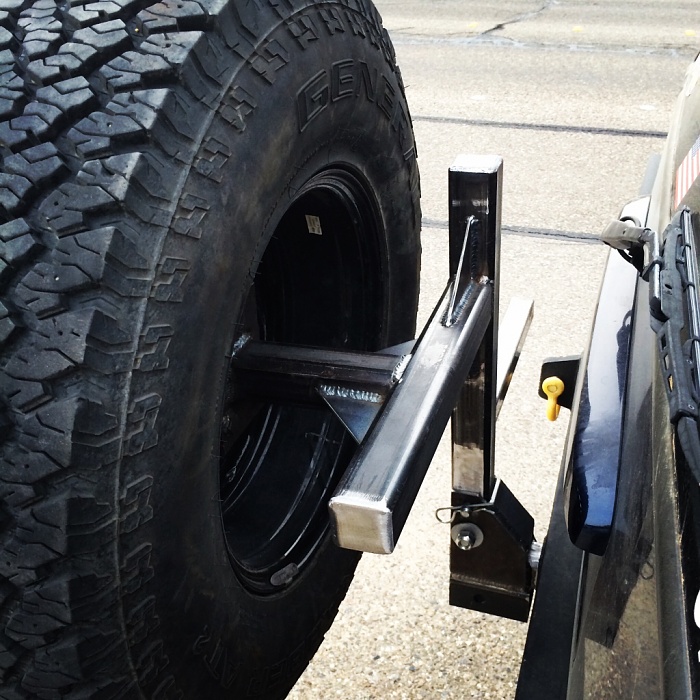

Attached Thumbnails Reciever mount tire/ gas can rack.-image-1103617837.jpg   Reciever mount tire/ gas can rack.-image-4071119640.jpg   Reciever mount tire/ gas can rack.-image-1258928728.jpg   Reciever mount tire/ gas can rack.-image-911997624.jpg
dirt_biker_guy is offline
Old 04-11-2014, 08:42 AM
  #6
Seasoned Member

typicalsundayxj's Avatar

Join Date: Dec 2011
Location: Southern Maine
Posts: 437
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

this is very intresting! i like how simplified it is def supscribed! good work
typicalsundayxj is offline
Old 04-11-2014, 09:35 AM
  #7
Member
Thread Starter

dirt_biker_guy's Avatar

Join Date: Mar 2012
Location: Ridgecrest Ca.
Posts: 202
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by typicalsundayxj View Post
this is very intresting! i like how simplified it is def supscribed! good work
Thanks! I looked and looked, couldn't find anything like it. I'm just happy I can carry gas and the tire down low instead of on my roof rack.
dirt_biker_guy is offline
Old 04-11-2014, 09:38 AM
  #8
Member
Thread Starter

dirt_biker_guy's Avatar

Join Date: Mar 2012
Location: Ridgecrest Ca.
Posts: 202
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

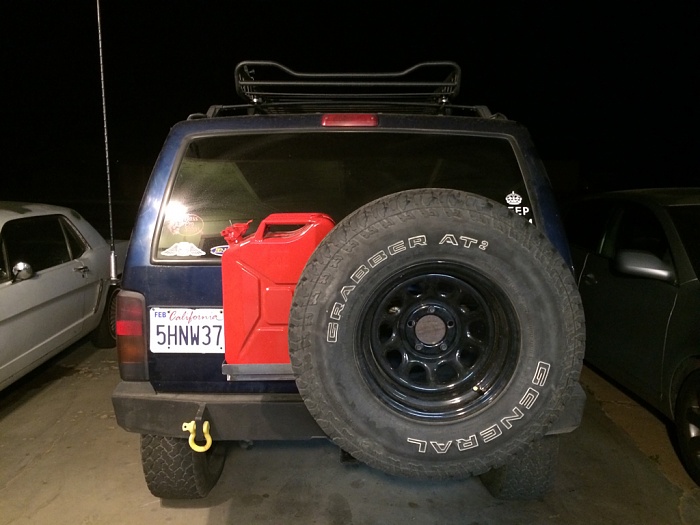

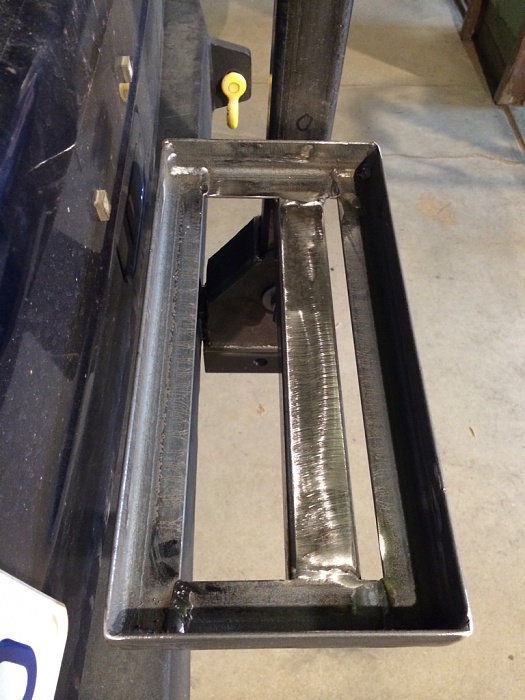

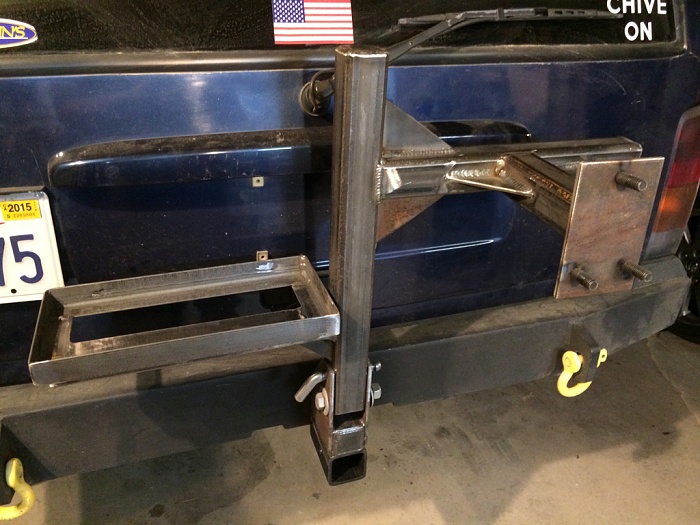

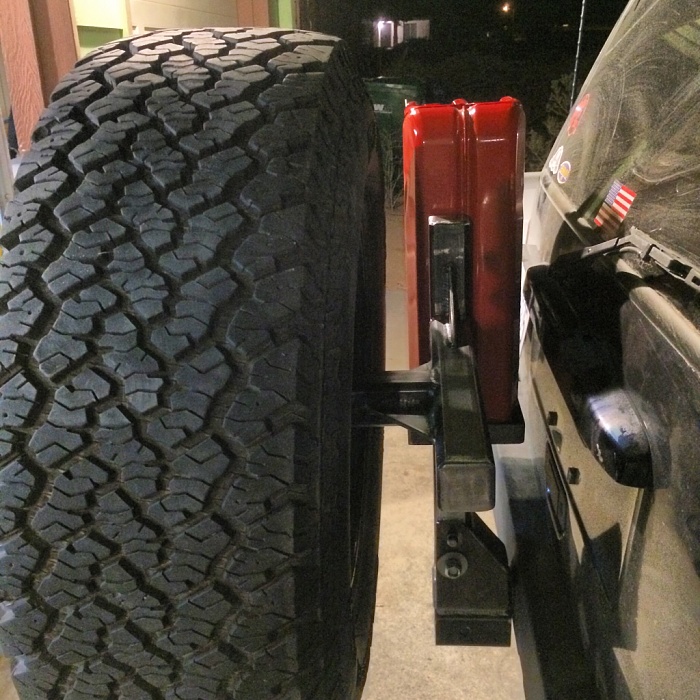

And it's about done. Just have to figure out if I wanna add anything else to it. Then powder coat it.

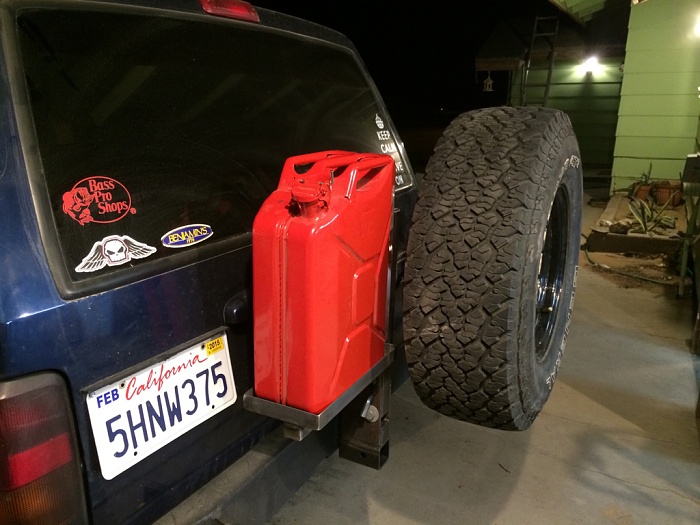

Attached Thumbnails Reciever mount tire/ gas can rack.-image-3827118242.jpg   Reciever mount tire/ gas can rack.-image-2770121734.jpg   Reciever mount tire/ gas can rack.-image-233608939.jpg   Reciever mount tire/ gas can rack.-image-3436068379.jpg   Reciever mount tire/ gas can rack.-image-4120695873.jpg

dirt_biker_guy is offline
Old 04-11-2014, 11:40 AM
  #9
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34 25' 35.67", -81 21' 12.04"
Posts: 15,016
Year: 1993
Engine: 4.0
Default

I like it. I think I would rather have the tire a smidge higher and closer to the hatch but if you stay on fairly flat ground and don't do anything extreme I'm sure it'll be just fine there.
Lowrange2 is offline
Old 04-11-2014, 11:51 AM
  #10
Member
Thread Starter

dirt_biker_guy's Avatar

Join Date: Mar 2012
Location: Ridgecrest Ca.
Posts: 202
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by Lowrange2 View Post
I like it. I think I would rather have the tire a smidge higher and closer to the hatch but if you stay on fairly flat ground and don't do anything extreme I'm sure it'll be just fine there.
I had to space it out to fit the gas can behind. Otherwise the tire and can side by side woulda have blocked my lights and plate. This is my second rack I've made and the fist did just fine offroad. It's been through some hairy trails. No issues thus far. We shall see soon though when I take it back out again.
dirt_biker_guy is offline
Old 04-12-2014, 09:21 PM
  #11
Newbie

Join Date: Mar 2014
Posts: 14
Default

I like the idea of the gas can. I think I will use your idea and put two cans side by side and put my license plate in front of the tire.
shamtheguy is offline
Old 04-12-2014, 09:43 PM
  #12
Member
Thread Starter

dirt_biker_guy's Avatar

Join Date: Mar 2012
Location: Ridgecrest Ca.
Posts: 202
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by shamtheguy View Post
I like the idea of the gas can. I think I will use your idea and put two cans side by side and put my license plate in front of the tire.
Awesome. I'm already thinking about adding another spot for another can. I have shorty cans so it would work perfect.

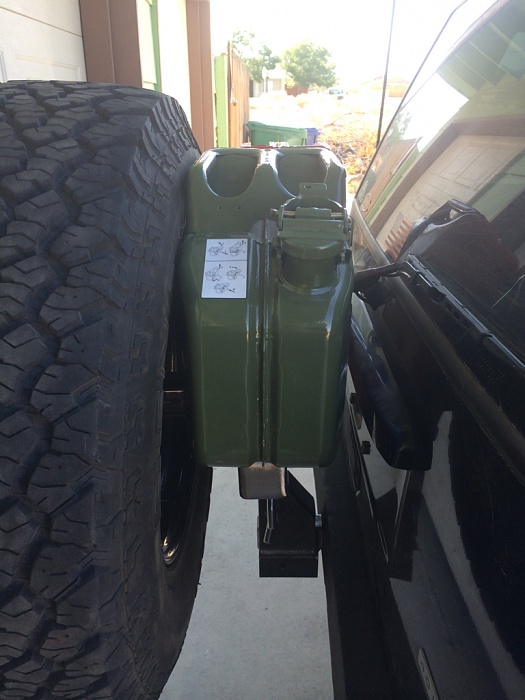

Attached Thumbnails Reciever mount tire/ gas can rack.-image-4003037778.jpg
dirt_biker_guy is offline
Old 04-12-2014, 09:44 PM
  #13
Member
Thread Starter

dirt_biker_guy's Avatar

Join Date: Mar 2012
Location: Ridgecrest Ca.
Posts: 202
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

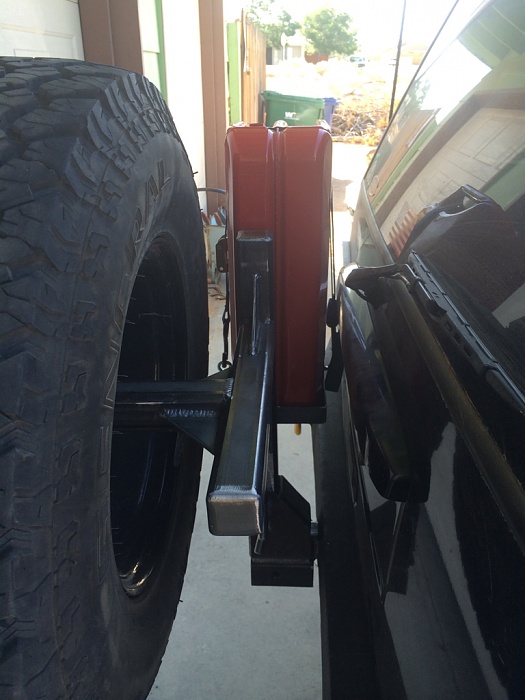

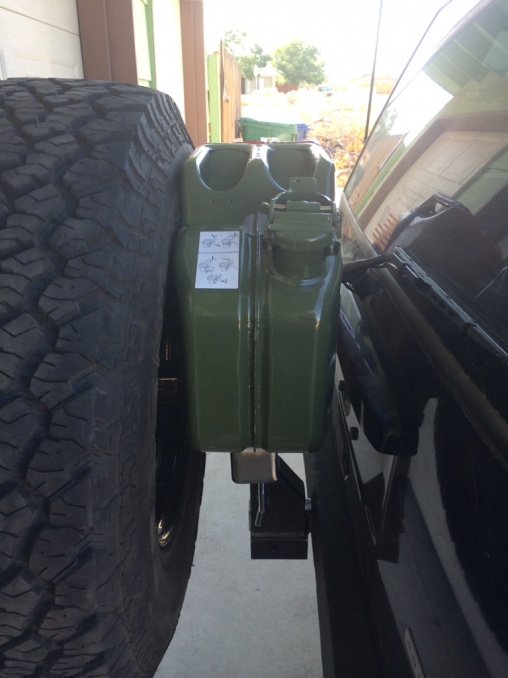

It will fit perfect right in between.
Attached Thumbnails Reciever mount tire/ gas can rack.-image-656927246.jpg
dirt_biker_guy is offline
Old 04-17-2014, 12:51 AM
  #14
Seasoned Member

Join Date: Feb 2011
Location: Arizona
Posts: 315
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Great job, I like it alot! Its way better than spending a $1000 for a bumper and tire carrier. How much do you have in the bumper and what brand? You could also put a bracket on the bumper for your license plate.
xjallseasons is offline
Old 04-17-2014, 07:54 AM
  #15
Member
Thread Starter

dirt_biker_guy's Avatar

Join Date: Mar 2012
Location: Ridgecrest Ca.
Posts: 202
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by xjallseasons View Post
Great job, I like it alot! Its way better than spending a $1000 for a bumper and tire carrier. How much do you have in the bumper and what brand? You could also put a bracket on the bumper for your license plate.
Thanks. I'm pretty happy with it. The bumper is a jcroffroad do it your self kit. I wanna say it was around $280. I drilled into the back hatch so I'll probably leave the plate where it's at for a while. Lol
dirt_biker_guy is offline
