previous owner "fixed" the rust. haha

Old 08-15-2013, 01:08 PM
  #1
Junior Member
Thread Starter

Join Date: Sep 2010
Location: Kernersville, NC
Posts: 84
Year: 1994
Model: Cherokee
Engine: 4.0l
Default previous owner "fixed" the rust. haha

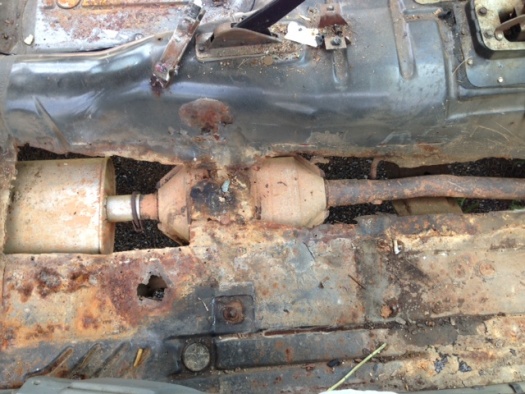

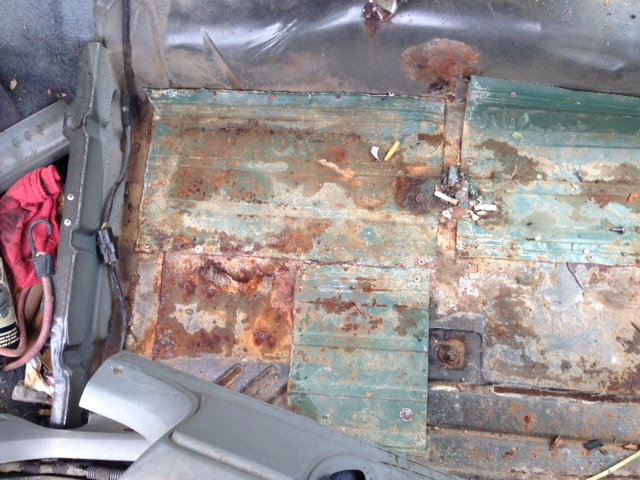

i knew it was there, just didnt know to what extent till now. he did nothing to stop the rust just cover it up. didn't even seal them so i was still getting water in.
Attached Thumbnails previous owner "fixed" the rust. haha-floor1.jpg   previous owner "fixed" the rust. haha-floor3.jpg   previous owner "fixed" the rust. haha-floor2.jpg
bigfooted12 is offline
Old 08-15-2013, 06:16 PM
  #2
CF Veteran

DJKnightmare's Avatar

Join Date: Dec 2008
Location: Philadelphia, Pa
Posts: 1,195
Year: 1989
Model: Cherokee
Engine: 4.0 6cyl
Default

*headdesk* The amount of stupidity in this world astounds me. How could anyone think that was a good idea? At least you can do it right and not have to worry about any of the PO "fixes" holding.
DJKnightmare is offline
Old 08-15-2013, 07:17 PM
  #3
Senior Member

Gary Briggs's Avatar

Join Date: Jan 2011
Location: Escalon, Ca
Posts: 842
Year: 1996
Model: Cherokee
Engine: 4litre
Default

Seems Legit!
Gary Briggs is offline
Old 08-15-2013, 07:26 PM
  #4
Member

thewhiteknight02's Avatar

Join Date: Dec 2012
Posts: 122
Default

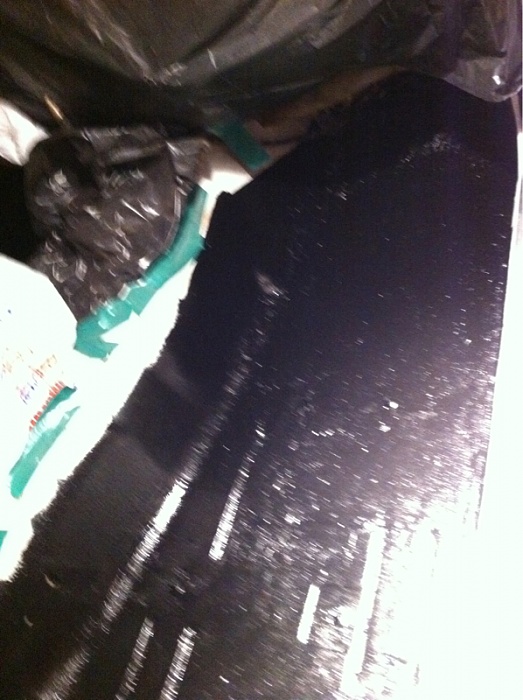

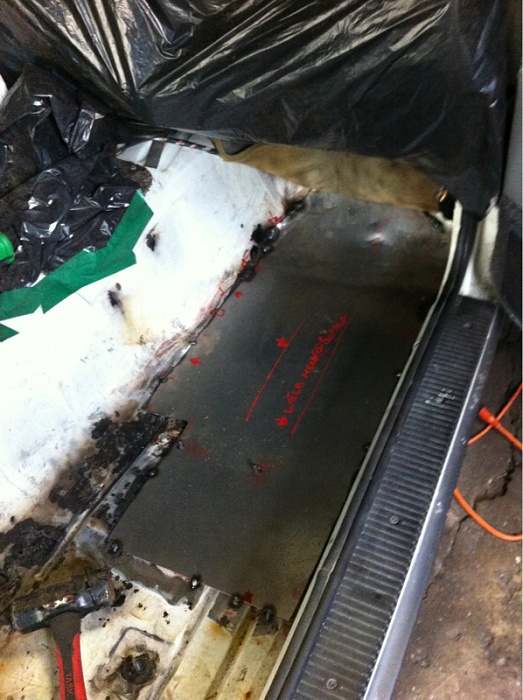

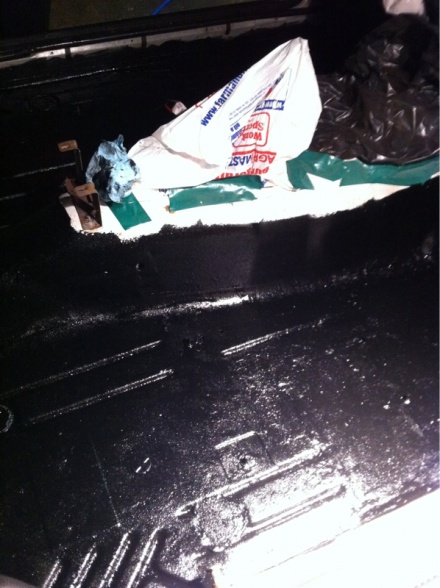

I did mine recently. It was almost the same. I got some 18ga sheets the whole length. Little cutting, trimming, hammering and welded them in. Then I fiberglassed the seams inside and used some black urethane sealer on the bottom. Also used rust inhibitor and primer everywhere. Ground off all rust. Three coats of bed liner on the inside undercoating on the bottom. Solid!

Even pressure washed the carpet while it was out.

Keep us posted.
Attached Thumbnails previous owner "fixed" the rust. haha-image-2814137402.jpg   previous owner "fixed" the rust. haha-image-2944567212.jpg   previous owner "fixed" the rust. haha-image-361375838.jpg
thewhiteknight02 is offline
Old 08-16-2013, 08:33 AM
  #5
Member

19964.0's Avatar

Join Date: Jun 2013
Location: middlebury vt
Posts: 107
Year: 1996
Model: Cherokee
Engine: 4.0 6cyl
Default

I need to fix mine in the back found out last week the back hatch area is all rusted out and the PO fixed it with rolled out beer cans and super thin metal glued the cans down with some kinda crap and loosely screwed the sheet metal down…
19964.0 is offline
Old 08-16-2013, 09:50 AM
  #6
Junior Member
Thread Starter

Join Date: Sep 2010
Location: Kernersville, NC
Posts: 84
Year: 1994
Model: Cherokee
Engine: 4.0l
Default

Where do y'all get you metal from? And what are you paying? This is a first for me to get into. I don't have a problem shaping it and prepping the floor. I gotta find a welder I can use.
bigfooted12 is offline
Old 08-16-2013, 11:49 AM
  #7
Member

thewhiteknight02's Avatar

Join Date: Dec 2012
Posts: 122
Default

I get my metal from speedymetals.com. They are located near my work in Wisconsin. Turned out great. From the bottom, you can barely tell there was a repair. Looks good.

They cut my sheets to the rough size of my cut out floors. Rectangular shaped.

They were 15$ each pc. Email them for a custom quote. Great service.

I had a C-10 with no welder, bad floors. Used rivets and heavier fiberglass. Same coatings as jeep.
thewhiteknight02 is offline
Old 08-19-2013, 01:58 PM
  #8
Junior Member
Thread Starter

Join Date: Sep 2010
Location: Kernersville, NC
Posts: 84
Year: 1994
Model: Cherokee
Engine: 4.0l
Default

What gauge sheet metal do I need to get?
bigfooted12 is offline
Old 08-19-2013, 02:55 PM
  #9
Member

thewhiteknight02's Avatar

Join Date: Dec 2012
Posts: 122
Default

I used 18 ga.
thewhiteknight02 is offline
Old 08-19-2013, 03:15 PM
  #10
Junior Member
Thread Starter

Join Date: Sep 2010
Location: Kernersville, NC
Posts: 84
Year: 1994
Model: Cherokee
Engine: 4.0l
Default

Ok thanks, anything special or just 18ga. Sheet metal?
bigfooted12 is offline
Old 08-20-2013, 12:08 PM
  #11
Member

thewhiteknight02's Avatar

Join Date: Dec 2012
Posts: 122
Default

Just the metal.
thewhiteknight02 is offline
Old 08-21-2013, 06:40 PM
  #12
Junior Member
Thread Starter

Join Date: Sep 2010
Location: Kernersville, NC
Posts: 84
Year: 1994
Model: Cherokee
Engine: 4.0l
Default

Going to buy some sheet metal at lowes, going with 16ga, they don't carry 18. Bigger is always better lol
bigfooted12 is offline
Old 08-21-2013, 07:15 PM
  #13
Member

thewhiteknight02's Avatar

Join Date: Dec 2012
Posts: 122
Default

That's what she said. Lol
thewhiteknight02 is offline
Old 08-22-2013, 01:11 PM
  #14
Newbie

Join Date: Aug 2013
Posts: 13
Year: 1996
Model: Cherokee
Default

I want to do this exact same project for my 96. I have a huge hole (1 x 1 foot probably) by my drivers side seat so I'm sure most of the floor is toast...

The plan is to cleanly pull the carpet, assess the damage, and start grinding/cutting. Then I will fab some 16gauge sheet to fill the gaps, weld/rivet in, and coat it with something like Hercules bed liner or similar. I need to get my dad to commit to giving me his car for a week or so though so I can get this accomplished, along with bribing my buddy who can weld lol.
ohno40 is offline
Old 08-22-2013, 03:18 PM
  #15
Senior Member

1999 xj's Avatar

Join Date: Mar 2013
Location: Edgewood
Posts: 724
Year: 1999
Model: Cherokee
Engine: 4.0, bbk 62mm throttle body
Default

It'll buff out.
1999 xj is offline
