"MRA Off Road" Sliders

Old 09-18-2014, 06:07 PM
  #1
CF Veteran
Thread Starter

Marks2000XJ's Avatar

Join Date: Feb 2011
Location: Georgia
Posts: 1,046
Year: 1998
Model: Cherokee
Engine: 4.0 Inline 6
Default "MRA Off Road" Sliders

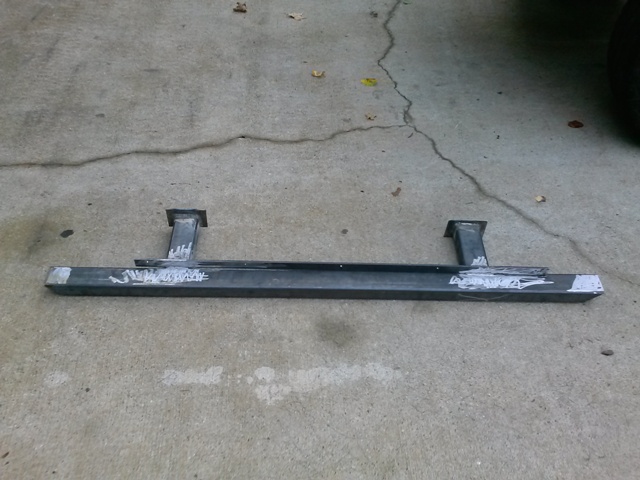

Made out of 3/16th steel 2" x 3"

"MRA Off Road" Sliders-cam00795.jpg

"MRA Off Road" Sliders-cam00798.jpg
Marks2000XJ is offline
Old 09-18-2014, 06:08 PM
  #2
CF Veteran
Thread Starter

Marks2000XJ's Avatar

Join Date: Feb 2011
Location: Georgia
Posts: 1,046
Year: 1998
Model: Cherokee
Engine: 4.0 Inline 6
Default

Test fitting

"MRA Off Road" Sliders-cam00800.jpg

Name:  CAM00801.jpg
Views: 402
Size:  97.6 KB
Marks2000XJ is offline
Old 09-18-2014, 06:09 PM
  #3
CF Veteran
Thread Starter

Marks2000XJ's Avatar

Join Date: Feb 2011
Location: Georgia
Posts: 1,046
Year: 1998
Model: Cherokee
Engine: 4.0 Inline 6
Default

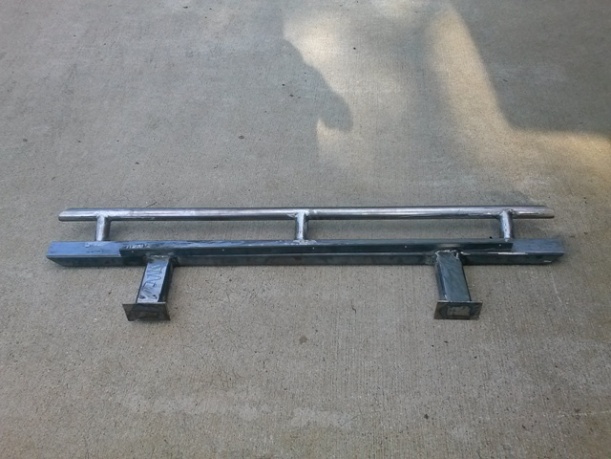

Adding the 1.75" tubing rails.
Attached Thumbnails "MRA Off Road" Sliders-cam00832.jpg   "MRA Off Road" Sliders-cam00833.jpg
Marks2000XJ is offline
Old 09-18-2014, 06:11 PM
  #4
CF Veteran
Thread Starter

Marks2000XJ's Avatar

Join Date: Feb 2011
Location: Georgia
Posts: 1,046
Year: 1998
Model: Cherokee
Engine: 4.0 Inline 6
Default

Will post rest of pics when they are painted and installed. Hopefully in the next week. I need them finished for the GATRfest at Gulches in October.
Marks2000XJ is offline
Old 09-18-2014, 06:12 PM
  #5
Seasoned Member

Join Date: Jun 2011
Location: San Antonio
Posts: 489
Year: 1992
Model: Cherokee
Engine: 6 Cyl
Default

I want to make something similar and want to see how yours look once mounted
gettin_dirty_with_ruby is offline
Old 09-18-2014, 06:18 PM
  #6
CF Veteran
Thread Starter

Marks2000XJ's Avatar

Join Date: Feb 2011
Location: Georgia
Posts: 1,046
Year: 1998
Model: Cherokee
Engine: 4.0 Inline 6
Default

Originally Posted by gettin_dirty_with_ruby View Post
I want to make something similar and want to see how yours look once mounted
They are similar to JCR's so you can check out their website and get an idea of what they look like mounted.

I would buy them but I can't afford them so I had to make my own with a few mods.
Marks2000XJ is offline
Old 10-13-2014, 08:01 AM
  #7
CF Veteran
Thread Starter

Marks2000XJ's Avatar

Join Date: Feb 2011
Location: Georgia
Posts: 1,046
Year: 1998
Model: Cherokee
Engine: 4.0 Inline 6
Default Primed and test fitting

Here they are primed and test fitted one last time. Also marked and pre-drilled all the holes.

In case anyone was wondering, the sliders do not stick out past the tires. You can see in the one photo here they do not.

"MRA Off Road" Sliders-cam00842.jpg

"MRA Off Road" Sliders-cam00841.jpg
Marks2000XJ is offline
Old 10-13-2014, 08:06 AM
  #8
CF Veteran
Thread Starter

Marks2000XJ's Avatar

Join Date: Feb 2011
Location: Georgia
Posts: 1,046
Year: 1998
Model: Cherokee
Engine: 4.0 Inline 6
Default Finished, painted and installed

Installed. I used the same hardware and mounting places as JCR. 5 bolts in the pinch seam and 8 bolts in the frame per side. They seem to be mounted pretty solid. They got beat on a little the past weekend and held up just fine.

I used Rustoleum Bedliner paint to paint them. It matches my lower door panels that I painted with bedliner earlier. Plus when you step up on the sliders, you don't have to worry about your feet slipping off. The grip is good.

"MRA Off Road" Sliders-cam00890.jpg

"MRA Off Road" Sliders-cam00889.jpg
Marks2000XJ is offline
Old 10-13-2014, 08:08 AM
  #9
CF Veteran
Thread Starter

Marks2000XJ's Avatar

Join Date: Feb 2011
Location: Georgia
Posts: 1,046
Year: 1998
Model: Cherokee
Engine: 4.0 Inline 6
Default

"MRA Off Road" Sliders-cam00889.jpg
Marks2000XJ is offline
Old 10-13-2014, 11:03 AM
  #10
CF Veteran

SatiricalHen's Avatar

Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,397
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

What front fender flares do you have?
SatiricalHen is offline
Old 10-13-2014, 02:52 PM
  #11
CF Veteran
Thread Starter

Marks2000XJ's Avatar

Join Date: Feb 2011
Location: Georgia
Posts: 1,046
Year: 1998
Model: Cherokee
Engine: 4.0 Inline 6
Default

Originally Posted by SatiricalHen View Post
What front fender flares do you have?
They are just the stock flares. I trimmed the front fenders and moved the flares up.
Marks2000XJ is offline
Old 10-13-2014, 03:39 PM
  #12
CF Veteran

JerrytheJeep's Avatar

Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Year: 89
Model: Cherokee
Engine: 4.0 I6
Default

I like em, they're different. Nice work.
JerrytheJeep is offline
Old 10-13-2014, 05:31 PM
  #13
CF Veteran

SatiricalHen's Avatar

Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,397
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

How much did it cost for you to make them?
SatiricalHen is offline
Old 10-13-2014, 07:06 PM
  #14
CF Veteran

xjmarc's Avatar

Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Year: 97
Model: Cherokee
Engine: 4.0L
Default

Only complaint I have is the way you attached the outter bar. Most you see have the ends attach and not have an open gap. The reason is because you can get caught on things on the trail like small trees and such. I had a set on my yota that were solid front and rear and had a tree pop up through the middle and had to use an ax to get unstuck. Other than that they look nice.
xjmarc is offline
Old 10-13-2014, 08:48 PM
  #15
Seasoned Member

Join Date: Jun 2011
Location: San Antonio
Posts: 489
Year: 1992
Model: Cherokee
Engine: 6 Cyl
Default

I like them
gettin_dirty_with_ruby is offline
