Default Home made low pro roof rack

Hello, I figured Id share my roof rack I completed a couple weeks ago. I made my own rack 2 winters ago out of square stock, but it ended up being way too heavy and too bulky. I was proud of it at the time but I knew I could do better. I started his rack about 2 months ago and worked on it when I had a chance after work (my boss let me keep it in the shop and I used his welder).

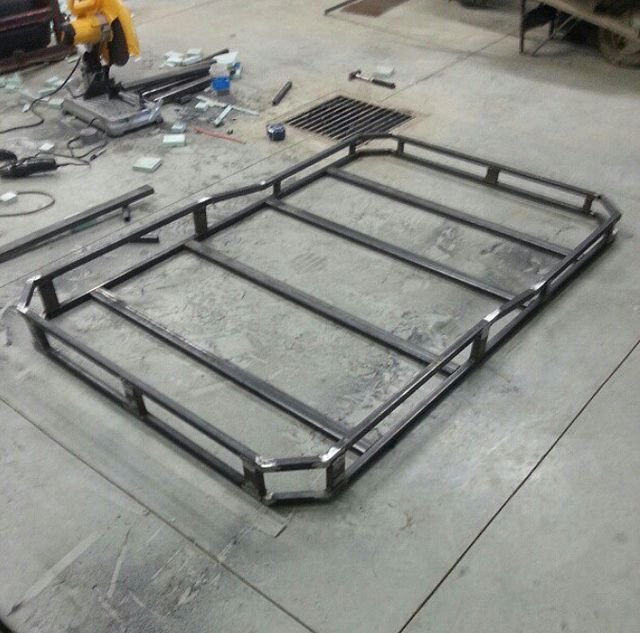

Here is the old rack I made. I used JCR's gutter mounts to attach to my XJ:

















Unruinable is offline
Old 12-13-2014, 10:50 AM
  #2
Newbie
Thread Starter

Unruinable's Avatar

Join Date: Oct 2012
Location: Ohio
Posts: 20
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

As you can see that old rack is ok for some things, but I needed more of a low profile and less weight, plus I plan on getting a Roof Top Tent in the future so I needed it to work with that.

I decided on using 1 1/4 120 wall tube steel. My boss and I are friends with many of the local business owners and he hooked me up with a guy that bent my 90's while we unloaded a bit of firewood from his pickup. I thought that was a pretty good trade! I was so excited to get started on this new rack that I forgot to take more pics... so hopefully the ones I do have will make due.
Unruinable is offline
Old 12-13-2014, 10:59 AM
  #3
Newbie
Thread Starter

Unruinable's Avatar

Join Date: Oct 2012
Location: Ohio
Posts: 20
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

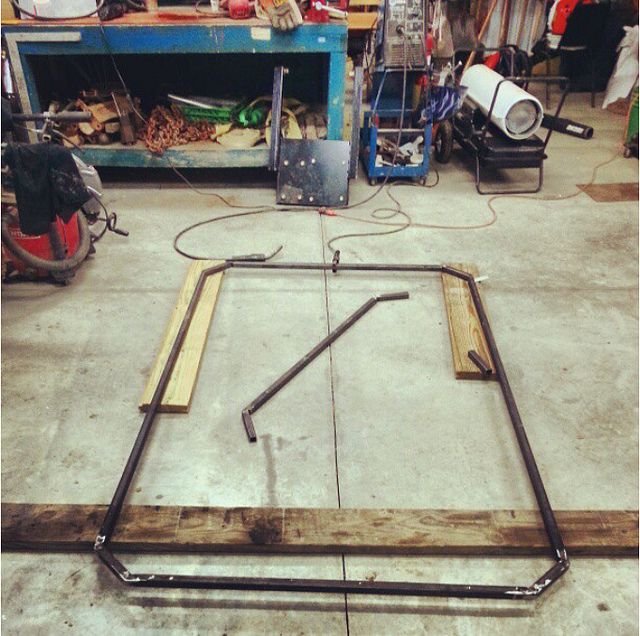

Heres where I started taking pics. This is after I welded all my 90's together. I used 1" tubing about 8 inches long where each section met, it fit perfectly inside my inch and quarter tubing and made it nice and sturdy.








Unruinable is offline
Old 12-13-2014, 11:25 AM
  #4
Newbie
Thread Starter

Unruinable's Avatar

Join Date: Oct 2012
Location: Ohio
Posts: 20
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

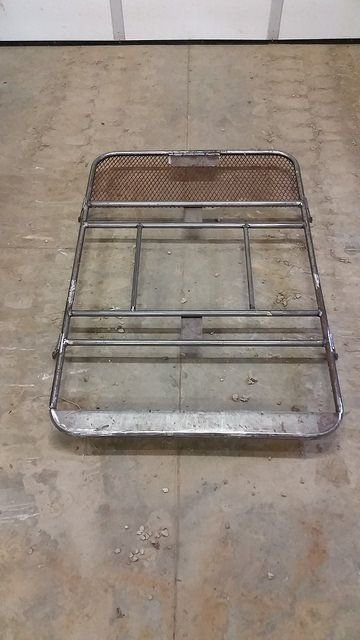

I added 1" trailer gate mesh on the back section, I wanted it to be a little bit more "open" because I knew of I had a tire up there it'd be easier to clean off if the rack got too muddy. I finished the rest of the rack (front section) off with smaller diamond flat mesh which was smaller and also very smooth.

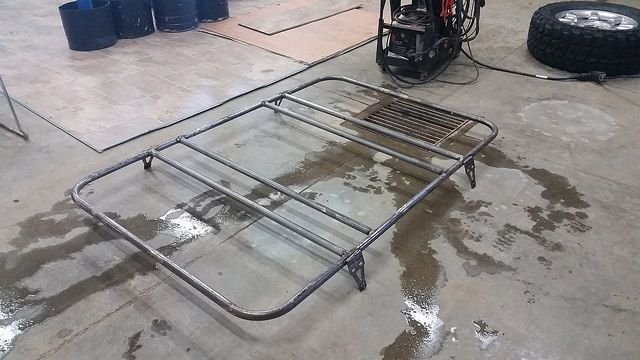

Here I was test fitting everything




Unruinable is offline
Old 12-13-2014, 11:48 AM
  #5
Newbie
Thread Starter

Unruinable's Avatar

Join Date: Oct 2012
Location: Ohio
Posts: 20
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

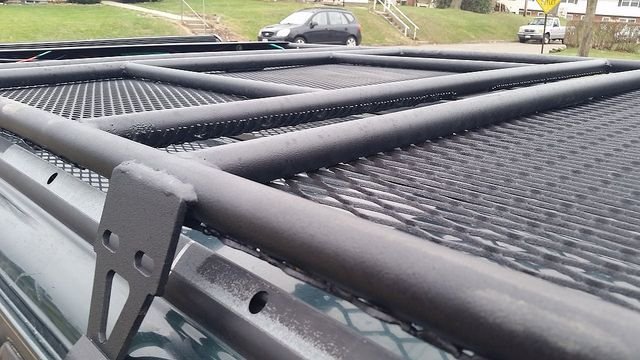

I ended up coating it with Rustoleum primer then adding a few coats of Dupli-Color Truck Bed Coating over that. Finished it off with my LED lights (and 2 halogens) and Im very pleased!







Unruinable is offline
Old 12-13-2014, 12:04 PM
  #6
Member

JeepTrick68's Avatar

Join Date: Nov 2013
Location: Pennsylvania
Posts: 235
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0, 60mm TB, 784's
Default

Both racks look great! One day I'll tackle one. I like the Camel Trophy style myself, but I can see a lot of advantages of your new lo-pro one. Great job!
JeepTrick68 is offline
Old 12-13-2014, 12:14 PM
  #7
Newbie
Thread Starter

Unruinable's Avatar

Join Date: Oct 2012
Location: Ohio
Posts: 20
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by JeepTrick68 View Post
Both racks look great! One day I'll tackle one. I like the Camel Trophy style myself, but I can see a lot of advantages of your new lo-pro one. Great job!
Thanks. I still have the old rack, well half of it at least. I chopped the top half off of it and flipped it around to make it smaller. Its on my younger brothers XJ now. I really liked the Gobi stealth rack and thats what I was originally going to do with mine but last minute decided to keep it even more simple.
Unruinable is offline
Old 12-14-2014, 05:01 AM
  #8
Newbie

Join Date: Oct 2014
Location: South Carolina
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

so you used 1" round stock, correct? Were you able to find that locally or did you order it? Can I ask what your total cost was?
Looks great by the way!

Last edited by jw13; 12-14-2014 at 05:02 AM. Reason: added comment
jw13 is offline
Old 12-14-2014, 08:57 AM
  #9
Newbie
Thread Starter

Unruinable's Avatar

Join Date: Oct 2012
Location: Ohio
Posts: 20
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by jw13 View Post
so you used 1" round stock, correct? Were you able to find that locally or did you order it? Can I ask what your total cost was?
Looks great by the way!
Hey thanks!

I used 1.25" x .120 wall tubing round stock. I used 1" to connect the sections together, basically I had two "staple" shapes that were 1.25" joined to make a rectangle, where they joined I cut an 8" piece of 1 inch and slid it inside the 1.25" as a stiffener (4 inches to each section). Any of the flat stock you see is all .120 wall. I put those pieces in for future mounting points (tire, jack, etc.).

I ordered my steel locally and had maybe $100 roughly in steel used, plus $40 for the JCR gutter mounts. Add welding wire and paint it was all built for less than $200. Overall dimensions were 48" wide x 72" long.
Unruinable is offline
Old 12-15-2014, 06:20 AM
  #10
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

nice work
HS00XJ is offline
Old 12-15-2014, 11:12 AM
  #11
Member

chademinent's Avatar

Join Date: Aug 2013
Location: Missoula MT
Posts: 179
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0, K&N, 99 Intake, MSD Coil, Accel plugs, wires rotor and cap.
Default

Love it
chademinent is offline
Old 12-15-2014, 11:35 AM
  #12
CF Veteran

sluggy's Avatar

Join Date: Feb 2009
Location: birmingham,england.
Posts: 1,983
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 ltr
Default

some nice work there
sluggy is offline
Old 12-15-2014, 11:54 AM
  #13
Senior Member

kickice24's Avatar

Join Date: Jan 2012
Location: Port Richey, FL
Posts: 648
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Engine: 4.0
Default

Thanks for the inspiration. I bought 48' of the square tubing like yours, but hadn't decided on a design. It was going to be more simple, but I like your first one so much, I'm going to go that route.
kickice24 is offline
Old 12-15-2014, 02:59 PM
  #14
CF Veteran

PocketsEmpty's Avatar

Join Date: Dec 2012
Location: York, PA
Posts: 4,169
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Looks great! I'm going to be building a low pro roof rack as well at some point.
PocketsEmpty is offline
Old 12-15-2014, 03:28 PM
  #15
CF Veteran

McCaffrey's Avatar

Join Date: Jun 2012
Location: California
Posts: 1,250
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L
Default

Nice. JCR mounts probably cost more than everything else combined.
