Default Front winch bumper

So I know this has been covered over and over again but for a guy like myself that does nothing but paint cars all day long this is a big thing for me :-) my first try at some real fab work so bare with me here I should have it done by Saturday here is what I have so far please feel free to critique and assist in ideas


Front winch bumper-image-1771183862.jpg

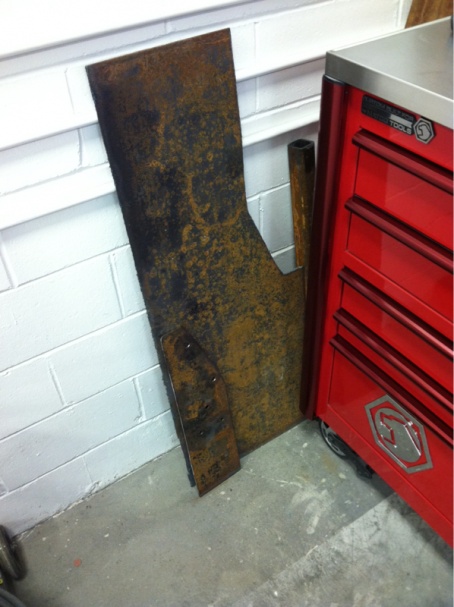

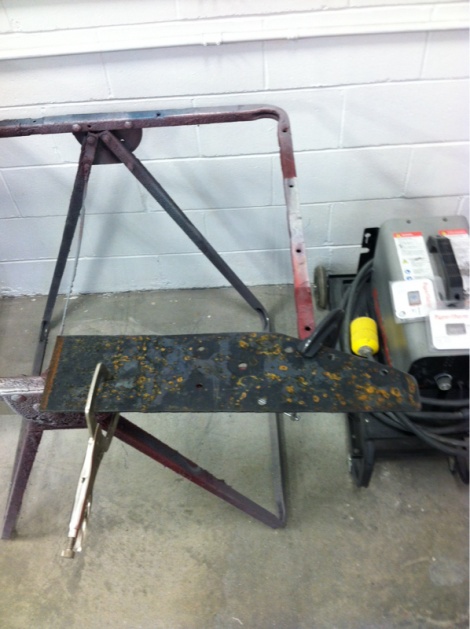

Made cardboard cutouts first then cut them out of steel 3/16 plate


Front winch bumper-image-2688958681.jpg



Front winch bumper-image-1137403623.jpg

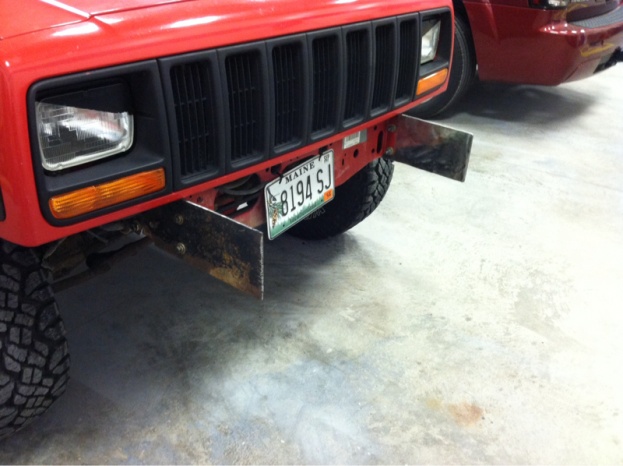

I'm sure everyone has ran into this well thought out plan from mopar! I bought one from jcr offroad should be here Thursday


Front winch bumper-image-3964101610.jpg

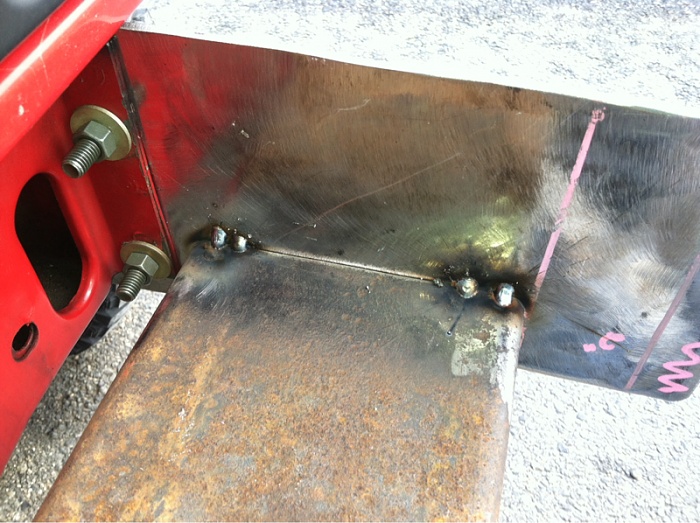

Had to reem the holes a little just so I could get so adjustment out of them have all grade 8 hardware


Front winch bumper-image-1009296274.jpg

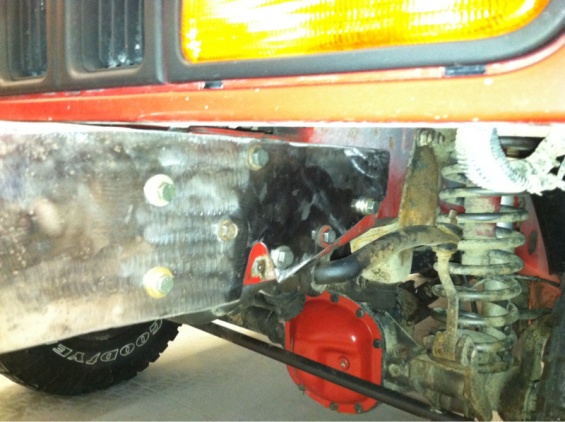

Tied the steering box in and the one open spot all the way out back as well as the original bumper mounts have the box tubing cut and ready to start welding in tomorrow still hve a long way to go but enjoying it so far more to come throughout the week
typicalsundayxj is offline
Old 11-06-2013, 12:48 AM
  #2
CF Veteran

JerrytheJeep's Avatar

Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Year: 89
Model: Cherokee
Engine: 4.0 I6
Default

Not a bad start. Make sure you prep your material before you weld it. Have you considered recessing your winch? I've noticed you aren't lifted very high, so your approach angle is going to suffer if you have it stick out a bunch.
JerrytheJeep is offline
Old 11-06-2013, 05:46 AM
  #3
Seasoned Member
Thread Starter

typicalsundayxj's Avatar

Join Date: Dec 2011
Location: Southern Maine
Posts: 437
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by JerrytheJeep View Post
Not a bad start. Make sure you prep your material before you weld it. Have you considered recessing your winch? I've noticed you aren't lifted very high, so your approach angle is going to suffer if you have it stick out a bunch.
I bought a 4" grinder and I have flapper disks to clean all the scale off and I do have the winch recessed a little not much though I'm trying to avoid cutting my grill but I will if I have to :-) if all goes well my friend is moving on to 6.5 long arm kit and he said I could have his 4.5 short arm if I do a little paint work for him so I'm keeping my fingers crossed
typicalsundayxj is offline
Old 11-06-2013, 06:26 AM
  #4
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34 25' 35.67", -81 21' 12.04"
Posts: 15,016
Year: 1993
Engine: 4.0
Default

2 things.

1. I believe that he meant recessed as in completely behind behind the bumper. I'm not quite finished with my bumper yet but you can see where the fairlead will be mounted and I plan to install the winch on the back side of the bumper. You have to remove the factory crossmember where your tag is mounted to have enough room.




2. Please replace your headlights. "Angry Eyes" are so 1997.
Lowrange2 is offline
Old 11-06-2013, 06:52 AM
  #5
Seasoned Member
Thread Starter

typicalsundayxj's Avatar

Join Date: Dec 2011
Location: Southern Maine
Posts: 437
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by Lowrange2 View Post
2 things. 1. I believe that he meant recessed as in completely behind behind the bumper. I'm not quite finished with my bumper yet but you can see where the fairlead will be mounted and I plan to install the winch on the back side of the bumper. You have to remove the factory crossmember where your tag is mounted to have enough room. 2. Please replace your headlights. "Angry Eyes" are so 1997.
Haha ya the headlights will be gone soon I will be getting some crystal clear lens lights after this bumper is done and I really like how you did yours good Idea for the future possibly
typicalsundayxj is offline
Old 11-06-2013, 07:27 AM
  #6
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

im getting ready to start my front.im watching for ideas.good start.
HS00XJ is offline
Old 11-06-2013, 08:08 AM
  #7
Seasoned Member
Thread Starter

typicalsundayxj's Avatar

Join Date: Dec 2011
Location: Southern Maine
Posts: 437
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by HS00XJ View Post
im getting ready to start my front.im watching for ideas.good start.
Thanx man also I forgot to list my materials what I was using for steel I bought and 8' section of 2x6x3/16" wall box tubing a 3' section of 2x2x3/16" wall square tubing and 2'x4' section of 3/16" plate and because I'm incorporating my steering box bolts I bought a jcr steering box spacer which is 3/16" plate also so it should be nice and rugged
typicalsundayxj is offline
Old 11-06-2013, 12:57 PM
  #8
Seasoned Member
Thread Starter

typicalsundayxj's Avatar

Join Date: Dec 2011
Location: Southern Maine
Posts: 437
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Front winch bumper-image-3152382148.jpg

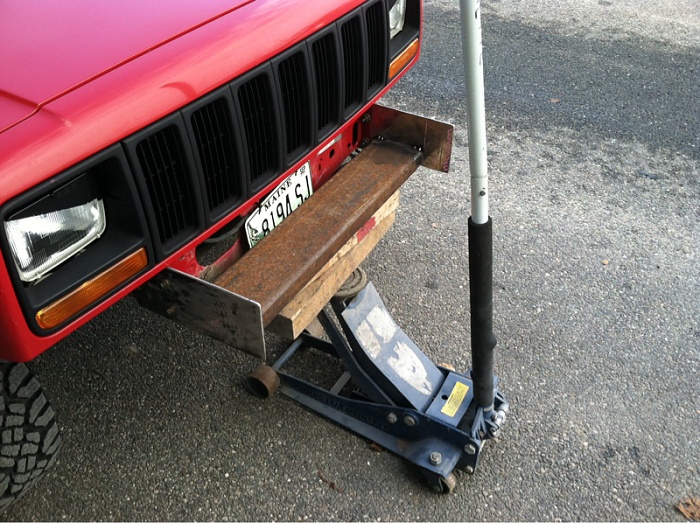

This is what the winch will be sitting on tacked it in


Front winch bumper-image-4270382944.jpg



Front winch bumper-image-1149622239.jpg

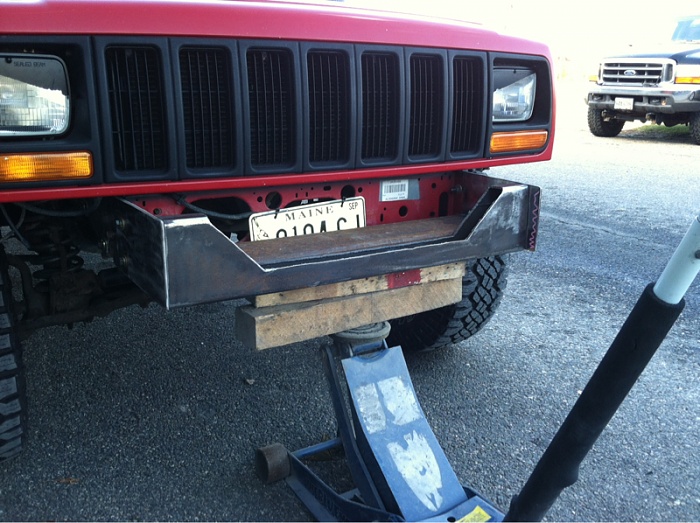

Took another piece of the 2x6 cut that section out for the winch area just have to box that in now and tack that in then tomorrow build my side pieces and plate everything in then Saturday I will buzz the whole thing together
typicalsundayxj is offline
Old 11-06-2013, 02:51 PM
  #9
Seasoned Member

Join Date: Aug 2013
Location: Duluth, MN
Posts: 452
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Default

I might be doing something similar to this in a few months.

Keep this thread updated!
JeepMN is offline
Old 11-06-2013, 02:56 PM
  #10
Seasoned Member
Thread Starter

typicalsundayxj's Avatar

Join Date: Dec 2011
Location: Southern Maine
Posts: 437
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by JeepMN View Post
I might be doing something similar to this in a few months. Keep this thread updated!
Will do man I will be lad to give all the measurements I have done
typicalsundayxj is offline
Old 11-06-2013, 04:20 PM
  #11
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

Originally Posted by typicalsundayxj View Post
Will do man I will be lad to give all the measurements I have done
i would like measurements as you go along if you dont mind.i know once you start rolling its hard to note everything and snap pics.i built my rear bumper a couple months ago and i never welded before...now i love it..the front seems its going to be alittle more complicated.
HS00XJ is offline
Old 11-06-2013, 06:14 PM
  #12
Seasoned Member
Thread Starter

typicalsundayxj's Avatar

Join Date: Dec 2011
Location: Southern Maine
Posts: 437
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by HS00XJ View Post
i would like measurements as you go along if you dont mind.i know once you start rolling its hard to note everything and snap pics.i built my rear bumper a couple months ago and i never welded before...now i love it..the front seems its going to be alittle more complicated.
That will be no problem I've been writing everything down as I go and taking pictures also which I have been posting so whatever you need to know just ask I will let you know
typicalsundayxj is offline
Old 11-06-2013, 08:04 PM
  #13
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

Originally Posted by typicalsundayxj View Post
That will be no problem I've been writing everything down as I go and taking pictures also which I have been posting so whatever you need to know just ask I will let you know
thanks
HS00XJ is offline
Old 11-06-2013, 09:42 PM
  #14
Seasoned Member

Join Date: Aug 2013
Location: Duluth, MN
Posts: 452
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Default

What winch are you planning on using?
JeepMN is offline
Old 11-07-2013, 05:36 AM
  #15
Seasoned Member
Thread Starter

typicalsundayxj's Avatar

Join Date: Dec 2011
Location: Southern Maine
Posts: 437
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by JeepMN View Post
What winch are you planning on using?
Well there is a lot if options I would like to get the most bang for my buck for now so I was thinking of buying on off of ruff stuff they sell mostly on eBay and they come with a 3 year warranty probably do there 9500lbs winch
typicalsundayxj is offline
