Front winch bumper

Thread Tools

Search this Thread

Old Nov 14, 2013 | 10:30 AM
  #31
typicalsundayxj's Avatar
Thread Starter
Seasoned Member

Joined: Dec 2011
Posts: 437
Likes: 0
From: Southern Maine
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Got the bumper painted this morning just temporary till my dring shackle mounts come in the I'm going to have it rhino lined
Reply
Old Nov 14, 2013 | 01:14 PM
  #32
typicalsundayxj's Avatar
Thread Starter
Seasoned Member

Joined: Dec 2011
Posts: 437
Likes: 0
From: Southern Maine
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

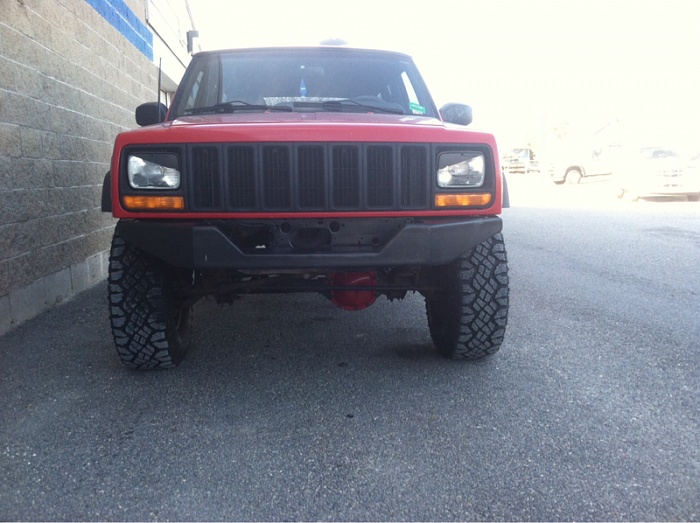

Front winch bumper-image-3575079762.jpg

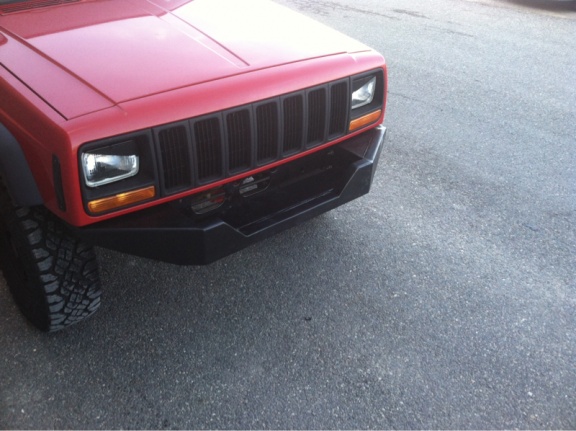

Front winch bumper-image-3072819811.jpg

Just waiting on the dring tabs and a winch and it's done
Reply
Old Nov 14, 2013 | 01:50 PM
  #33
Lowrange2's Avatar
Junior Member

Joined: May 2008
Posts: 15,016
Likes: 11
From: +34° 25' 35.67", -81° 21' 12.04"
Year: 1993
Engine: 4.0
Default

Looks good. The only thing I don't like about it is that, IMO, it needs to be about 3 inches wider. Make it stick out past the fenders on either side a little bit instead of flush with the fenders.

But, you know me, I always have to find something negative about everything.
Reply
Old Nov 14, 2013 | 01:55 PM
  #34
typicalsundayxj's Avatar
Thread Starter
Seasoned Member

Joined: Dec 2011
Posts: 437
Likes: 0
From: Southern Maine
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by Lowrange2
Looks good. The only thing I don't like about it is that, IMO, it needs to be about 3 inches wider. Make it stick out past the fenders on either side a little bit instead of flush with the fenders. But, you know me, I always have to find something negative about everything.
I don't think that's negative I agree with you I got plenty of scrap so I will def be extending that out overall I'm happy with it first big fab thing I've bee done
Reply
Old Nov 14, 2013 | 04:55 PM
  #35
lance.maginnis's Avatar
Junior Member

Joined: Dec 2012
Posts: 32
Likes: 0
From: kingfield, maine
Year: 1998
Model: Cherokee
Engine: 4.0L straight six
Default

looks good bro i like the way the bumper is turning out
Reply
Old Nov 14, 2013 | 05:57 PM
  #36
typicalsundayxj's Avatar
Thread Starter
Seasoned Member

Joined: Dec 2011
Posts: 437
Likes: 0
From: Southern Maine
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Thanx man time to do the sliders and the rear bumper
Reply
Old Nov 18, 2013 | 01:20 PM
  #37
typicalsundayxj's Avatar
Thread Starter
Seasoned Member

Joined: Dec 2011
Posts: 437
Likes: 0
From: Southern Maine
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

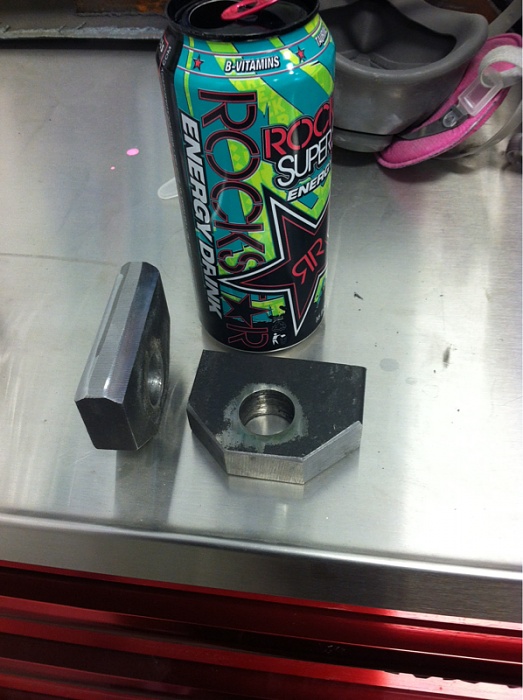

Got my shackle mounts in today going to buzz them in shortly

Front winch bumper-image-704401148.jpg

Beveled them ready to weld
Reply
Old Nov 19, 2013 | 07:47 AM
  #38
typicalsundayxj's Avatar
Thread Starter
Seasoned Member

Joined: Dec 2011
Posts: 437
Likes: 0
From: Southern Maine
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Front winch bumper-image-2364623693.jpg

Drings are on and that completes the bumper for the time being still hae to get a pre runner hoop and a winch then I will hve the whole bumper rhino lined
Reply
Old Nov 19, 2013 | 09:48 AM
  #39
lance.maginnis's Avatar
Junior Member

Joined: Dec 2012
Posts: 32
Likes: 0
From: kingfield, maine
Year: 1998
Model: Cherokee
Engine: 4.0L straight six
Default

i was wanting to do something like that but wasnt sure on how yet. it looks really good and the back bumper will be nice i built one out of a 2x6 inch square tubin for a friends jeep
Reply
Old Nov 19, 2013 | 10:48 AM
  #40
typicalsundayxj's Avatar
Thread Starter
Seasoned Member

Joined: Dec 2011
Posts: 437
Likes: 0
From: Southern Maine
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by lance.maginnis
i was wanting to do something like that but wasnt sure on how yet. it looks really good and the back bumper will be nice i built one out of a 2x6 inch square tubin for a friends jeep
Thank you! And did you like the 2x6 fr the rear I was debating on using that or 2x4 3/16 wall
Reply
Old Nov 19, 2013 | 11:52 AM
  #41
HS00XJ's Avatar
CF Veteran
10 Year Member

Joined: Apr 2012
Posts: 1,843
Likes: 2
From: Ross Vegas, Ga
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

Originally Posted by typicalsundayxj
Thank you! And did you like the 2x6 fr the rear I was debating on using that or 2x4 3/16 wall
i used 2 1/2x3 x 3/16 because it was free..

Front winch bumper-forumrunner_20131119_125320.jpg
Reply
Old Nov 19, 2013 | 11:55 AM
  #42
Lowrange2's Avatar
Junior Member

Joined: May 2008
Posts: 15,016
Likes: 11
From: +34° 25' 35.67", -81° 21' 12.04"
Year: 1993
Engine: 4.0
Default

Nice! I'm diggin that rear bumper.
Reply
Old Nov 19, 2013 | 12:00 PM
  #43
typicalsundayxj's Avatar
Thread Starter
Seasoned Member

Joined: Dec 2011
Posts: 437
Likes: 0
From: Southern Maine
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by HS00XJ
i used 2 1/2x3 x 3/16 because it was free..
damn that's exactly what I was hoping for any side shots by chance ad how much material did you use
Reply
Old Nov 19, 2013 | 12:22 PM
  #44
HS00XJ's Avatar
CF Veteran
10 Year Member

Joined: Apr 2012
Posts: 1,843
Likes: 2
From: Ross Vegas, Ga
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

Originally Posted by typicalsundayxj
damn that's exactly what I was hoping for any side shots by chance ad how much material did you use

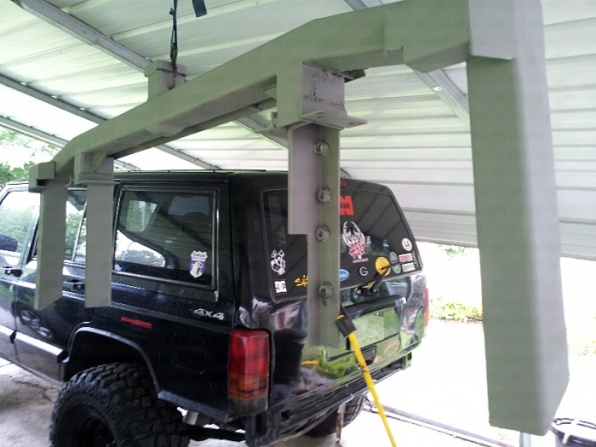

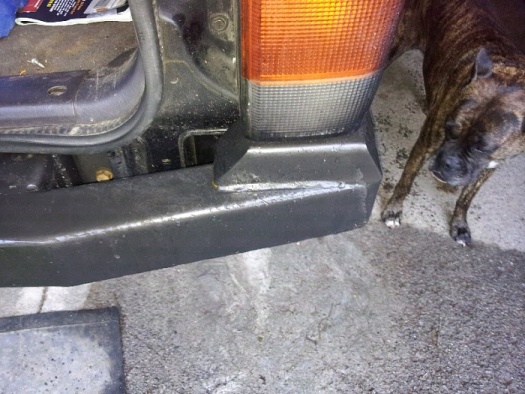

I got a 10 ft sick free and cut everything out of it except the skirt. It was 1/4 plate a local metal shop gave me. My first fab job and I learnt how to weld on it. Thanks google and youtube. I stick welded it with a Lincoln 220. Im wanting a mig bad... Sorry for the sideways pics
Attached Thumbnails Front winch bumper-forumrunner_20130707_193545.jpg   Front winch bumper-forumrunner_20130708_101401.jpg   Front winch bumper-forumrunner_20130708_101549.jpg   Front winch bumper-forumrunner_20130708_101432.jpg
Reply
Old Nov 19, 2013 | 01:14 PM
  #45
typicalsundayxj's Avatar
Thread Starter
Seasoned Member

Joined: Dec 2011
Posts: 437
Likes: 0
From: Southern Maine
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by HS00XJ
I got a 10 ft sick free and cut everything out of it except the skirt. It was 1/4 plate a local metal shop gave me. My first fab job and I learnt how to weld on it. Thanks google and youtube. I stick welded it with a Lincoln 220. Im wanting a mig bad... Sorry for the sideways pics
thats awesome exactly what I was looking or thank you very much and awesome boxer by the way I have a boxer Shepard mix and she is cool as hell
Reply
