fender flares

Reply Subscribe

Thread Tools

Search this Thread

Apr 3, 2012 | 02:39 PM

#31

88jeepcherokeexj

Member

Joined: Dec 2011

Posts: 150

Likes: 0

From: wa

Year: 1988

Model: Cherokee

Engine: renix inline 6

pics of finished product?

Apr 3, 2012 | 11:28 PM

#32

dfm_13

Thread Starter

Seasoned Member

Joined: Feb 2010

Posts: 359

Likes: 0

From: michigan

Year: 2001

Model: Cherokee

Engine: 4.0 lt 6cyl

the pics are as far as they are right now. no time with college to finish, plus the weather has been nice so i been dirtbikin

Apr 4, 2012 | 11:22 AM

#33

RichW

Senior Member

Joined: Oct 2011

Posts: 706

Likes: 0

From: Racine, Ohio

Year: 1999

Model: Grand Cherokee

Engine: 4.7

Quote:

Originally Posted by 96rokee

are you only wleding the flar to the rear quarter panels?

or are you welding to the pinch weld in the original fender well.?
welding underneath at all or just top side?

love to see some strength tests once your done. like holding your weight standing on it.?

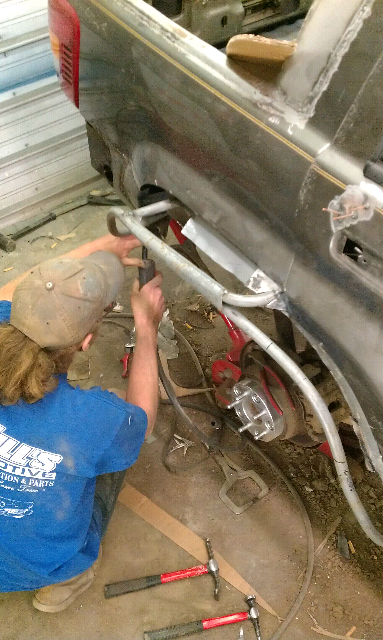

Here are how mine are welded

Attached Thumbnails

fender flares-forumrunner_20120404_122118.jpg

Attached Images

Apr 4, 2012 | 11:38 AM

#34

RichW

Senior Member

Joined: Oct 2011

Posts: 706

Likes: 0

From: Racine, Ohio

Year: 1999

Model: Grand Cherokee

Engine: 4.7

Quote:

Originally Posted by 96rokee

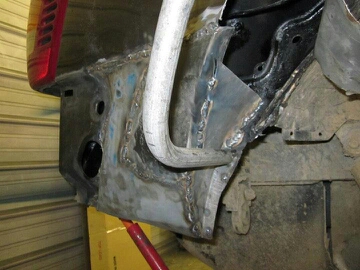

Here are some more pics of how we welded mine. 1st we welded the tube to the underside. 2nd we welded more plate wrapping the whole outside of the tube on each support. 3rd we formed and welded the thick sheet metal around the tubing supports and also seemed it the whole way around the outside of the fender. Now to just grind the welds. I'm 220 lbs and can jump up and down on my flares. I'll get a pic of a strength test for ya.

Attached Images
