Bumper Build Bro

Old 11-06-2013, 07:19 PM
  #1
Member
Thread Starter

Slayfan21's Avatar

Join Date: Jun 2013
Location: Kentucky
Posts: 136
Likes: 0
Received 0 Likes on 0 Posts
Year: 95
Model: Cherokee
Engine: 4.0
Default Bumper Build Bro

Photo Dump

Name:  100_2821_zps8189f259.jpg
Views: 38
Size:  95.4 KB
Mock up them Mounts

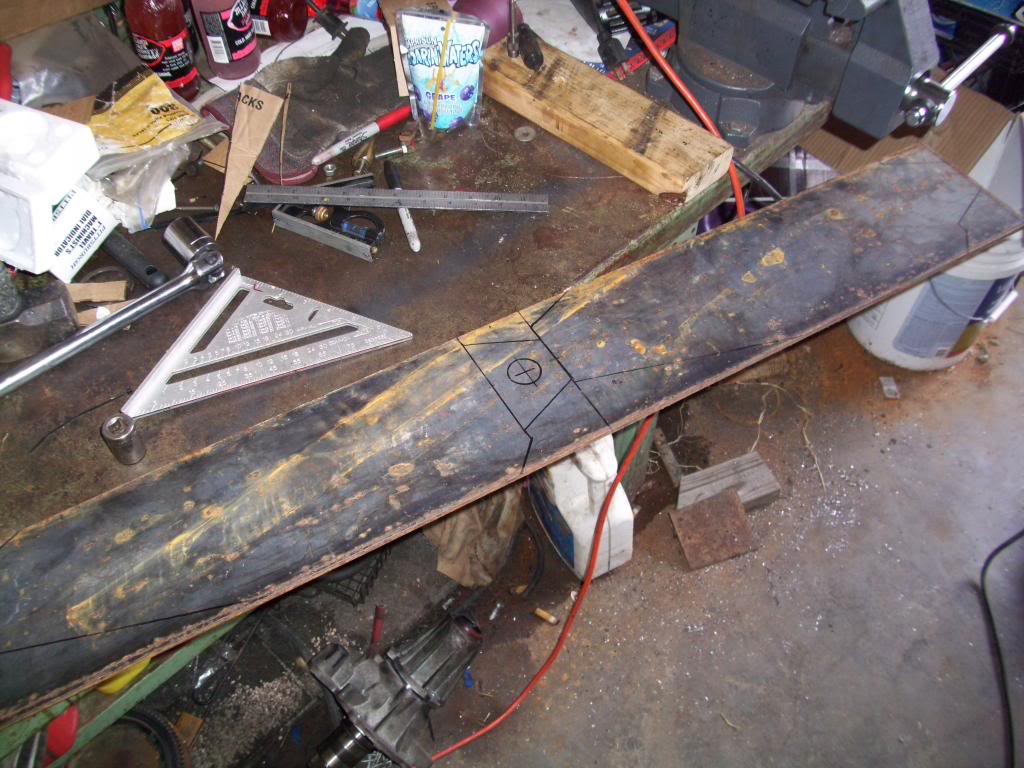

Name:  100_2822_zps5d56c3dc.jpg
Views: 49
Size:  123.2 KB
lay em out
Name:  100_2825_zpsfb855027.jpg
Views: 38
Size:  101.8 KB
bolt em up test fit
Name:  100_2828_zpsfd0f847e.jpg
Views: 39
Size:  107.4 KB
bugger weld on some 1/2 plate to make d rings 3/4thick
Slayfan21 is offline
Old 11-06-2013, 07:21 PM
  #2
Member
Thread Starter

Slayfan21's Avatar

Join Date: Jun 2013
Location: Kentucky
Posts: 136
Likes: 0
Received 0 Likes on 0 Posts
Year: 95
Model: Cherokee
Engine: 4.0
Default moar

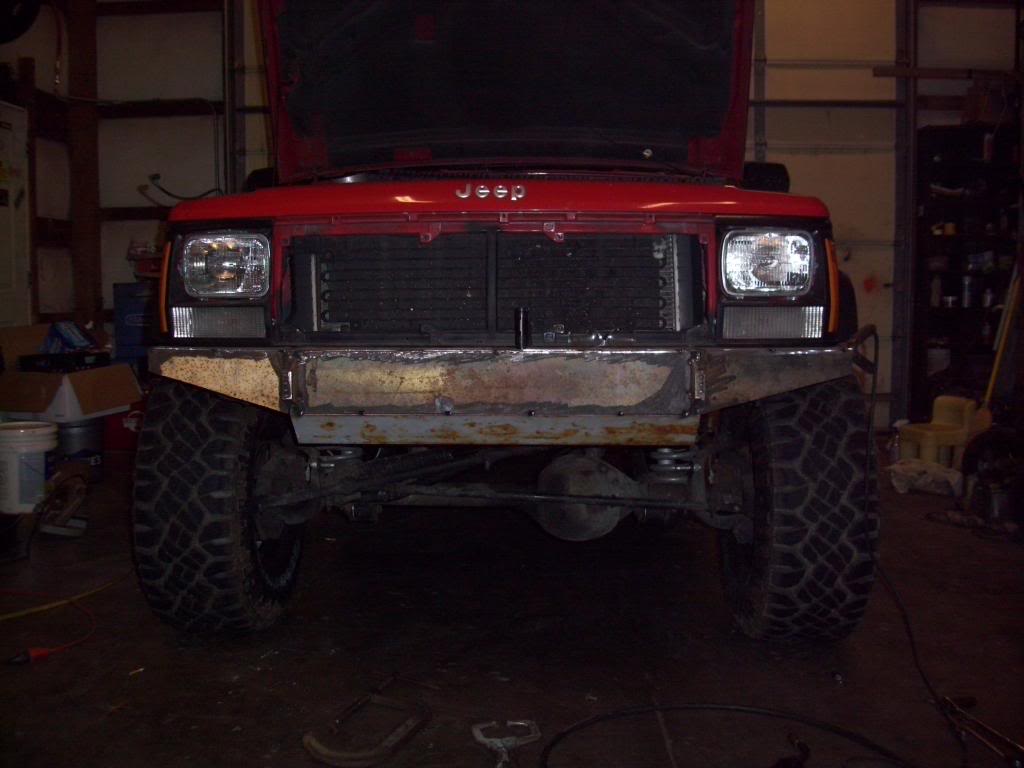

Name:  100_2830_zps1c2cb4ac.jpg
Views: 37
Size:  63.3 KB
scrap 4" and 5" plate
Name:  100_2831_zpsf14e184d.jpg
Views: 40
Size:  96.1 KB
cardboard figuring
Name:  100_2832_zps0cd42b58.jpg
Views: 37
Size:  89.1 KB
Tacked up
Name:  100_2834_zpsc53c2cce.jpg
Views: 40
Size:  65.6 KB
buddy getting in some burn time
Slayfan21 is offline
Old 11-06-2013, 07:31 PM
  #3
Member
Thread Starter

Slayfan21's Avatar

Join Date: Jun 2013
Location: Kentucky
Posts: 136
Likes: 0
Received 0 Likes on 0 Posts
Year: 95
Model: Cherokee
Engine: 4.0
Default moar 2

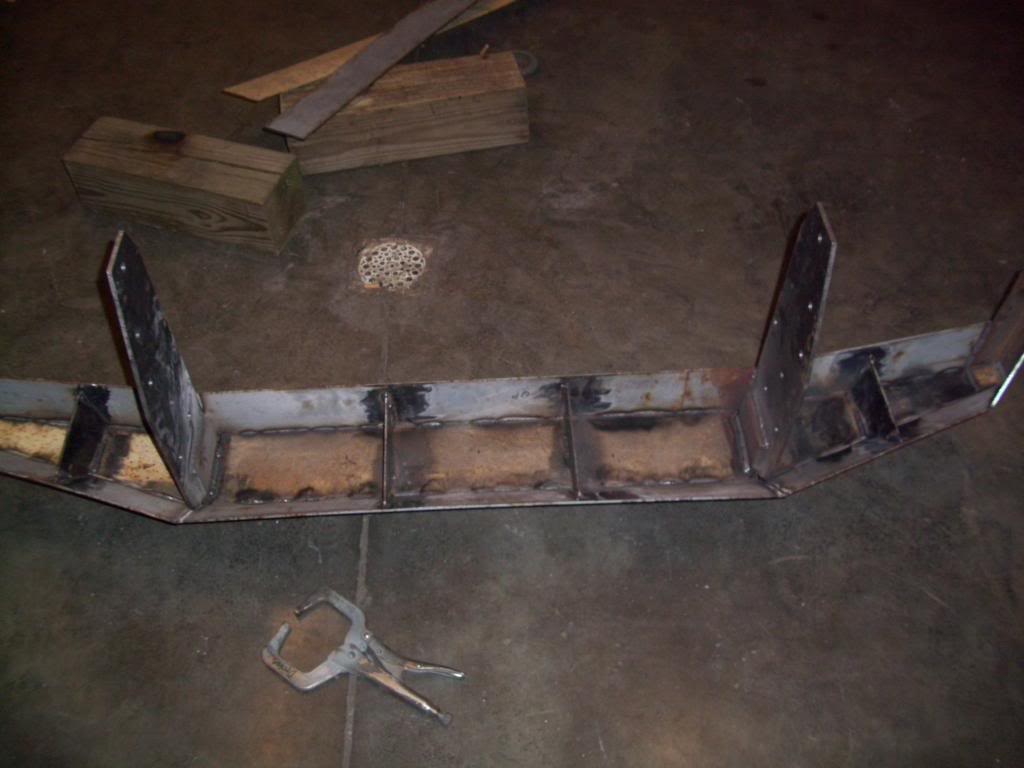

Name:  100_2835_zpsd5a97d2e.jpg
Views: 37
Size:  59.7 KB
gussets up in this
Name:  100_2833_zpsfda66db3.jpg
Views: 32
Size:  74.9 KB
front shot of ugly bumper
Name:  100_2836_zps8eee61e4.jpg
Views: 36
Size:  46.7 KB
Paint is drying right now as I type.
Name:  100_2838_zps21b7951d.jpg
Views: 35
Size:  57.4 KB

all that is left is to drill my D ring holes and bolt it back on
Pics of Bumper mounted tomorrow mayby....
Then on to the back bumper/ Tire carrier Build
Slayfan21 is offline
Old 11-06-2013, 10:54 PM
  #4
CF Veteran

JerrytheJeep's Avatar

Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Likes: 0
Received 0 Likes on 0 Posts
Year: 89
Model: Cherokee
Engine: 4.0 I6
Default

Looks damn good! What did you cut your pieces with? What kind of welder do you have?
JerrytheJeep is offline
Old 11-07-2013, 12:59 AM
  #5
Member
Thread Starter

Slayfan21's Avatar

Join Date: Jun 2013
Location: Kentucky
Posts: 136
Likes: 0
Received 0 Likes on 0 Posts
Year: 95
Model: Cherokee
Engine: 4.0
Default

Originally Posted by JerrytheJeep View Post
Looks damn good! What did you cut your pieces with? What kind of welder do you have?
Portable band saw Hobart Handler 187 220V
Thanks, Wish I had made the front from 4" plate now that I am looking at building a rear bumper
Slayfan21 is offline
Old 11-07-2013, 01:03 AM
  #6
Member
Thread Starter

Slayfan21's Avatar

Join Date: Jun 2013
Location: Kentucky
Posts: 136
Likes: 0
Received 0 Likes on 0 Posts
Year: 95
Model: Cherokee
Engine: 4.0
Default

well I couldnt wait
Put it on and sprayed my headlight bezels too
as it stands I have $20 in this bumper For primer and spray bedliner
Unless you count buying another bottle of gas and some more saw blades
In which case I guess I have $60 total in it

Name:  100_2841_zps7e8bc101.jpg
Views: 36
Size:  105.6 KB
Name:  100_2845_zpsfd74b641.jpg
Views: 35
Size:  119.4 KB
Name:  100_2842_zps10c85de9.jpg
Views: 34
Size:  110.1 KB

Might just have to build another one with a 4" front face
Slayfan21 is offline
Old 11-07-2013, 12:25 PM
  #7
Junior Member

OxfordCherokee2's Avatar

Join Date: Sep 2013
Location: Oxford MI
Posts: 99
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

That looks pretty great. What thickness did you use? you said add 1/2inch to get to 3/4 so did you use 1/4inch on the whole thing?
OxfordCherokee2 is offline
Old 11-07-2013, 12:33 PM
  #8
Member

JLW_2K13's Avatar

Join Date: Mar 2013
Location: Whittier, California
Posts: 101
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default

Came out awesome!!!
JLW_2K13 is offline
Old 11-07-2013, 12:43 PM
  #9
CF Veteran

McCaffrey's Avatar

Join Date: Jun 2012
Location: California
Posts: 1,250
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L
Default

Nice!
McCaffrey is offline
Old 11-07-2013, 12:47 PM
  #10
Senior Member

DieselDaze's Avatar

Join Date: Aug 2009
Location: Tulsa,Oklahoma
Posts: 835
Likes: 0
Received 0 Likes on 0 Posts
Year: 97
Model: Cherokee
Engine: 4.0
Default

looks awesome man !!! been much easier drilling out the d rings before install I wish you luck on that one !!!

portabands the only way to go!!!
DieselDaze is offline
Old 11-07-2013, 01:00 PM
  #11
Senior Member

xjboy14's Avatar

Join Date: Jun 2012
Location: PA
Posts: 524
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6 Power Tech Engine
Default

all i can ask is.... can you please share some measurements that thing is sick
xjboy14 is offline
Old 11-07-2013, 06:35 PM
  #12
Member
Thread Starter

Slayfan21's Avatar

Join Date: Jun 2013
Location: Kentucky
Posts: 136
Likes: 0
Received 0 Likes on 0 Posts
Year: 95
Model: Cherokee
Engine: 4.0
Default

the skin and gussets are all made form 10 gauge. I know a bit light but it was all free scrap. Would of preferred 3/16"
The Tie ins are 1/4" plate with 1/2" taps added to make the 3/4" clevis points

I know I should of drilled the 7/8"<-Typo Brain Fart. I drilled 15/16"> holes first. But I got in a big hurry :\

what measurements you want?

Last edited by Slayfan21; 11-26-2013 at 09:02 PM.
Slayfan21 is offline
Old 11-07-2013, 07:45 PM
  #13
Member

Join Date: Sep 2013
Location: Mile from Tomken
Posts: 121
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Dude that's pretty dang hot nice work
Stuck-n-mud is offline
Old 11-07-2013, 08:01 PM
  #14
Senior Member

Aljay's Avatar

Join Date: Nov 2012
Location: Tx
Posts: 999
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: I-6
Default

Nice build ! I have the same welder .
Aljay is offline
Old 11-07-2013, 08:57 PM
  #15
Member
Thread Starter

Slayfan21's Avatar

Join Date: Jun 2013
Location: Kentucky
Posts: 136
Likes: 0
Received 0 Likes on 0 Posts
Year: 95
Model: Cherokee
Engine: 4.0
Default

Thanks, I am pretty happy with it for my first bumper build
