building a bumper need some input
#1
Junior Member
Thread Starter
Join Date: Apr 2012
Location: woodinville
Posts: 49
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
building a bumper need some input

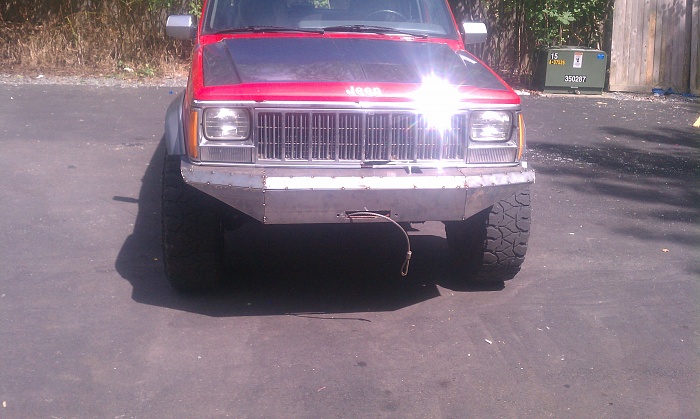

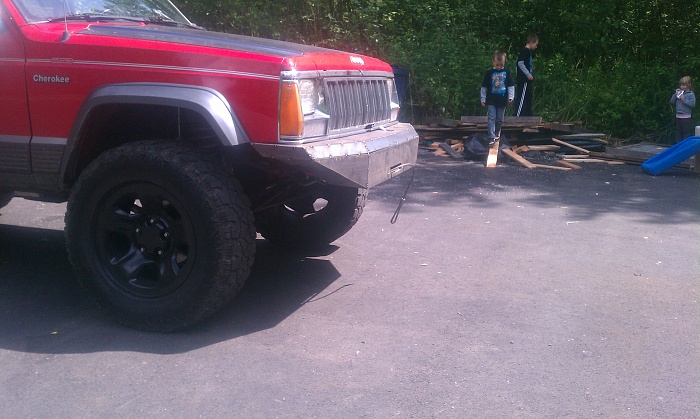

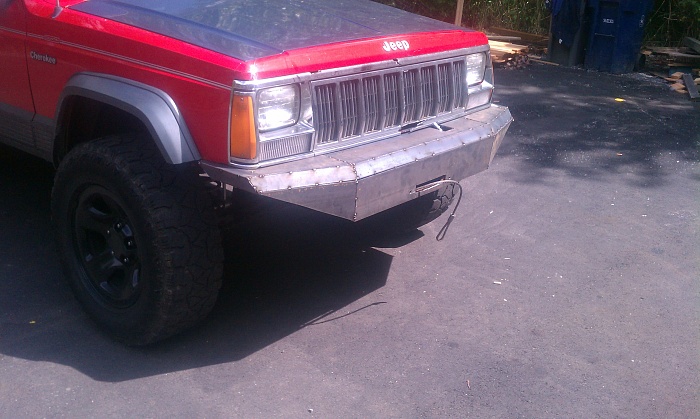

so here is pictures of my bumper that i just started. so i want some input from you guys. and it is just tacked together right now and i need to make my d-ring mounts so be kind.
so here are my questions
1. im thinking of mounting lights on the sides of the winch to help break it up a but. maybe like 3-4" recessed in.
2. I dont know if i should gloss black it, flat black, texture black or hurculiner.
3. pre runner bar? with lights on top of the bumper also?
any other input would be awesome. thanks
so here are my questions
1. im thinking of mounting lights on the sides of the winch to help break it up a but. maybe like 3-4" recessed in.
2. I dont know if i should gloss black it, flat black, texture black or hurculiner.
3. pre runner bar? with lights on top of the bumper also?
any other input would be awesome. thanks
#2
CF Veteran
Join Date: Jul 2011
Location: Oceanside So Cal
Posts: 1,045
Likes: 0
Received 1 Like
on
1 Post
Year: 88
Model: Cherokee (XJ)
Engine: 4.0 renix
It looks good so far!
recessed lights
no on the stinger...might look to god'e
opinions welcomed? with the fiarlead low...looks like u sunk the wnich under the front crossmember..looks clean..but depending on your terain and wheeling style it may kill your approach angle.My 2c. weld it up, coat it then go smack something with it.
nice work.
recessed lights
no on the stinger...might look to god'e
opinions welcomed? with the fiarlead low...looks like u sunk the wnich under the front crossmember..looks clean..but depending on your terain and wheeling style it may kill your approach angle.My 2c. weld it up, coat it then go smack something with it.
nice work.
#3
Junior Member
Thread Starter
Join Date: Apr 2012
Location: woodinville
Posts: 49
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
yeah i slamed the winch as far back as i could get it but it actually isnt as low as the lower support on the body. i am switching to synthetic once done. the bumper is not really any lower than other ones. and it doesnt stick out as far. and i dont want a stinger just a small arch piece in the front maybe 4" from the top no wider than the grill. what you think for coating?
Last edited by contessa1; 06-14-2012 at 01:13 AM.
#4
CF Veteran
Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Likes: 0
Received 7 Likes
on
7 Posts
Year: 89
Model: Cherokee
Engine: 4.0 I6
Looks good! Check some powdercoating places, see if you can get a decent deal on it. If you've got a winch why would you need d rings? If you do add them though make sure they go all at LEAST one bolt past the stock bumper mounts. What thickness material did you use? Happy trails!
#5
Junior Member
Thread Starter
Join Date: Apr 2012
Location: woodinville
Posts: 49
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
1/2 for the mounts 1/4 for the winch plate mount and 1/8 for the shell. D rings are always nice to have tho. And I can get a deal on powder. I'm just trying to figure out to do a bed liner or smooth finish?
#7
Member
Join Date: Jun 2012
Location: Yamhill county, Oregon
Posts: 166
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0L
MORE PICS PLEASE. i love your bumpers, they are exactly what ive been looking for im doing bumpers for my senior project in school and these ones are the closest to what i wanted, ive got a few Q's tho, what thickness steel did you use? and how much did the metal cost you? and do you have plans that you would be willing to share or sell to me?
nevermind the metal size question im an idiot haha
nevermind the metal size question im an idiot haha
Last edited by wheelerboy12; 06-15-2012 at 12:07 AM. Reason: yo stupido
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Apr 2012
Location: woodinville
Posts: 49
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
MORE PICS PLEASE. i love your bumpers, they are exactly what ive been looking for im doing bumpers for my senior project in school and these ones are the closest to what i wanted, ive got a few Q's tho, what thickness steel did you use? and how much did the metal cost you? and do you have plans that you would be willing to share or sell to me?
#9
Junior Member
Thread Starter
Join Date: Apr 2012
Location: woodinville
Posts: 49
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
I think I'm going to do that. It would break up the big bumper lip. I will post pics when I get a hole saw. I'm thinking 3 or 4" lights. Not sure what brand though. This is my budget build on into the entire thing about 1200 including the jeep it self. Ha!
#10
Senior Member
Join Date: Oct 2011
Location: Racine, Ohio
Posts: 706
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Grand Cherokee
Engine: 4.7
Just curious. I don't see a way to get into you winch. If something screws up on your winch, how do you get into it. I was thinking about building mine with a door in the top for access like on the front bumper of a firetruck.
#11
CF Veteran
also, there are many times you want to use a strap instead of your expensive winch.
just be sure to weld the d-ring tabs on both sides, and maybe use a reinforcement plate around the back side also.
make sure the bumper brackets go back along the frame past the steering box bolts. you can also use the front frame horn for another mounting point using a bracket.
good looking bumper tho.
#12
Member
Join Date: Jun 2012
Location: Yamhill county, Oregon
Posts: 166
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0L
I'm down in Oregon and already have someone helping me, but thanks for the offer, I just like your bumper and was wondering if you had a design or templates you would be willing to share with or sell to me.
#13
Junior Member
Thread Starter
Join Date: Apr 2012
Location: woodinville
Posts: 49
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
If you winch screws up on a trail you got Odyssey any way. But if you want the clean look just weld in some big nuts and have the whole plate drop down
#14
Junior Member
Thread Starter
Join Date: Apr 2012
Location: woodinville
Posts: 49
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
you want d-ring tabs so you can hook the winch cable back to your jeep when you use a ****** block for a 2 line pull.
also, there are many times you want to use a strap instead of your expensive winch.
just be sure to weld the d-ring tabs on both sides, and maybe use a reinforcement plate around the back side also.
make sure the bumper brackets go back along the frame past the steering box bolts. you can also use the front frame horn for another mounting point using a bracket.
good looking bumper tho.
also, there are many times you want to use a strap instead of your expensive winch.
just be sure to weld the d-ring tabs on both sides, and maybe use a reinforcement plate around the back side also.
make sure the bumper brackets go back along the frame past the steering box bolts. you can also use the front frame horn for another mounting point using a bracket.
good looking bumper tho.
#15
Junior Member
Thread Starter
Join Date: Apr 2012
Location: woodinville
Posts: 49
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
It was kind of fly by my seat you know. Mine was wrecked too so it might be alittle off. I can tell you to start with the mounts. Use a paper temp, go back as far as you can and have them stick out a good 10" past the lower support. Then make your winch plate self it in, make sure the winch fits, I tacked mine on with the winch mounted and gave about a half inch for a little space at the top. Then put your top plate on and start marking and templating everything and go from there. Don't rush it and cut things on the large size and trim as needed. Pm me if you have any questions.
