It has been on my list of things to do to the jeep for way too long finally time to start fabricating...

Starting things off with the crossmember build

96 long arm build-forumrunner_20140112_174917.jpg



96 long arm build-forumrunner_20140112_175034.jpg



96 long arm build-forumrunner_20140112_175123.jpg



96 long arm build-forumrunner_20140112_175322.jpg



96 long arm build-forumrunner_20140112_175402.jpg



96 long arm build-forumrunner_20140112_175438.jpg

Maybe I can start welding this weekend.
Attached Thumbnails 96 long arm build-forumrunner_20140112_175204.jpg   96 long arm build-forumrunner_20140112_175241.jpg

Last edited by Mountainelk; 01-12-2014 at 10:45 PM.
Mountainelk is offline
Old 01-12-2014, 08:04 PM
  #2
Junior Member
Thread Starter

Mountainelk's Avatar

Join Date: Jan 2011
Location: Carson City
Posts: 81
Year: 96
Model: Cherokee
Engine: 4.0
Default

Need a couple before pictures.

96 long arm build-forumrunner_20140112_180313.jpg



96 long arm build-forumrunner_20140112_180351.jpg
Mountainelk is offline
Old 01-12-2014, 10:02 PM
  #3
CF Veteran

JerrytheJeep's Avatar

Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Year: 89
Model: Cherokee
Engine: 4.0 I6
Default

You'll want a removable center section if you ever want to drop the tranny. Looks good though. What kind of arms are you doing? You should 3 link it while you have the chance.
JerrytheJeep is offline
Old 01-12-2014, 10:22 PM
  #4
Junior Member
Thread Starter

Mountainelk's Avatar

Join Date: Jan 2011
Location: Carson City
Posts: 81
Year: 96
Model: Cherokee
Engine: 4.0
Default

I was thinking about building it with a removable center section and still may. This build is just going to be a radius arm setup with johnny joints on both ends of the lower arms and at the connection to the lower arms, using the stock clevite bushings on the uppers for the axle end. A 3 link may be somewhere down the road, but for know my wife drives it to the store way more then it gets off-road.

Last edited by Mountainelk; 01-12-2014 at 10:35 PM.
Mountainelk is offline
Old 01-15-2014, 10:23 PM
  #5
Junior Member
Thread Starter

Mountainelk's Avatar

Join Date: Jan 2011
Location: Carson City
Posts: 81
Year: 96
Model: Cherokee
Engine: 4.0
Default

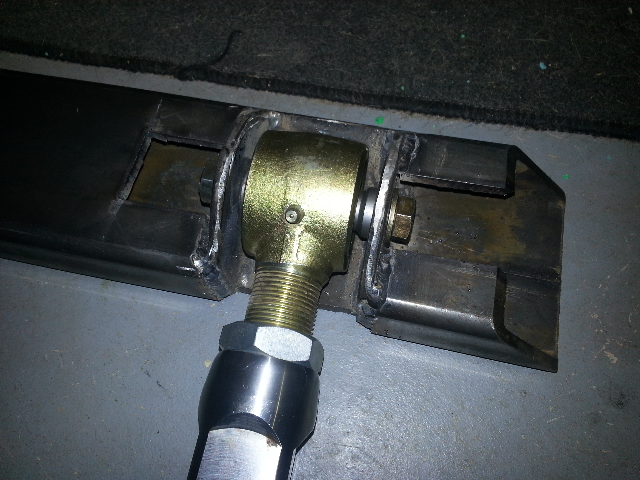

90 percent complete on the cross member. Just have to weld the angle iron to the sides to bolt through the unibody and drill for the transfer case bolts.


96 long arm build-forumrunner_20140115_202227.jpg



96 long arm build-forumrunner_20140115_202249.jpg



96 long arm build-forumrunner_20140115_202310.jpg
Mountainelk is offline
Old 01-15-2014, 10:46 PM
  #6
CF Veteran

JerrytheJeep's Avatar

Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Year: 89
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by Mountainelk View Post
90 percent complete on the cross member. Just have to weld the angle iron to the sides to bolt through the unibody and drill for the transfer case bolts.
You aren't going to use the stock crossmember bolts are you?

Looking good
JerrytheJeep is offline
Old 01-15-2014, 10:52 PM
  #7
Junior Member
Thread Starter

Mountainelk's Avatar

Join Date: Jan 2011
Location: Carson City
Posts: 81
Year: 96
Model: Cherokee
Engine: 4.0
Default

Originally Posted by JerrytheJeep View Post

You aren't going to use the stock crossmember bolts are you?

Looking good
No. I am going to weld angle iron to each end and attach to the unibody with 4 9/16 grade 8 bolts on each side.
Mountainelk is offline
Old 01-15-2014, 11:31 PM
  #8
Junior Member
Thread Starter

Mountainelk's Avatar

Join Date: Jan 2011
Location: Carson City
Posts: 81
Year: 96
Model: Cherokee
Engine: 4.0
Default

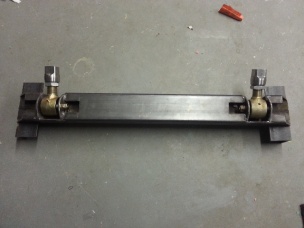

I think it's going under the jeep this weekend.
