2x6 Rocker Rock Sliders

Old 08-22-2013, 09:17 AM
  #1
Seasoned Member
Thread Starter

XJRaider's Avatar

Join Date: Mar 2011
Location: Johnsonburg, Pa
Posts: 252
Year: 2000
Model: Cherokee
Engine: 4.0L I6
Default 2x6 Rocker Rock Sliders

Well my rockers were starting to get really rusty and in some spots there were holes. I looked for allot of solutions but i really like the 2x6 steel welded in. I got 10 feet of 2x6 1/8th wall steel tubing to start.

I did it a little different from others that carry the slider all the way to the front through the front fender but i got plans for new flares so i didnt want to have to cut new flares.

But the sliders are 56" long which is almost the whole rocker with just a little metal left to weld to.

I cut out caps to weld to the end of the tubing and grinded it down and proceeded to cut the old rocker and mock in the new rocker and this is where i currently stand on this project
Attached Thumbnails 2x6 Rocker Rock Sliders-steel.jpg   2x6 Rocker Rock Sliders-cut-out.jpg   2x6 Rocker Rock Sliders-mocked.jpg   2x6 Rocker Rock Sliders-different-view.jpg
XJRaider is offline
Old 08-22-2013, 09:45 AM
  #2
Senior Member

Join Date: Sep 2011
Posts: 554
Year: 1998
Model: Cherokee
Engine: 4.0
Default

I like the looks of that, different.
Tate is offline
Old 08-22-2013, 10:00 AM
  #3
Seasoned Member
Thread Starter

XJRaider's Avatar

Join Date: Mar 2011
Location: Johnsonburg, Pa
Posts: 252
Year: 2000
Model: Cherokee
Engine: 4.0L I6
Default

once i get both sides welded in i an gonna bed line from the seam in the door down to the the pinch weld
XJRaider is offline
Old 08-22-2013, 10:26 AM
  #4
Senior Member

TN12valve's Avatar

Join Date: Jan 2012
Location: Tennessee
Posts: 804
Model: Cherokee
Engine: 4.0
Default

Looking good brother! Keep the pics coming!
TN12valve is offline
Old 08-22-2013, 10:44 AM
  #5
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34 25' 35.67", -81 21' 12.04"
Posts: 15,016
Year: 1993
Engine: 4.0
Default

Looks good but why did you choose to stop there.

I went all the way past the flares.
Lowrange2 is offline
Old 08-22-2013, 10:54 AM
  #6
Member

perpetual's Avatar

Join Date: Aug 2013
Location: N 43 6' 31.5356" W 88 30' 10.6452"
Posts: 229
Year: 1996
Model: Cherokee
Engine: 4.0
Default

I approve this mod!
perpetual is offline
Old 08-22-2013, 11:08 AM
  #7
CF Veteran

Gee oh Dee's Avatar

Join Date: Sep 2010
Location: Milwaukee, WI
Posts: 21,168
Year: 1987
Engine: Check
Default

More pics!!
Gee oh Dee is offline
Old 08-22-2013, 11:22 AM
  #8
Seasoned Member
Thread Starter

XJRaider's Avatar

Join Date: Mar 2011
Location: Johnsonburg, Pa
Posts: 252
Year: 2000
Model: Cherokee
Engine: 4.0L I6
Default

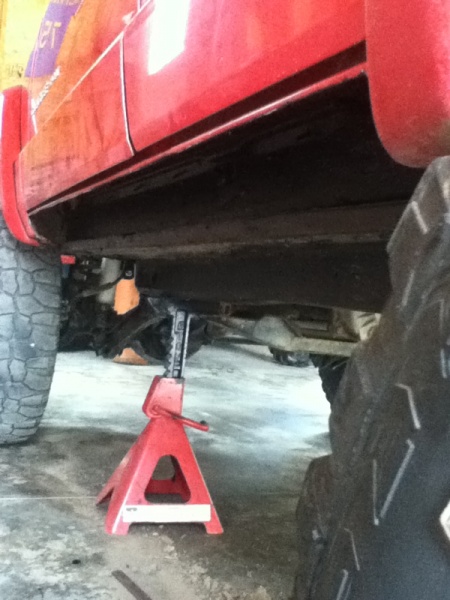

Under coated everything underneath for the hell of it and the reason I stopped before the flare is because I plan on putting bigger flares and didn't want to have to alter the flare or rocker to make them fit
Attached Thumbnails 2x6 Rocker Rock Sliders-image-376508698.jpg
XJRaider is offline
Old 08-22-2013, 11:40 AM
  #9
CF Veteran

94XjSport94's Avatar

Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

And why 1/8"?
94XjSport94 is offline
Old 08-22-2013, 11:44 AM
  #10
Seasoned Member
Thread Starter

XJRaider's Avatar

Join Date: Mar 2011
Location: Johnsonburg, Pa
Posts: 252
Year: 2000
Model: Cherokee
Engine: 4.0L I6
Default

Well I don't encounter much rocks so I didn't need a crazy amount of strength so I went with 1/8 inch to save some weight and little easier to weld
XJRaider is offline
Old 08-22-2013, 12:02 PM
  #11
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34 25' 35.67", -81 21' 12.04"
Posts: 15,016
Year: 1993
Engine: 4.0
Default

Originally Posted by XJRaider View Post
Well I don't encounter much rocks so I didn't need a crazy amount of strength so I went with 1/8 inch to save some weight and little easier to weld
Soooo, why did you do this?
Lowrange2 is offline
Old 08-22-2013, 12:06 PM
  #12
CF Veteran

PocketsEmpty's Avatar

Join Date: Dec 2012
Location: York, PA
Posts: 4,169
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by XJRaider View Post
Under coated everything underneath for the hell of it and the reason I stopped before the flare is because I plan on putting bigger flares and didn't want to have to alter the flare or rocker to make them fit
Should've waited.
PocketsEmpty is offline
Old 08-22-2013, 12:09 PM
  #13
Seasoned Member
Thread Starter

XJRaider's Avatar

Join Date: Mar 2011
Location: Johnsonburg, Pa
Posts: 252
Year: 2000
Model: Cherokee
Engine: 4.0L I6
Default

I know in some spots I am gonna have to grind it away to prep for welding but the areas inside the rockers won't be accessible once I mock up for last time
XJRaider is offline
Old 08-22-2013, 12:09 PM
  #14
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Any other reinforcement running to the unibody?
Xj88 is offline
Old 08-22-2013, 12:09 PM
  #15
Seasoned Member
Thread Starter

XJRaider's Avatar

Join Date: Mar 2011
Location: Johnsonburg, Pa
Posts: 252
Year: 2000
Model: Cherokee
Engine: 4.0L I6
Default

Well stronger than normal rockers and I usually hit trees before rocks and I don't smash into them
XJRaider is offline
