My 1990 Cherokee is a three year build

Engine started as 4.0 with 260,000 miles after it ate the lifters and bump stick had to rebuild. So a 4.2 crank and stroked to a 4.6 with titanium valves and seats with 5 angle valve job ported the head for better flow. Bumped up compression to 9.75 to 1. High flow oil and water pumps. Mustang 5.0 injectors. All sensors replaced as well as hoses vacuum lines and belt. Aluminum rad and electric fan conversion. Hood vents in the works.

AW4 Transmission

Built with a 7 planetary gear set upped the line pressure by 50%, added 60% more clutch material and stageII shift kit for firmer shifts. Heavy duty external cooler and filter with thermal switch and valve to keep it cool but not to cool. Fabricated billit converter with low stall and more clutch material for better lock up.

Atlas II 4.3 low fully sycronized twin stick control. Tom Woods drive shafts.

Front axle is a 77 F150 HP heavy Dana 44 with 1/2" thick axle tubes pressed in will truss later w/ 4.56 race polished Richmond gears and a ECTED Elocker. Molly axles shafts and stub Shafts warn premium hubs.
Rear axle is a ford 9" with thick tubes installed 4.56 Richmond race polished gears and Detroit locker Molly shafts.

Suspension is all rubicon express
7" front dual rate springs long arm conversion with "Y" link, sway discos,
Steering is a high steer kit from ruff stuff full hym joint stock gear box with new cross over brace and heavy duty spacer and ARP mounting bolts.
Rear is 6" springs with ruff country shackles and relocated shackle mounts and custom built anti wrap brace. Shocks are custom valves rubicon express front and rear to optimize ride quality.

Tires are 35- 12.50 15 Dick Cepek mud country

Exterior mods are just getting started. Custom built roof rack made from 1/2" square tube and expanded steel bed. Light mounts for soltek outer lights and center mounted search light with In cab control. CB antenna mount (not yet installed antenna). Bumpers and rock sliders being built out of 2X3 1/4" walled square tubing. Trimmed front fenders and will integrate tube fenders into bumpers and rock sliders.
Interior is stock with CB mound TBD rear cargo area will have shelf with sliding drawer to house spare parts and recovery gear.
Waiting to upgrade the headlights and tail lights. Have installed green ground effect lights under frame to light the trail still waiting on the rock lights under fenders till tube fenders are complete.

I want suspension seats and 5 point harness seat belts but waiting till I decide on the roll cage I want to build.
Future plans include a electric lime green paint job and winch (once bumpers are finished).
Built this jeep as a adventure rig to run Moab and the rubicon trail as well as anything In between. It's built to be tuff as well as easy to repair parts should be easy to get no matter where I end up. The hope is I will not be able to brake it just wear it out but we will see. LOL

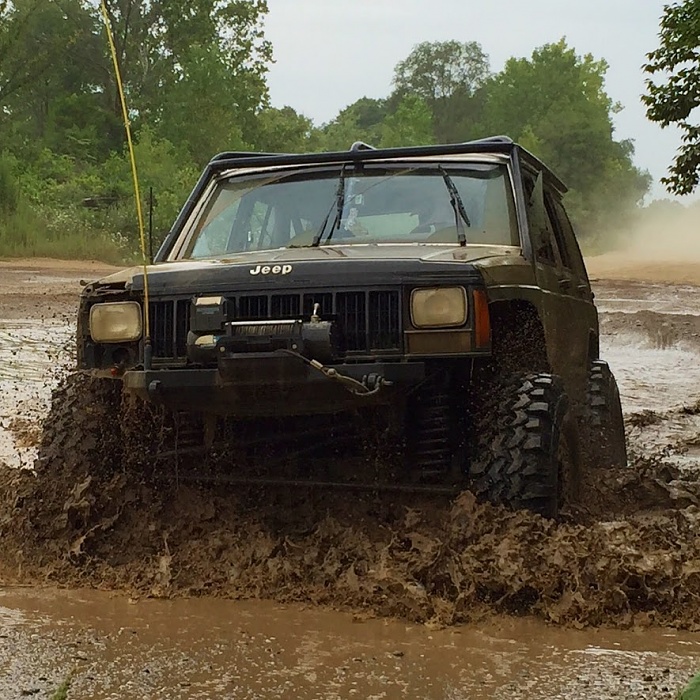

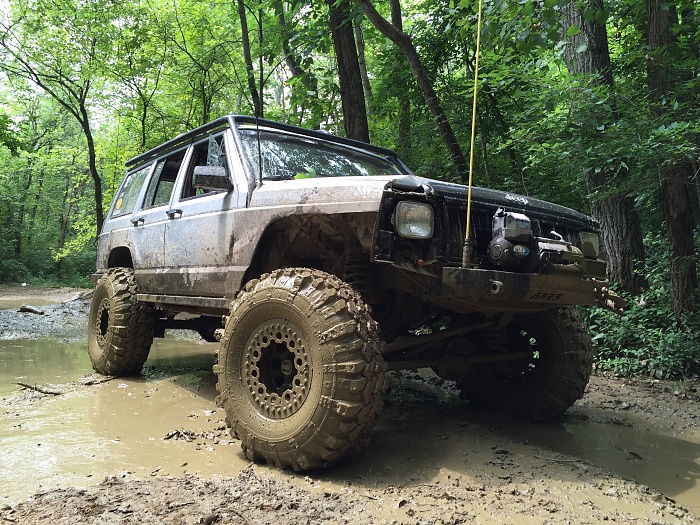

1986 Cherokee Pioneer

Engine/Driveline:
-3.4L w. Comp Cam, Holley Truck Avenger 460 cfm carb, Edlebrock Torker II
-NP231 with DIY wide chain & 6 gear planetary
-JB Conversions SYE
-Advance adapters tcase shifter
-TF904
-Shortened Explorer front driveshaft
-Tom Woods rear driveshaft
-Brown Dog motor mounts

Front Axle:
-High Pinion D30
-Lock Right Locker
-4.56 geared
-Warn manual hub coversion
-Chromo outers
-Artec truss w/ Johnny Joints
-IRO C-gussets
-RuffStuff diff cover
-JKS LCA Skids
-Prothane bumpstops

Rear Axle:
-Chrysler 8.25 (29 spline)
-Powertrax No-Slip Locker
-4.56 geared
-RuffStuff diff cover
-Dakota brake hose
-Custom bumpstops

Steering & Suspension:
-Custom length Claytons long arms
-5.5" Rubicon Express coils
-4.5" Otto-Max leaf springs
-H.D. Offroad No Lift Relocation Brackets
-Teraflex shackles
-Edlebrock Xtreme remote reservoir shocks
-Ruff Stuff 3/4" heim steering
-Custom double shear pitman arm
-IRO trackbar
-IRO Gearbox spacer
-Ruff Stuff limit straps

Tires/Wheels:
-35x12.5x15 Swamper LTB
-D-window wheels with 3.75" backspacing
-TMI DIY beadlocks
-Full Size Spare

Armor/Recovery:
-Hobag Hybrid cage
-2x6 rockers
-Ares Fab stubby JK bumper w/ prototype tie-ins
-Custom rear bumper
-Superwinch 8.5k winch
-RuffStuff frame stiffeners
-Modified JCR Transfer case skid
-Farmboy tail light boxes with LED lights
-RuffStuff front and rear diff covers

Other:
-Gas tank relocated in vehicle
-Midland CB radio
-Cut and fold fenders/quarters
-Stripped interior

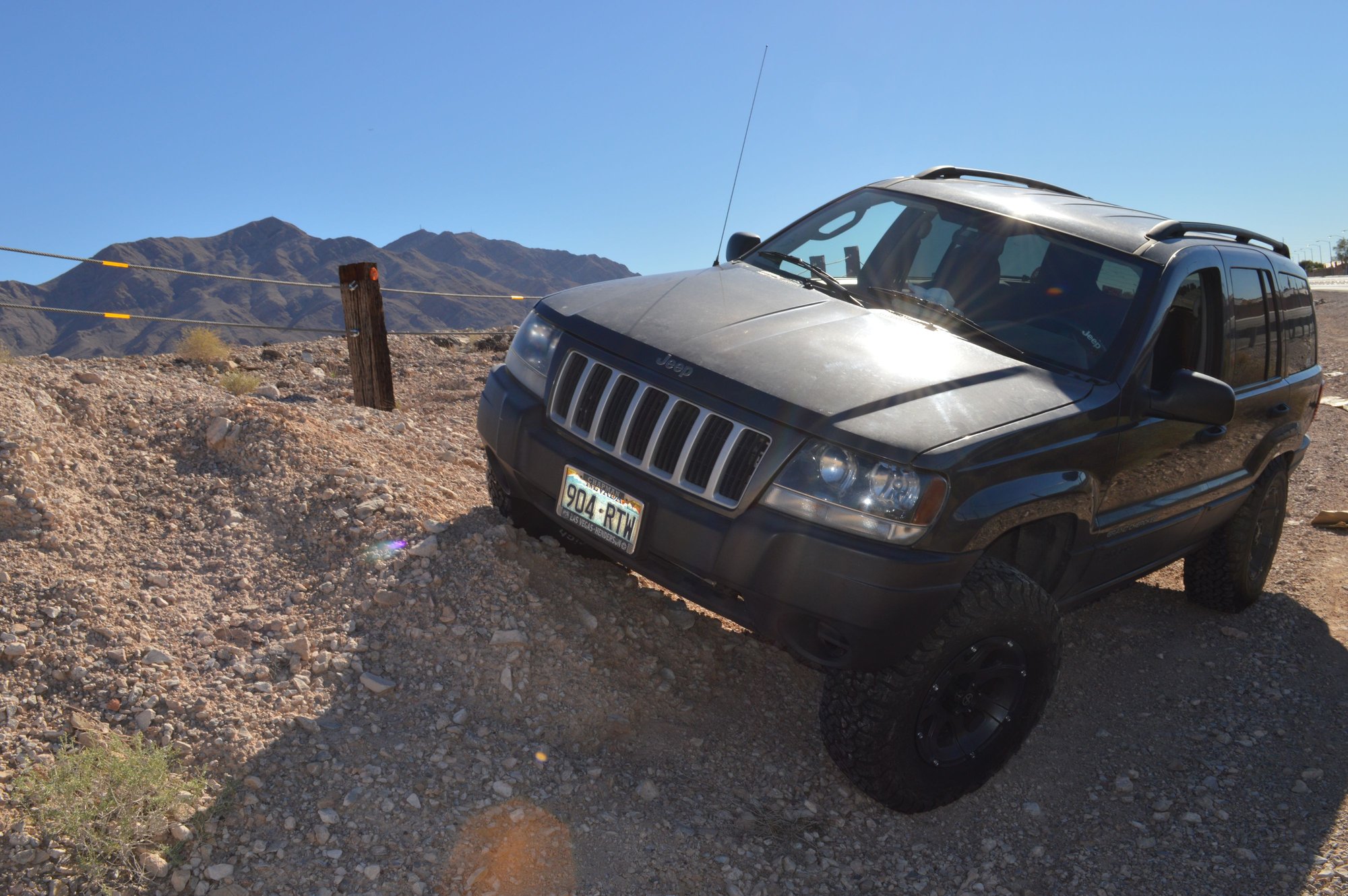

2004 Grand Cherokee Laredo, 4.0, Fat Bob's Garage 2.5 lift, JKS adjustable Track Bar, Iron Rock Offroad adjustable control arms (front and rear), K&N cold air intake, 786 injectors, "Superchip", new ball joints & tie rod ends, Borla Cat Back exhaust, JKS quick disconnects in front; Bilstein 5100 series shocks, 8X16 American Racing "Ledge" wheels, 32" BFG KO2.



I'll throw mine in again to beef up the list.

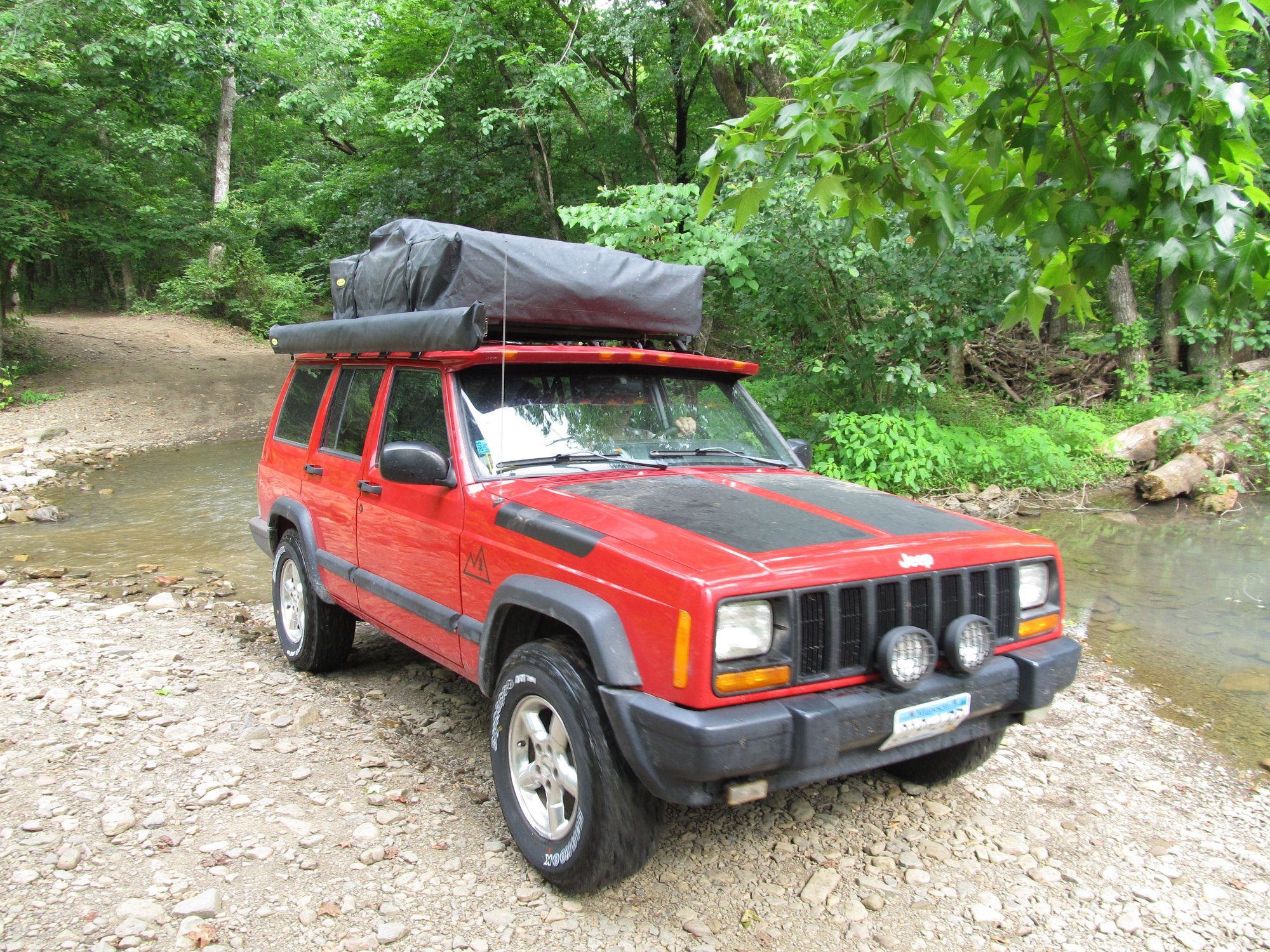

This is my dedicated camping/adventure vehicle. It equipped with a Smittybilt roof top tent and 6'x8' awning and the back is loaded with all our camping gear; always ready to hit the road.

98 XJ Sport 4.0 automatic
206,000 miles
All stock suspension with adjustable air shocks in back to compensate for camping gear.
Lund moon visor.
235/75/15 tires.



Please be prepared to send me high resolution images in the case that you win. Thanks.

K, GO.



voted!



voted



Voted.



Holy offset batman haha. 15x10 with what backspacing?

You got my vote.



Tough call. All the entries are awesome this month... but I've got a soft spot for dubs



Nice variety of builds this month. Voted



Axle swap bro. +3" track width each side



Voted!
