Front end sagging

Thread Tools

Search this Thread

Old 04-21-2014, 01:16 AM
  #1
Seasoned Member
Thread Starter

jonwalden68's Avatar

Join Date: Jun 2012
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
Default Front end sagging

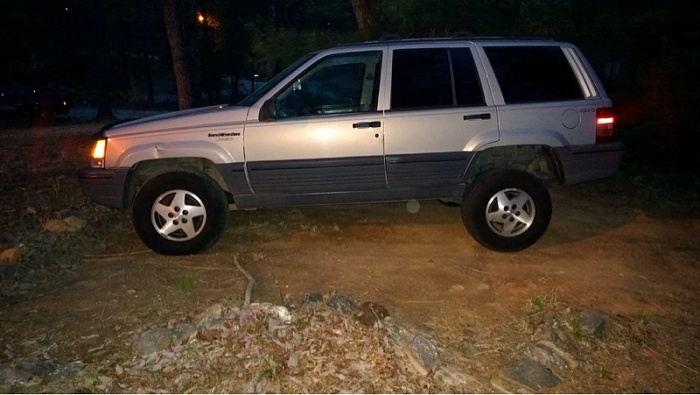

Just got a 95 grand Cherokee 4x4 4.0 the front end is like 2-3" lower I was trying to figure out there is no lift on it
Attached Thumbnails Front end sagging-image-4272928517.jpg
Old 04-21-2014, 06:42 AM
  #2
Senior Member

Kingfisher's Avatar

Join Date: Mar 2014
Location: Central Indiana
Posts: 552
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Sure looks like the back has been lifted!
Old 04-21-2014, 07:35 AM
  #3
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

The rear has to have spacers or something.
Old 04-21-2014, 09:47 AM
  #4
Seasoned Member
Thread Starter

jonwalden68's Avatar

Join Date: Jun 2012
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
Default

I thought the same I can't find any spacers
Old 04-21-2014, 10:55 AM
  #5
Seasoned Member
Thread Starter

jonwalden68's Avatar

Join Date: Jun 2012
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
Default

I'm gonna try and find some rear factory coil springs and see if someone may have swapped it out I can't find any spacers front seems factory rear seems like something been swapped
Old 04-21-2014, 12:09 PM
  #6
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Take pictures of the rear coils and upload em
Old 04-21-2014, 12:53 PM
  #7
Seasoned Member
Thread Starter

jonwalden68's Avatar

Join Date: Jun 2012
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
Default

Someone has swapped the rear ones to the front and front to rear is what I'm thinking
Old 04-21-2014, 01:19 PM
  #8
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Never dealt with a ZJ, but on my Wj I dont that that would work..

The front looks like its stock height, the rear looks about 3 inches over.
Old 04-21-2014, 01:26 PM
  #9
CF Veteran

McCaffrey's Avatar

Join Date: Jun 2012
Location: California
Posts: 1,250
Likes: 0
Received 2 Likes on 2 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L
Default

^^^ Looks like it to me too.

Some towing option? U-haul or somebody added it with a non-factor tow hitch?
Old 04-21-2014, 01:30 PM
  #10
Seasoned Member
Thread Starter

jonwalden68's Avatar

Join Date: Jun 2012
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
Default

There's no tow hitch on it or any markings from were one used to be. On the zj I know people put swap the springs to lift the rear so the don't have to buy but one set of coils for a cheap lift.
Old 04-21-2014, 02:29 PM
  #11
Seasoned Member
Thread Starter

jonwalden68's Avatar

Join Date: Jun 2012
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
Default

Finally got it up on the lift and took the coils off Wow ended up being worse then I thought I pull all off they were all the same length and the front ones had a piece of coil welded to them to make it seem lifted so I guess I'm going to junk yard to get a set rear coils to get it level
Old 04-22-2014, 10:22 AM
  #12
Seasoned Member
Thread Starter

jonwalden68's Avatar

Join Date: Jun 2012
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
Default

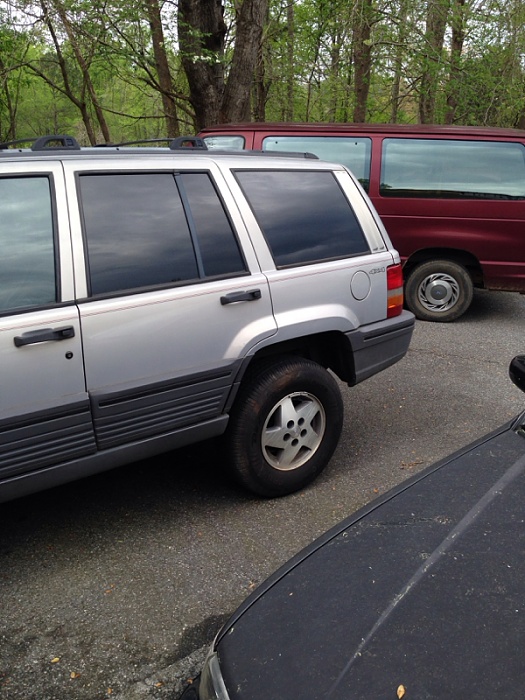

Now only bout a inch so it's good for me I'll eventually lift it once I fix everything I want. But I'm missing antenna how can you replace the roll down one with just a regular one
Attached Thumbnails Front end sagging-image-1263971635.jpg   Front end sagging-image-1742181315.jpg
Old 04-22-2014, 10:39 AM
  #13
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Please upload a pic of the coil welded to coil lol
Old 04-22-2014, 11:19 AM
  #14
Seasoned Member
Thread Starter

jonwalden68's Avatar

Join Date: Jun 2012
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
Default

Ok I'll have to get one Iol it was crazy lookin
