Default xj sport build

Bought this about a year ago from a buddy, it already had the 6.5 inch rough country lift and 33 inch all terrains, since then I have built a roof rack, fabricated the door hinges so I can take all four doors off, and fixed a bunch of mechanical and electrical issues, now its time to start the real tear down and get to work, ill be posting pics as I take them.
Attached Thumbnails xj sport build-img_0334.jpg
RickyBobby is offline
Old 10-07-2012, 06:37 PM
  #2
Junior Member
Thread Starter

Join Date: Dec 2011
Location: oklahoma city
Posts: 33
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

a pic from a few months ago, pretty much what it looks like now
Attached Thumbnails xj sport build-img_0589.jpg
RickyBobby is offline
Old 10-07-2012, 06:51 PM
  #3
Junior Member
Thread Starter

Join Date: Dec 2011
Location: oklahoma city
Posts: 33
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

Bought a 1980 wagoneer with a dana 44 front and amc 20 rear to put under the cherokee, started it this weekend.
Attached Images
RickyBobby is offline
Old 10-07-2012, 06:54 PM
  #4
Junior Member
Thread Starter

Join Date: Dec 2011
Location: oklahoma city
Posts: 33
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

got the dana 44 striped down, took some time but not bad when you have the right tools, a plasma cutter helped
Attached Thumbnails xj sport build-imag0134.jpg
RickyBobby is offline
Old 10-07-2012, 06:59 PM
  #5
Junior Member
Thread Starter

Join Date: Dec 2011
Location: oklahoma city
Posts: 33
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

got the front end apart pretty much how it sits now, ill be posting pics of the fabrication as I go
Attached Thumbnails xj sport build-imag0164.jpg
RickyBobby is offline
Old 10-29-2012, 09:49 PM
  #6
Junior Member
Thread Starter

Join Date: Dec 2011
Location: oklahoma city
Posts: 33
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

got some work done to it, rear truss finished just need to grind smooth and paint then do the rear brakes after i mount it.
Attached Thumbnails xj sport build-imag0223.jpg
RickyBobby is offline
Old 10-29-2012, 09:53 PM
  #7
Junior Member
Thread Starter

Join Date: Dec 2011
Location: oklahoma city
Posts: 33
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

rough country long arm kit somewhat installed been waiting on the driver side upper mount to show up to finish it, im really impressed with the rebuildable joints, and the skid plate isnt that bad either.
Attached Thumbnails xj sport build-imag0218.jpg   xj sport build-imag0209.jpg   xj sport build-imag0204.jpg
RickyBobby is offline
Old 10-29-2012, 10:11 PM
  #8
Junior Member
Thread Starter

Join Date: Dec 2011
Location: oklahoma city
Posts: 33
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

here is where I ordered all my brackets, im very impressed with the quality of everything

http://www.ballisticfabrication.com/...nt_p_1629.html -track bar mount


http://www.ballisticfabrication.com/...bo_p_1461.html -coil/shock/lower control arm bracket, i had to grind the bracket a little bit because it needed to be at an angle in order for the lower link to fit, but didnt take long and was an easy fix.

i got both passenger side and driver side upper link mounts from poly performance
RickyBobby is offline
Old 10-29-2012, 10:17 PM
  #9
Junior Member
Thread Starter

Join Date: Dec 2011
Location: oklahoma city
Posts: 33
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

RickyBobby is offline
Old 11-12-2012, 08:34 PM
  #10
Junior Member
Thread Starter

Join Date: Dec 2011
Location: oklahoma city
Posts: 33
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

front axle done
Attached Thumbnails xj sport build-imag0261.jpg   xj sport build-imag0263.jpg
RickyBobby is offline
Old 11-25-2012, 12:09 PM
  #11
Junior Member
Thread Starter

Join Date: Dec 2011
Location: oklahoma city
Posts: 33
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

Front end on
Attached Thumbnails xj sport build-forumrunner_20121125_120930.jpg
RickyBobby is offline
Old 12-30-2012, 12:56 AM
  #12
Junior Member
Thread Starter

Join Date: Dec 2011
Location: oklahoma city
Posts: 33
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

well i got it rolling, drives straight as a razor and rides pretty smooth considering im using the shocks from the old set up
Attached Thumbnails xj sport build-imag0345.jpg
RickyBobby is offline
Old 12-30-2012, 01:00 AM
  #13
Junior Member
Thread Starter

Join Date: Dec 2011
Location: oklahoma city
Posts: 33
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

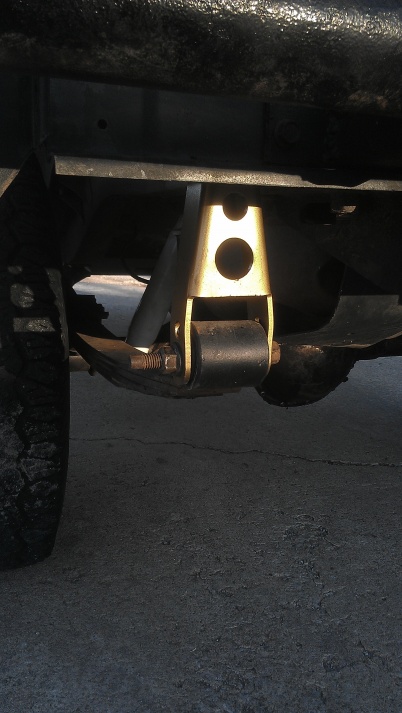

the coil seats on the front axle raised the front end up about 3 inches and since the rear axle bolted right up to the springs the jeep looked like i had ten people sitting in the back lol so a call to 4wheelparts and $60 later i got it leveled back out with some 2.5 inch lift shackles.. dont look too bad either
Attached Thumbnails xj sport build-imag0342.jpg
RickyBobby is offline
Old 12-30-2012, 04:16 PM
  #14
Junior Member
Thread Starter

Join Date: Dec 2011
Location: oklahoma city
Posts: 33
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

For the rear shocks i just welded a bolt to the axle so i wouldn't have a bracket hanging down getting hung up on rocks. gave 4wheelparts the length from the upper mount on the body to where i welded on the bolt and told them what lift i was using and they did some math on their computer and gave me the right shocks since i was not using factory mounting locations, about $36 a piece for some pro-comp 3000 series
Attached Thumbnails xj sport build-imag0350.jpg
