raminboy

brakes in the process of being installed with new HD shafts

old stock 29 spline

diff in good shape

raminboy

brakes installed

pass rear

all new brake lines


drivers rear


The emergency brake cables were wrong. the correct ones are on back order for two weeks. will install when they show up. for now jeep is stationary

raminboy

got a few new additions to the trail setup. predator 2000 generator and on board air. the compressor runs off a 400 watt inverter that will be wired in soon (prob glove box) and an outlet put in the trunk.

plan to put inverter outlet here

raminboy

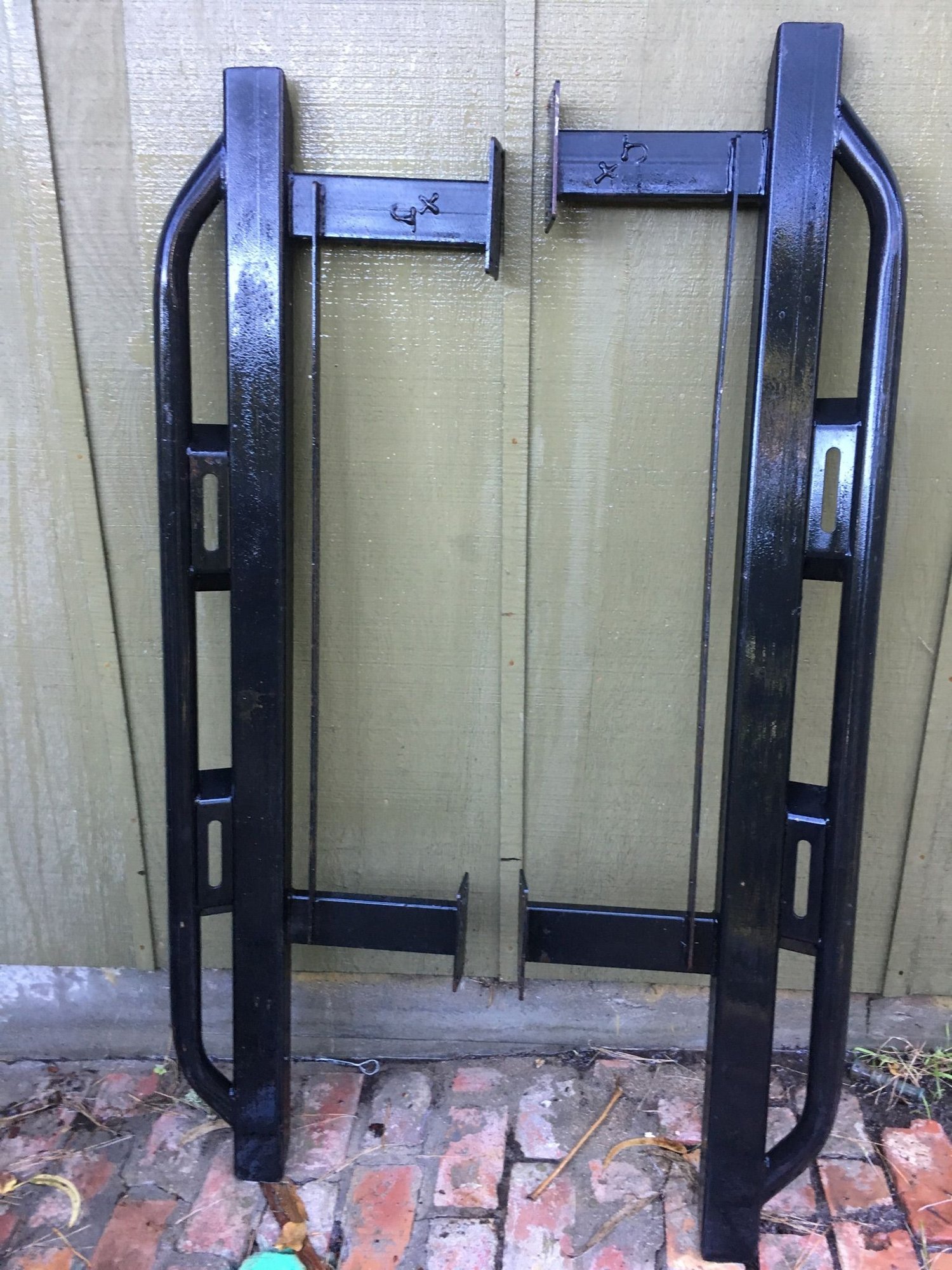

also scored a great deal on some JCR sliders for 300 bucks.... i have so much to do

LameXJ

Gotta say, I was expecting a blacked out jeep from your thread title. Looking good, though.

raminboy

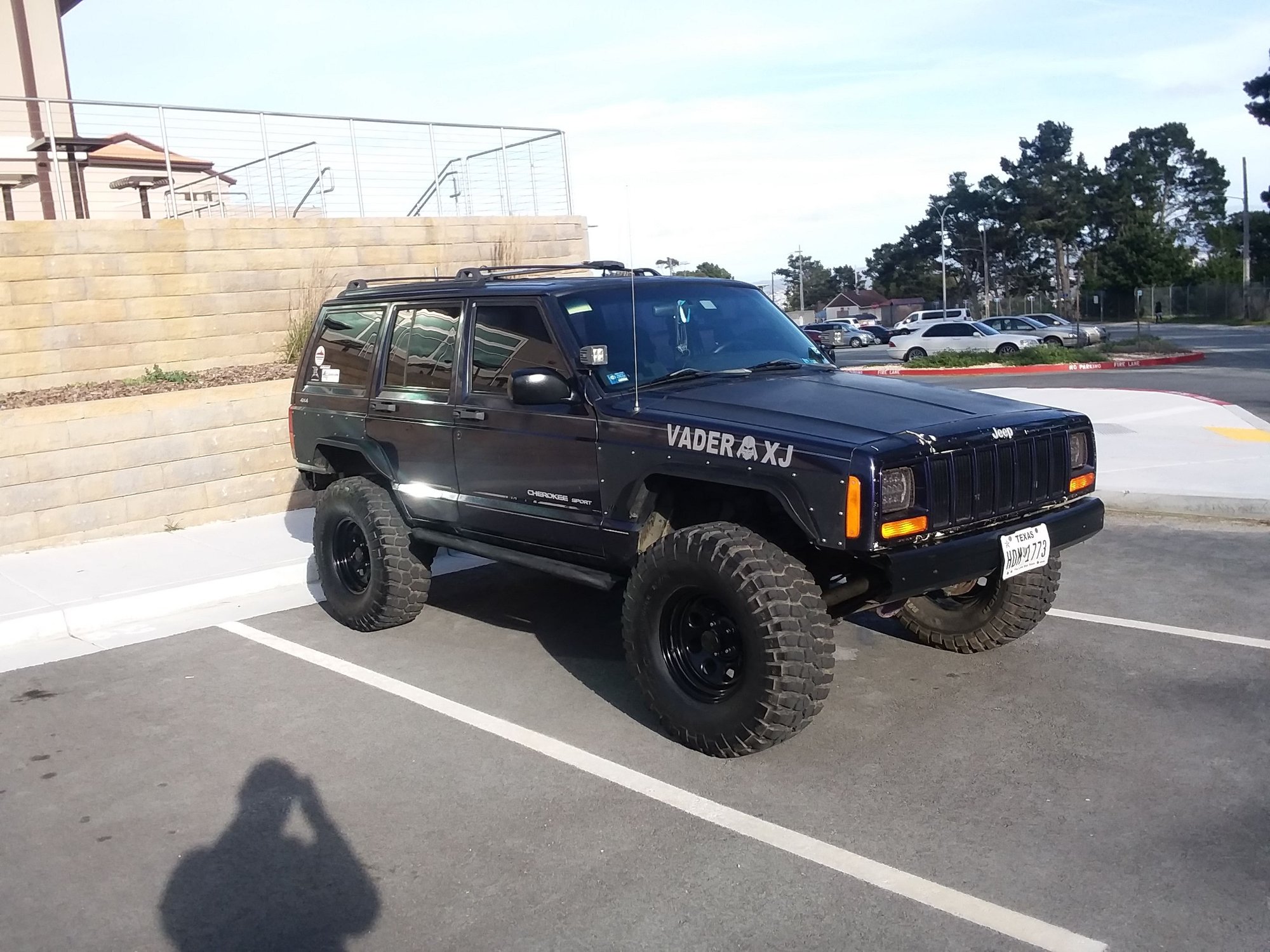

NEVER! lol... so many people ask me why i dont paint it black. its cause there are too many of them. its named Vader because it was thought to be dead and was brought back to life (when the engine blew) plus it sounds cool. and THANKS!!!!

unidentifiedbomb

Nice Jeep! Question, why the rear sway bar and that rear brake hose looks short.

raminboy

sway bar im tired of talking about... and we will see if its short. i dont think it is but ill find out next time i flex it

unidentifiedbomb

LMAO ummm ok

raminboy

sway bar was going to take off but left on because my father was worried about me not running one at all (front is gone)... doesnt hurt anything and it made him feel better.

the brake line... if you look at the previous pics befor the wheel is put on you can see the brake line still has some slack at full droop. (jeep was on a lift)

raminboy

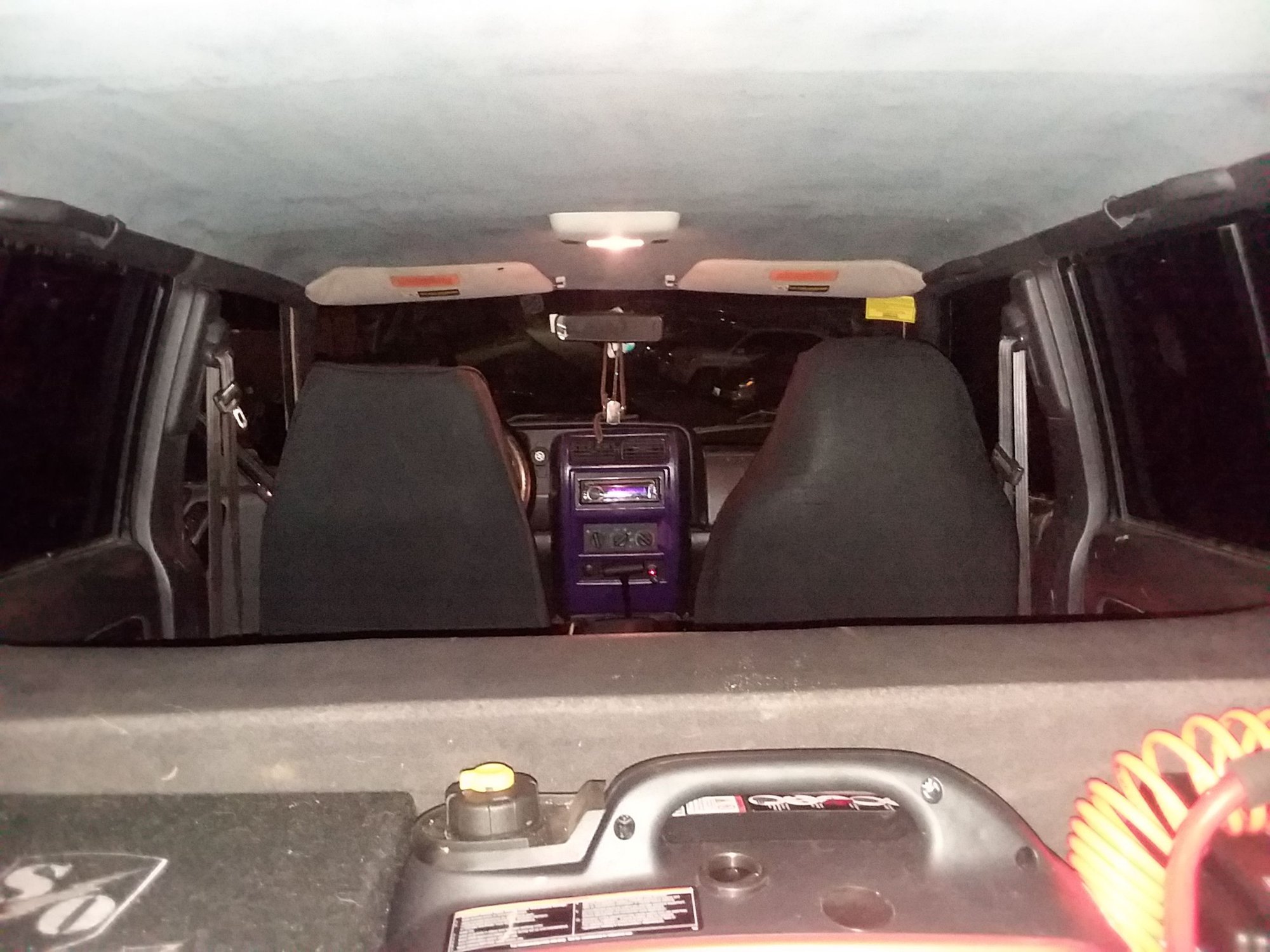

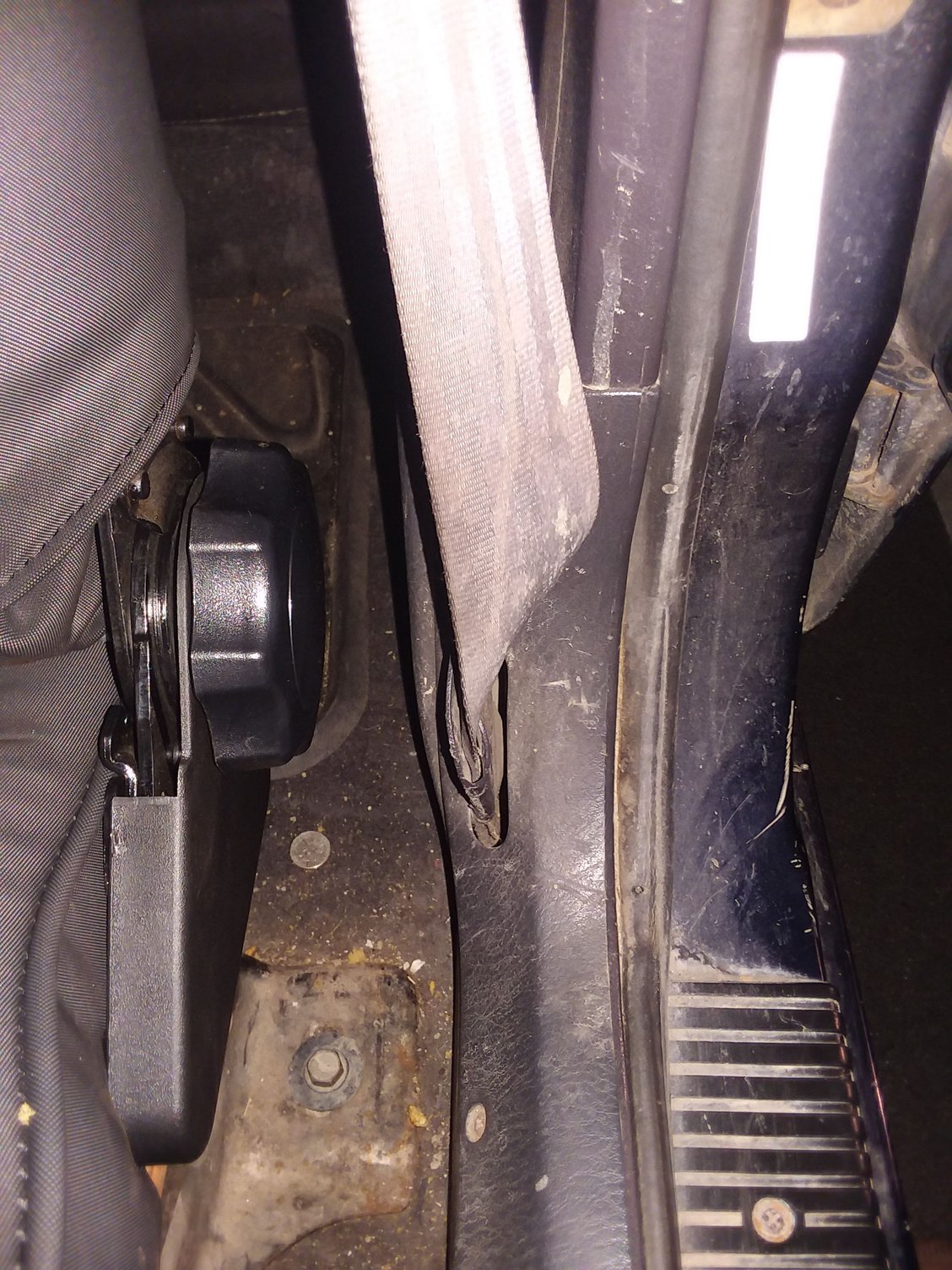

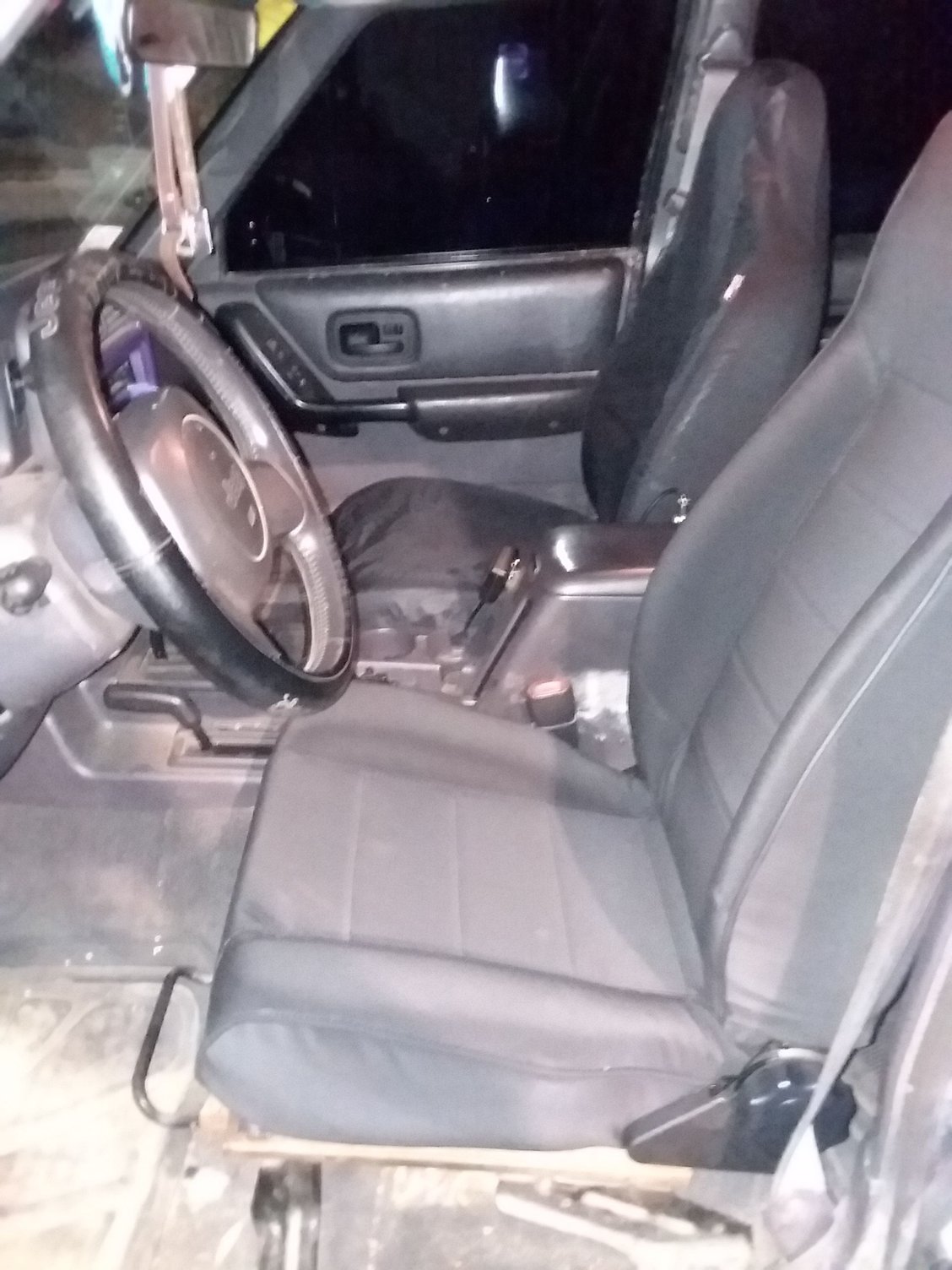

bought a rugged ridge direct replacement seat a few weeks back and finally got around to installing it. First thing it bolts to existing frame and the "denim" material feels almost part rubber. i have poured water on it and let it sit for a minute and none goes through the fabric, some type of vinyl. also, the instructions were wrong when it came to which direction to put the drop tabs on either driver side or passenger seat (they were reversed). luckily i have a good eye and noticed it would not have lined up right. another thing is, the seats shape and size look almost identical to OEM. however, you sit about an inch taller and the headrest does not come all the way behind your head. now this could be due to being use to 20 year old worn out seats, but we will see after they break in. other than that no issues and i am happy with how it turned out. I bought a dickies seat cover so the other side was black as well. So you can kind of see the difference between the rugged ridge (driver) and stock (passenger). Any questions just ask.


how instructions said to put brackets

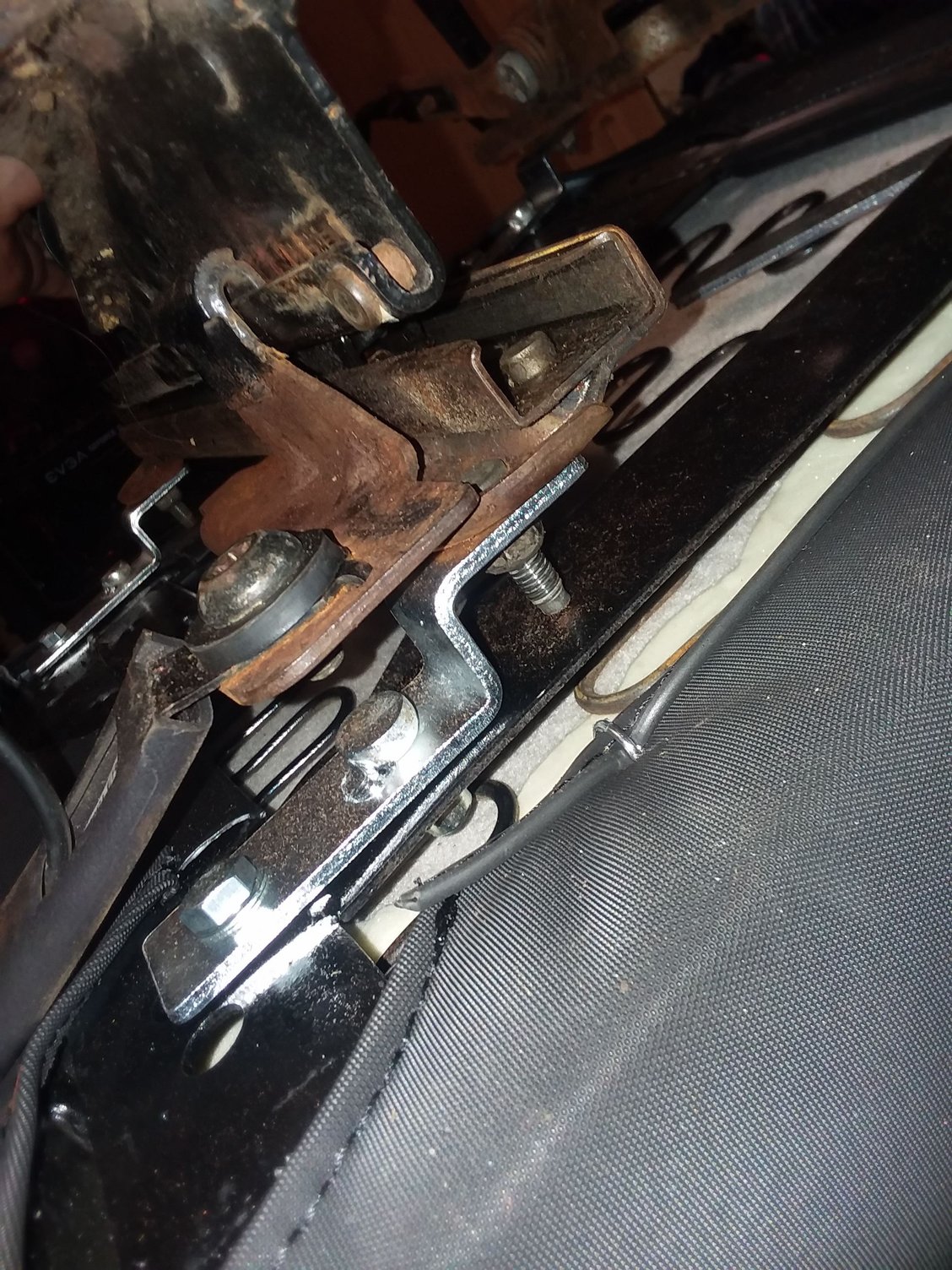

how brackets should be


bad instructions

raminboy

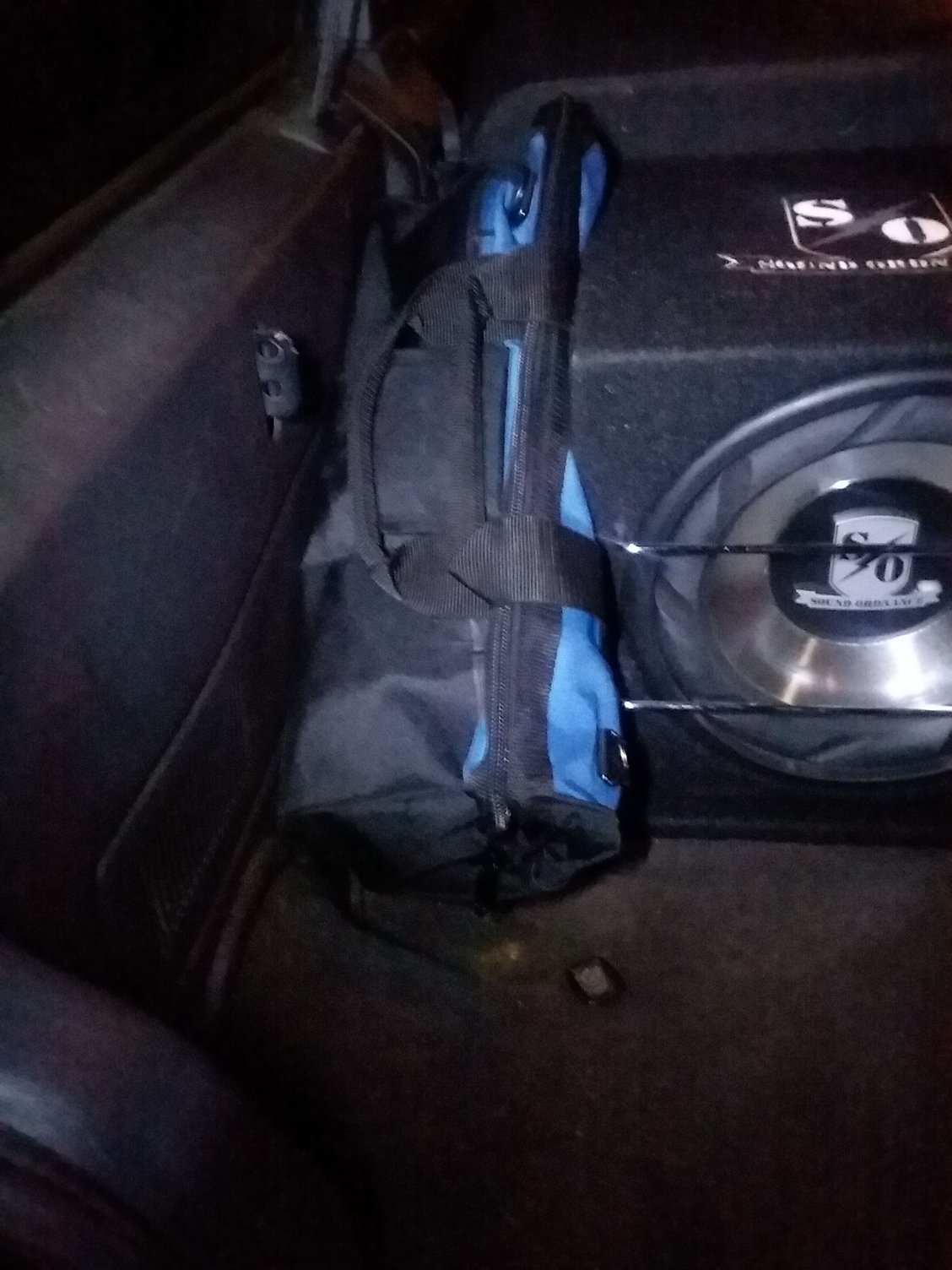

fixed my storage issue today, fit my 250+ tool set into this bag.




tool box, tools were previously in

raminboy

Think i might mount a corded impact here

Spencer_P

Looks great! Could you tell me your paint code? Thanks

raminboy

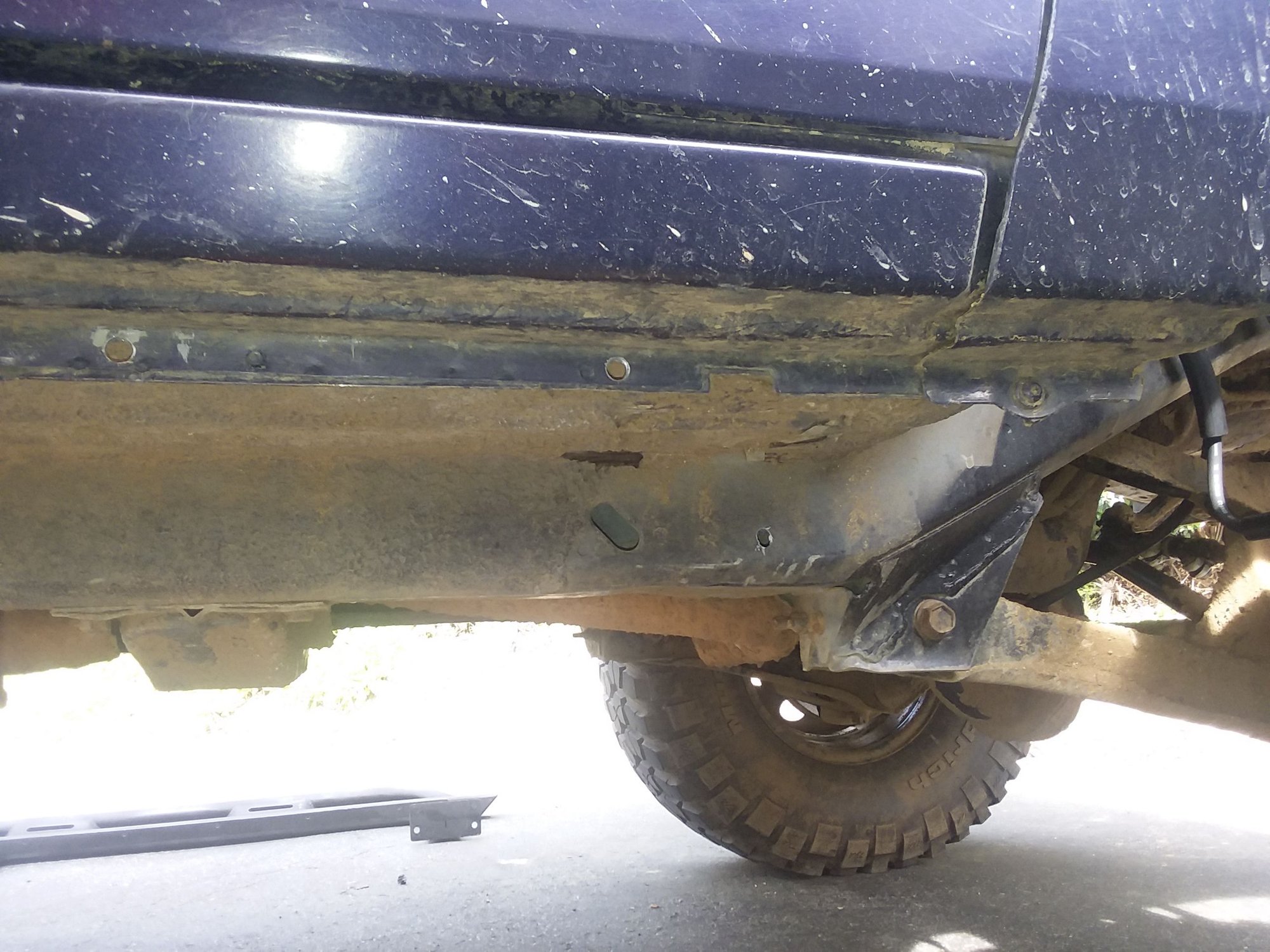

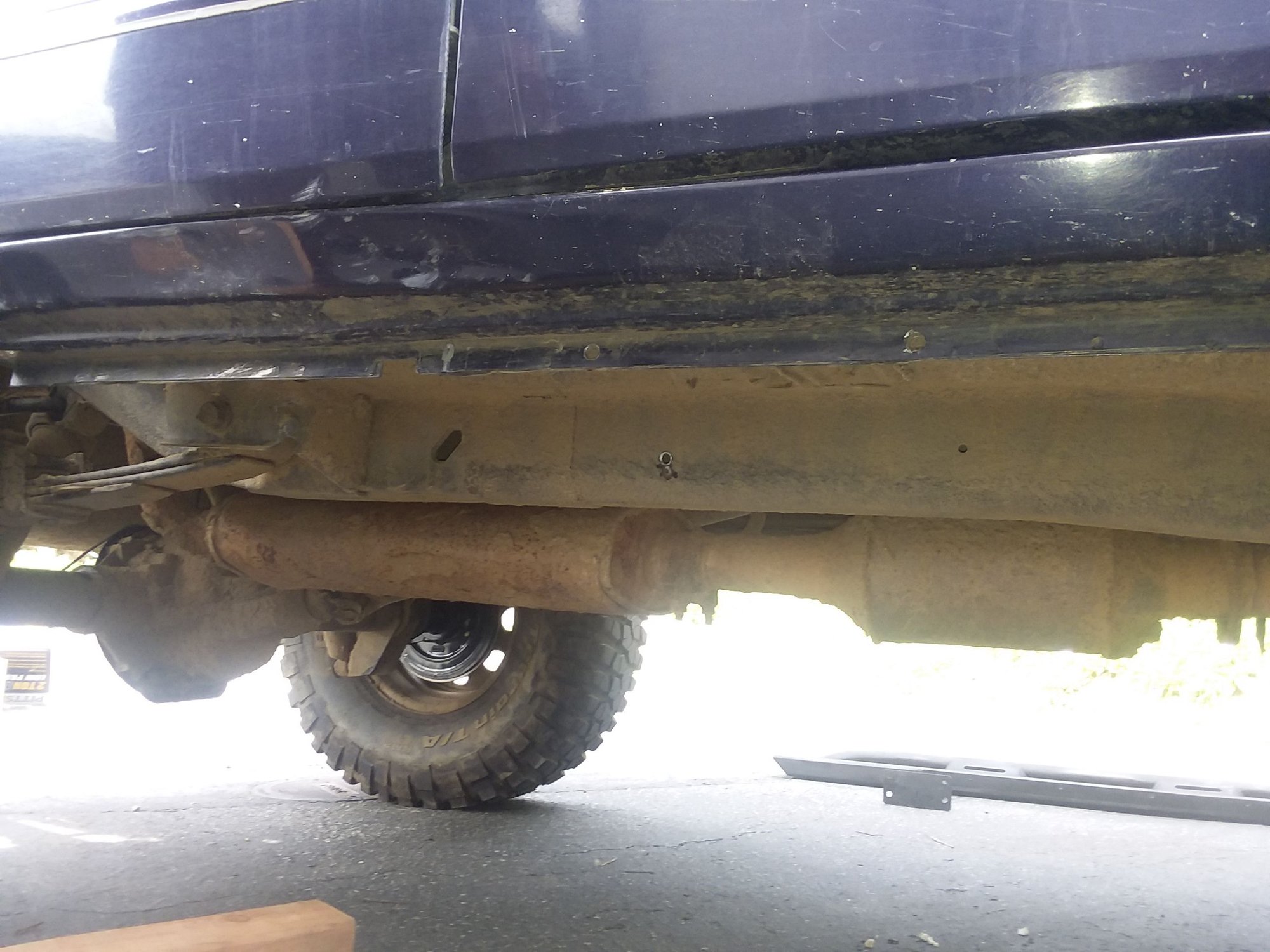

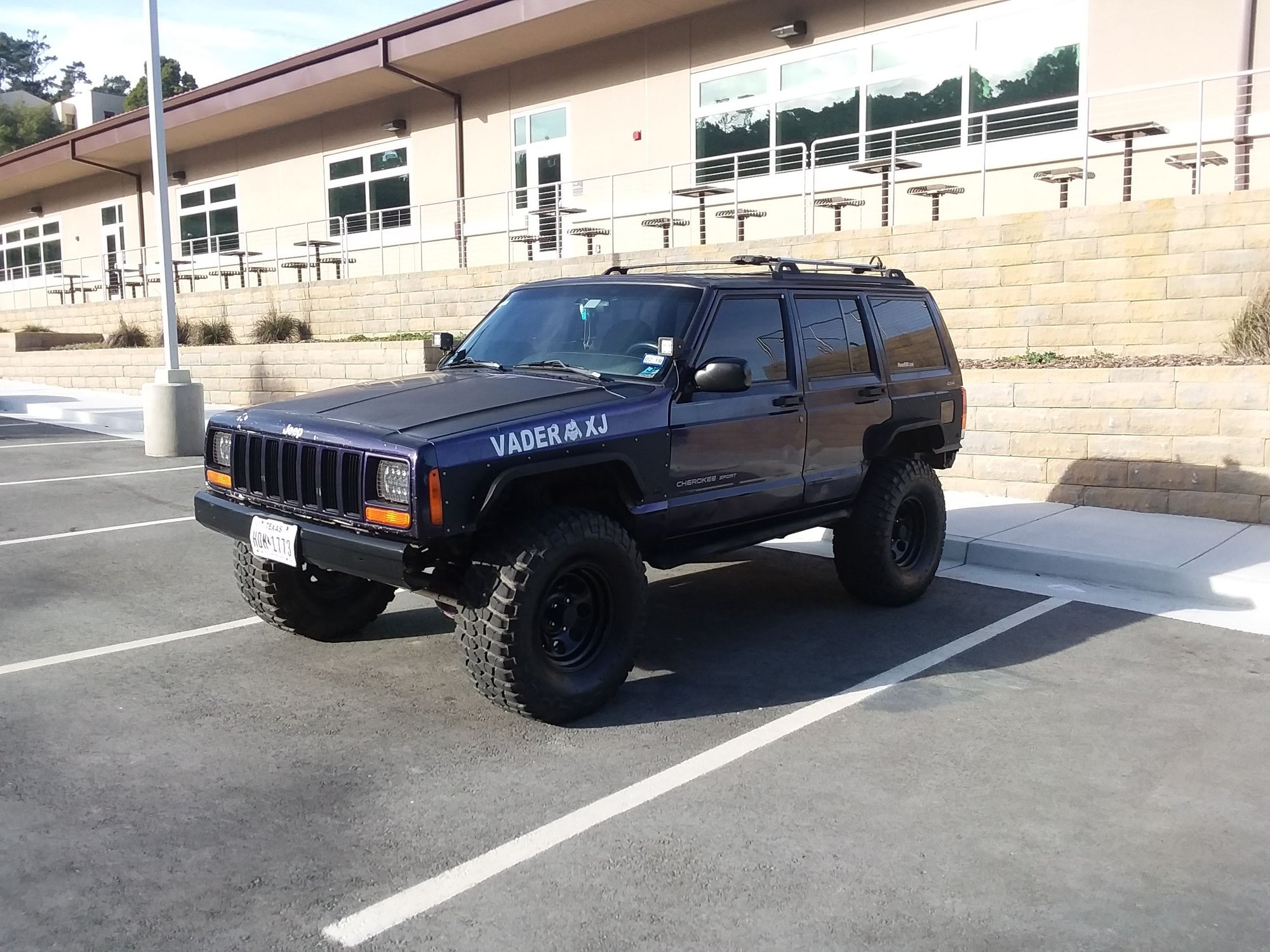

rock sliders installed. was a pain in the a**. still couldnt get the gaps exact. but i dont think they look bad
