Project never done
05-25-2015, 10:57 AM
#331
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster

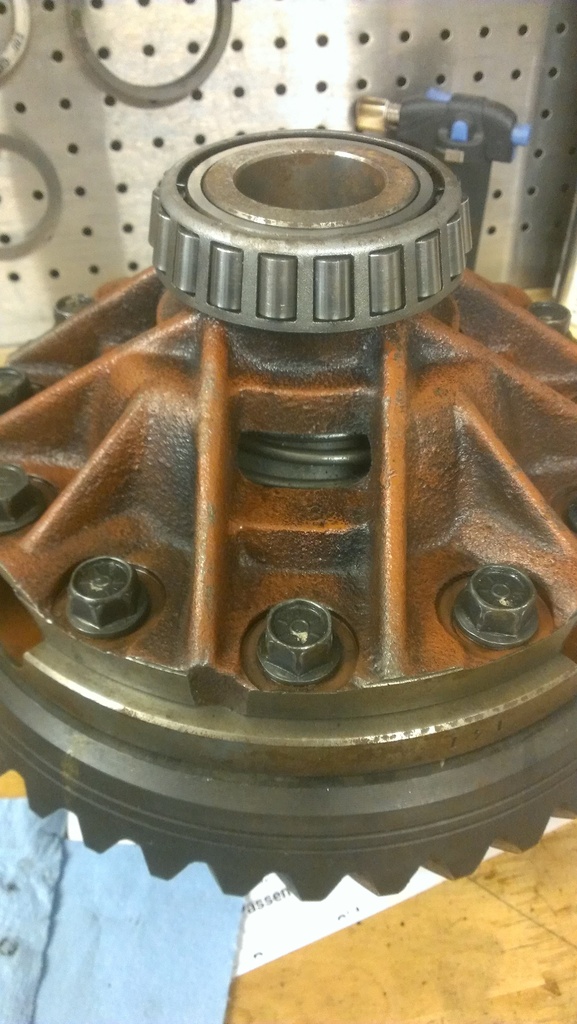

Picked up a spare carrier for the 14b with a grizzly locker installed in it the other day. Found a real good deal on craigslist and couldn't pass it up.
08-31-2015, 08:32 AM
#333
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster
Tahoe leafs gave a nice strech
09-24-2015, 01:29 PM
#334
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster
Almost ready to hit the trail. Gotta finish up a few small things. Can't wait.
10-16-2015, 02:05 PM
#335
CF Veteran
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
sweet looking build man. here's some things I ran into when I swapped and started wheeling, wish I had done these things before it ever left the garage:
broken frame side track bar bracket - needs heavy duty track bar brace
broken hi steer studs - needs double shear and ARP studs (and knuckle plating if you really want peace of mind)
additional steering box plating - a lot. I plated that whole inner area
a cage - I have cracks in my transmission tunnel from where it fatigued from all the twisting. sucks when you can't open your rear hatch
CV drivelines - blew the rear, no more CV's for me (also no street driving)
traction bar - bent 3 leaf springs so far
hope some of that helps. they're great once you work all the bugs out but my rig is trashed now
broken frame side track bar bracket - needs heavy duty track bar brace
broken hi steer studs - needs double shear and ARP studs (and knuckle plating if you really want peace of mind)
additional steering box plating - a lot. I plated that whole inner area
a cage - I have cracks in my transmission tunnel from where it fatigued from all the twisting. sucks when you can't open your rear hatch
CV drivelines - blew the rear, no more CV's for me (also no street driving)
traction bar - bent 3 leaf springs so far
hope some of that helps. they're great once you work all the bugs out but my rig is trashed now
Last edited by Atmos; 10-16-2015 at 02:07 PM.
10-22-2015, 08:30 PM
#336
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster
sweet looking build man. here's some things I ran into when I swapped and started wheeling, wish I had done these things before it ever left the garage:
broken frame side track bar bracket - needs heavy duty track bar brace
broken hi steer studs - needs double shear and ARP studs (and knuckle plating if you really want peace of mind)
additional steering box plating - a lot. I plated that whole inner area
a cage - I have cracks in my transmission tunnel from where it fatigued from all the twisting. sucks when you can't open your rear hatch
CV drivelines - blew the rear, no more CV's for me (also no street driving)
traction bar - bent 3 leaf springs so far
hope some of that helps. they're great once you work all the bugs out but my rig is trashed now
broken frame side track bar bracket - needs heavy duty track bar brace
broken hi steer studs - needs double shear and ARP studs (and knuckle plating if you really want peace of mind)
additional steering box plating - a lot. I plated that whole inner area
a cage - I have cracks in my transmission tunnel from where it fatigued from all the twisting. sucks when you can't open your rear hatch
CV drivelines - blew the rear, no more CV's for me (also no street driving)
traction bar - bent 3 leaf springs so far
hope some of that helps. they're great once you work all the bugs out but my rig is trashed now
10-22-2015, 08:44 PM
#338
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster

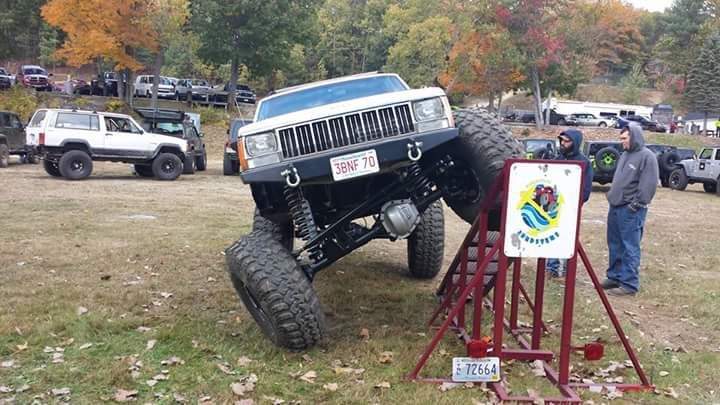

Some action from last week at crawling for a cure
11-25-2015, 01:52 PM
#339
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster

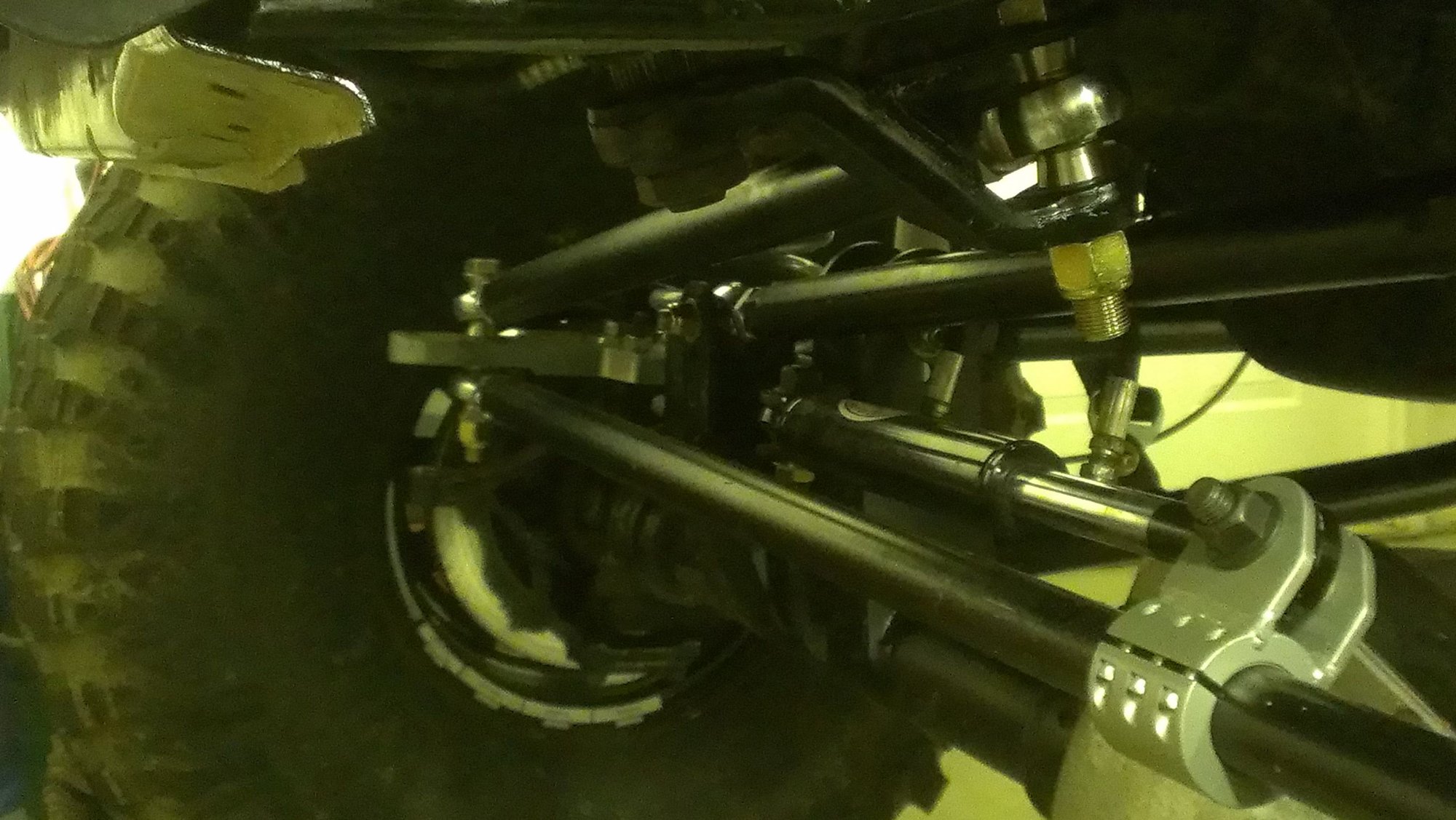

Got the ruffstuff 7/8 heim kit installed and full steering radius back. Had to move the draglink to the hole closer to the king pin so I could stay with a stock length pitman arm. Also got colthahauses hydro assist setup after it sitting in the garage for about a year. Made a nice double shear pitman arm too.
12-06-2015, 11:55 AM
#341
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster
The ram is the only part I didn't use. I ended up getting an 8" ram cause the 6" was a little to short but now the 8" is too long so I'm gonna have to limit it. Just not gonna hold the wheel at full lock till I get around to it. Works awsome tho.
12-06-2015, 11:59 AM
#342
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster
