Project "Cheep Cherokee"
09-19-2011, 09:25 PM
#152
CF Veteran
Thread Starter
Join Date: Sep 2010
Location: Milwaukee, WI
Posts: 21,168
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1987
Engine: Check
Worked a bit more on the door hinges.
The bottom passenger side hinge is done. Drilled a bigger hole and welded a stud in place facing upward just like the drivers side.
The holes on the top two hinges on the body side are drilled and ready to accept the larger pins that are on the door side. The top door side hinges will have the downward facing pins, and they are the ones that are going to be trouble. I need to drill holes for the new pins, and I need to drill through hardened steel.
Once that is done I will have all new, stainless steel door pins and hardware.
Drilling the holes with my titanium drill bit.
The bottom passenger side hinge is done. Drilled a bigger hole and welded a stud in place facing upward just like the drivers side.
The holes on the top two hinges on the body side are drilled and ready to accept the larger pins that are on the door side. The top door side hinges will have the downward facing pins, and they are the ones that are going to be trouble. I need to drill holes for the new pins, and I need to drill through hardened steel.
Once that is done I will have all new, stainless steel door pins and hardware.
Drilling the holes with my titanium drill bit.
09-19-2011, 09:28 PM
#153
CF Veteran
Thread Starter
Join Date: Sep 2010
Location: Milwaukee, WI
Posts: 21,168
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1987
Engine: Check
Bottom pin.
The bottom door side hinge will slide over this. The drivers side looks identical, but I didn't weld the pin on the drivers side.
The bottom door side hinge will slide over this. The drivers side looks identical, but I didn't weld the pin on the drivers side.
09-19-2011, 09:32 PM
#154
CF Veteran
Thread Starter
Join Date: Sep 2010
Location: Milwaukee, WI
Posts: 21,168
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1987
Engine: Check
The pin will be put thru the upper door side hinge and will be welded in place. Once I drill thru that damn steel.
Then it will slide on like this...
Then it will slide on like this...
09-19-2011, 09:47 PM
#160
CF Veteran
Thread Starter
Join Date: Sep 2010
Location: Milwaukee, WI
Posts: 21,168
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1987
Engine: Check
After all that was done I found I still had some energy left, and there was still beer in the fridge, so I began cleaning my front fenders.
09-20-2011, 09:19 AM
#163
CF Veteran
Thread Starter
Join Date: Sep 2010
Location: Milwaukee, WI
Posts: 21,168
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1987
Engine: Check
Thanks. I plan to have this truck forever, so I figure by not cutting corners and taking my time I will save myself headaches later.
09-20-2011, 09:26 AM
#164
CF Veteran
Thread Starter
Join Date: Sep 2010
Location: Milwaukee, WI
Posts: 21,168
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1987
Engine: Check

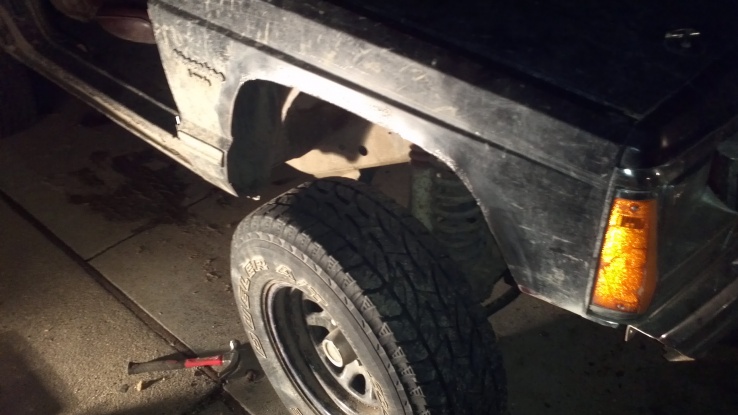

Pics of the trimmed fenders as promised.
I did a really rough job, though. As hard as I tried the fenders are just too rusted to get a really clean cut. If I want it to look factory clean, the quarters will need to be replaced.
Maybe that will happen. Maybe.
I did a really rough job, though. As hard as I tried the fenders are just too rusted to get a really clean cut. If I want it to look factory clean, the quarters will need to be replaced.
Maybe that will happen. Maybe.
09-20-2011, 09:37 AM
#165
Old School CF Moderator
Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes
on
3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Originally Posted by Gee oh Dee
Pics of the trimmed fenders as promised.
I did a really rough job, though. As hard as I tried the fenders are just too rusted to get a really clean cut. If I want it to look factory clean, the quarters will need to be replaced.
Maybe that will happen. Maybe.
I did a really rough job, though. As hard as I tried the fenders are just too rusted to get a really clean cut. If I want it to look factory clean, the quarters will need to be replaced.
Maybe that will happen. Maybe.
