Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

Project Blackout

Old 04-02-2010, 11:05 AM
  #1
Junior Member
Thread Starter

92greenXJ's Avatar

Join Date: Dec 2009
Location: Slapout, AL
Posts: 45
Year: 1992
Model: Cherokee
Engine: 4.0L high output
Default Project Blackout

I bought this XJ just after my birthday. I had a big plan for it with little money. I dont have a picture of when i first got it but i do have it with 31s and no lift.



[IMG]file:///C:/DOCUME%7E1/Danny/LOCALS%7E1/Temp/moz-screenshot-1.jpg[/IMG][IMG]file:///C:/DOCUME%7E1/Danny/LOCALS%7E1/Temp/moz-screenshot-2.jpg[/IMG]
Attached Images
92greenXJ is offline
Old 04-02-2010, 11:24 AM
  #2
Junior Member
Thread Starter

92greenXJ's Avatar

Join Date: Dec 2009
Location: Slapout, AL
Posts: 45
Year: 1992
Model: Cherokee
Engine: 4.0L high output
Default

next thing i did was paint the grille and headlight bezels...
Attached Images

Last edited by 92greenXJ; 04-02-2010 at 11:27 AM.
92greenXJ is offline
Old 04-02-2010, 11:30 AM
  #3
Honorary Moderator

96_xj's Avatar

Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

you should paint all of your grey trim black and smoke your lights out =]

check out my pictures for details on what i mean =]


Btw nice starting point!!! give us some details.

year? mileage? tranny? tcase? axles? gearing? all of the good stuff =]
96_xj is offline
Old 04-02-2010, 11:34 AM
  #4
Junior Member
Thread Starter

92greenXJ's Avatar

Join Date: Dec 2009
Location: Slapout, AL
Posts: 45
Year: 1992
Model: Cherokee
Engine: 4.0L high output
Default

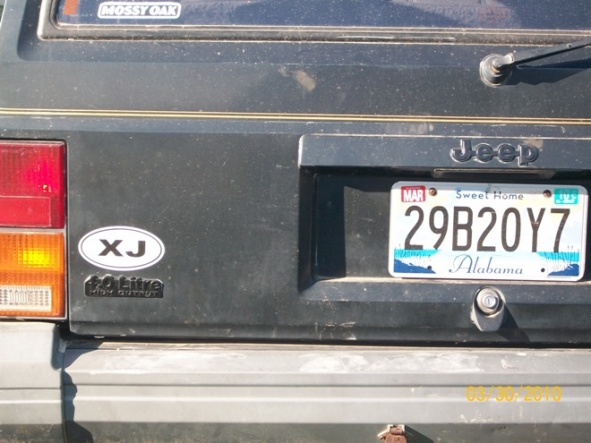

I then painted all but the front emblems and added the XJ sticker...
Attached Images
92greenXJ is offline
Old 04-02-2010, 11:37 AM
  #5
Junior Member
Thread Starter

92greenXJ's Avatar

Join Date: Dec 2009
Location: Slapout, AL
Posts: 45
Year: 1992
Model: Cherokee
Engine: 4.0L high output
Default

I plan on it i took the fender flares off and took off the trim itself. Im going to sand it and paint it tommorrow.

The jeep is a 1992 with D30 and D35, now about 4 inches and 31s. Automatic tranny as well.
92greenXJ is offline
Old 04-02-2010, 11:44 AM
  #6
Junior Member
Thread Starter

92greenXJ's Avatar

Join Date: Dec 2009
Location: Slapout, AL
Posts: 45
Year: 1992
Model: Cherokee
Engine: 4.0L high output
Default

I then added the lift and painted all the other chrome. Door handles, mirrors, etc.

Put V8 grand cherokee coils with spacers and did a dodge dakota leaf conversion..
Attached Images
92greenXJ is offline
Old 04-02-2010, 11:48 AM
  #7
Junior Member
Thread Starter

92greenXJ's Avatar

Join Date: Dec 2009
Location: Slapout, AL
Posts: 45
Year: 1992
Model: Cherokee
Engine: 4.0L high output
Default

pictures of the springs...
Attached Images
92greenXJ is offline
Old 04-02-2010, 11:52 AM
  #8
Junior Member
Thread Starter

92greenXJ's Avatar

Join Date: Dec 2009
Location: Slapout, AL
Posts: 45
Year: 1992
Model: Cherokee
Engine: 4.0L high output
Default

Added the glasspack for a little tone and the intake to take in more air. I still need to make a heat sheild...
Attached Images
92greenXJ is offline
Old 04-02-2010, 11:58 AM
  #9
Junior Member
Thread Starter

92greenXJ's Avatar

Join Date: Dec 2009
Location: Slapout, AL
Posts: 45
Year: 1992
Model: Cherokee
Engine: 4.0L high output
Default

things in the future:

Roof Rack with high lift jack
smoked lights
painted side trim with no fender flares
4.10 gears
lockers
lift coils for the front
92greenXJ is offline
Old 04-02-2010, 12:03 PM
  #10
Honorary Moderator

96_xj's Avatar

Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

try this make it out of thick lexan or sheet metal
Originally Posted by cj11 View Post
and a template for the sheild
96_xj is offline
Old 04-02-2010, 12:15 PM
  #11
CF Veteran

offroadnut36's Avatar

Join Date: Aug 2008
Location: Hollidaysburg, PA
Posts: 5,603
Year: 1990
Model: Cherokee
Engine: 4.0 lt. 242 cu.in.
Default

Lookin good man!
offroadnut36 is offline
Old 04-02-2010, 01:47 PM
  #12
Junior Member
Thread Starter

92greenXJ's Avatar

Join Date: Dec 2009
Location: Slapout, AL
Posts: 45
Year: 1992
Model: Cherokee
Engine: 4.0L high output
Default

Originally Posted by offroadnut36 View Post
Lookin good man!
Thanks! I love working on it. The best part it performs great. The leafs flex a lot more than I ever expected and the ride isnt that bad either.
92greenXJ is offline
Old 04-02-2010, 01:54 PM
  #13
Junior Member
Thread Starter

92greenXJ's Avatar

Join Date: Dec 2009
Location: Slapout, AL
Posts: 45
Year: 1992
Model: Cherokee
Engine: 4.0L high output
Default

Took the flares and rubber side trim off. Now I gotta take a razor blade and some 320 to the sides. Will have it painted tomorrow...Black or herculiner to the sides?
Attached Images
92greenXJ is offline
Old 04-02-2010, 01:55 PM
  #14
Junior Member
Thread Starter

92greenXJ's Avatar

Join Date: Dec 2009
Location: Slapout, AL
Posts: 45
Year: 1992
Model: Cherokee
Engine: 4.0L high output
Default

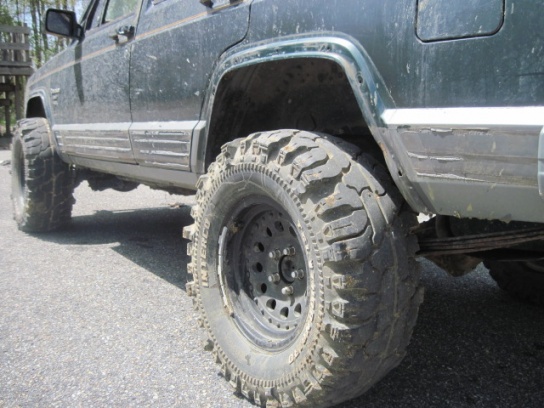

couple other pics...
Attached Images
92greenXJ is offline
Old 04-02-2010, 02:39 PM
  #15
Senior Member

tactical40cal's Avatar

Join Date: Jan 2010
Location: South Louisiana
Posts: 846
Year: 1990
Model: Cherokee
Engine: 4.0
Default

nice rig!!! how u like the thornbirds? i love the look but heard they DON'T pull unless u air them down to like 4 psi...
tactical40cal is offline
