$200 ZJ Build

Old 12-20-2016, 09:27 PM
  #1
Senior Member
Thread Starter

onew1ckedxj's Avatar

Join Date: Aug 2010
Location: Midland Park, NJ
Posts: 826
Year: 1998
Model: Cherokee
Engine: 4.0L
Default $200 ZJ Build

Decided to make a build thread for my 1998 Grand Cherokee Laredo 4.0, i picked it up last march from a friend of a friend for $200. It had 270k miles on the clock and a blown up Np242, shortly after purchasing the jeep i ran to the junkyard to find a replacement np242 and later that same day i installed the new to me 242 and had a running a driving jeep for a total cost of $260 from that time till about a few months ago i had just planned to keep it stock and daily it to keep mileage off of my 2001 Trans am which had been my daily. But recently i have lifted it slightly consisting of 2" spacers up front and some V8 zj front coils in the rear and found a decent used set of Cooper Discover AT3s which i mounted on brand new pro comp steel wheels. I plan to keep the jeep as my daily but i also plan to make it a very capable rig off road, so any mods that i do im going to keep street friendly . .

List of modifications i have done so far:

- Upgraded tie rod to V8 tie rod
- Stock tcase skid and warn skid on dana 35
- Added Trailer Hitch for recovery, shackle hitch and tow strap
- 2" BB up front, V8 coils back
- Zone Shocks
- IRO Adjustable Control Arms
- 31x10.5x15 Cooper Discover AT3
- CB Radio and Antenna
- Trimmed front bumper
- Painted grill/ dash/ rockers satin black and debaged

Some near future modifications that i have are:

- Swap out dana 35 to ford 8.8 (Dana 35 is on its way out so i plan to do this very soon)
- Level front suspension to rear (3.5" coils should do the trick)
- Lock dana 30
- Swap out front seats for WJ seats (current seats are shot)
- Redo falling headliner
- 33s

Last edited by onew1ckedxj; 01-06-2017 at 05:50 PM. Reason: Update
onew1ckedxj is offline
Old 12-20-2016, 09:37 PM
  #2
Senior Member
Thread Starter

onew1ckedxj's Avatar

Join Date: Aug 2010
Location: Midland Park, NJ
Posts: 826
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

This is the jeep the day i bought it . .

Name:  0407161723a_zpsjvwdfdp2.jpg
Views: 25
Size:  321.4 KB

The bad tcase

Name:  Snapchat-1851134497161535448_zpsalr8uzrc.jpg
Views: 25
Size:  93.1 KB

And here is how it currently sits . .

Name:  1221161332c_zpsyyxqb7rl.jpg
Views: 29
Size:  289.0 KB

Name:  1221161332b_zpsk1jybaft.jpg
Views: 25
Size:  272.7 KB

Name:  1221161331a_zpszlqkchec.jpg
Views: 24
Size:  277.4 KB

Name:  1221161332a_zpsxukcipik.jpg
Views: 24
Size:  294.4 KB

And one of my trans am
Name:  transam_zpsafxuw8d0.jpg
Views: 23
Size:  260.0 KB

Last edited by onew1ckedxj; 12-21-2016 at 02:33 PM. Reason: Better quality pics
onew1ckedxj is offline
Old 12-21-2016, 01:14 PM
  #3
Senior Member
Thread Starter

onew1ckedxj's Avatar

Join Date: Aug 2010
Location: Midland Park, NJ
Posts: 826
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Some pics of what ive done already . .

Skids, Hitch, Shocks, F>R Coils, 31" AT3s
Name:  1221161331c_zpsqy740i0t.jpg
Views: 32
Size:  257.0 KB

Tj gas bezel, CB antenna
Name:  1221161331b_zps3byawjjx.jpg
Views: 22
Size:  301.1 KB

Painted wood grain black, Sony headunit
Name:  1220161431a_zpsrzhhhlfm.jpg
Views: 25
Size:  202.9 KB

Cobra CB under dash
Name:  1220161431_zpsfobm8jfx.jpg
Views: 22
Size:  197.6 KB
onew1ckedxj is offline
Old 12-21-2016, 01:25 PM
  #4
Senior Member
Thread Starter

onew1ckedxj's Avatar

Join Date: Aug 2010
Location: Midland Park, NJ
Posts: 826
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Some wheeling pics from last weekend

Name:  zj1_zpsmd6yj1px.jpg
Views: 22
Size:  109.8 KB

Name:  zj3_zps5zpbi31h.jpg
Views: 23
Size:  124.1 KB

Name:  zj4_zpsxiktvwfb.jpg
Views: 23
Size:  105.8 KB

Name:  zj2_zpsccshicrn.jpg
Views: 31
Size:  124.2 KB

Name:  zj5_zpssjcajh6m.jpg
Views: 24
Size:  176.5 KB
onew1ckedxj is offline
Old 12-21-2016, 02:13 PM
  #5
Senior Member

JSJJ388's Avatar

Join Date: Jul 2016
Location: NC
Posts: 651
Year: 1994
Model: Grand Cherokee
Engine: 4.0
Default

Nice, Id add some sway bar dqs to your list. cheap and easy
JSJJ388 is offline
Old 12-21-2016, 02:36 PM
  #6
Senior Member
Thread Starter

onew1ckedxj's Avatar

Join Date: Aug 2010
Location: Midland Park, NJ
Posts: 826
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Thanks! i forgot to mention the rear has no sway bar and the front i may brew up some DIY disconnects, for now i just unbolt the links lol . . i really need to extend bump stops in the front as well
onew1ckedxj is offline
Old 12-21-2016, 09:38 PM
  #7
CF Veteran

Mr. Pink's Avatar

Join Date: Oct 2012
Location: Capac, Mi
Posts: 1,127
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

Nice i too got my ZJ for $200 but it needed a trans. I also have a link to my build thread in my signature lol.

Last edited by Mr. Pink; 12-21-2016 at 09:43 PM.
Mr. Pink is offline
Old 12-21-2016, 10:44 PM
  #8
Senior Member
Thread Starter

onew1ckedxj's Avatar

Join Date: Aug 2010
Location: Midland Park, NJ
Posts: 826
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by Mr. Pink View Post
Nice i too got my ZJ for $200 but it needed a trans. I also have a link to my build thread in my signature lol.
Haha nice! i just checked out your build, i see you are swapping in an 8.8 so ill be following haha i think im going to go the same route with the IRO kit, im debating now if i pull an 8.8 with 3.55s and run it and worry about regearing down the road or if i pull an 8.8 with 4.10s and just regear the front of swap in a d30 with 4.10s . . . hmmmm
onew1ckedxj is offline
Old 12-22-2016, 05:53 AM
  #9
CF Veteran

Mr. Pink's Avatar

Join Date: Oct 2012
Location: Capac, Mi
Posts: 1,127
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

i am keeping mine at 3.73 for now because it wont be driven on the road. if i step up to 35's i'll regear to 4.56 or 4.88.
Mr. Pink is offline
Old 12-22-2016, 12:59 PM
  #10
Senior Member
Thread Starter

onew1ckedxj's Avatar

Join Date: Aug 2010
Location: Midland Park, NJ
Posts: 826
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by Mr. Pink View Post
i am keeping mine at 3.73 for now because it wont be driven on the road. if i step up to 35's i'll regear to 4.56 or 4.88.
Yea i think im gona find one with 3.55s and LSD and run it until i go with bigger tires then ill worry about re gearing
onew1ckedxj is offline
Old 12-22-2016, 06:42 PM
  #11
CF Veteran

Mr. Pink's Avatar

Join Date: Oct 2012
Location: Capac, Mi
Posts: 1,127
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

good luck, the axle code your looking is D4.
Mr. Pink is offline
Old 12-26-2016, 02:53 PM
  #12
Senior Member
Thread Starter

onew1ckedxj's Avatar

Join Date: Aug 2010
Location: Midland Park, NJ
Posts: 826
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

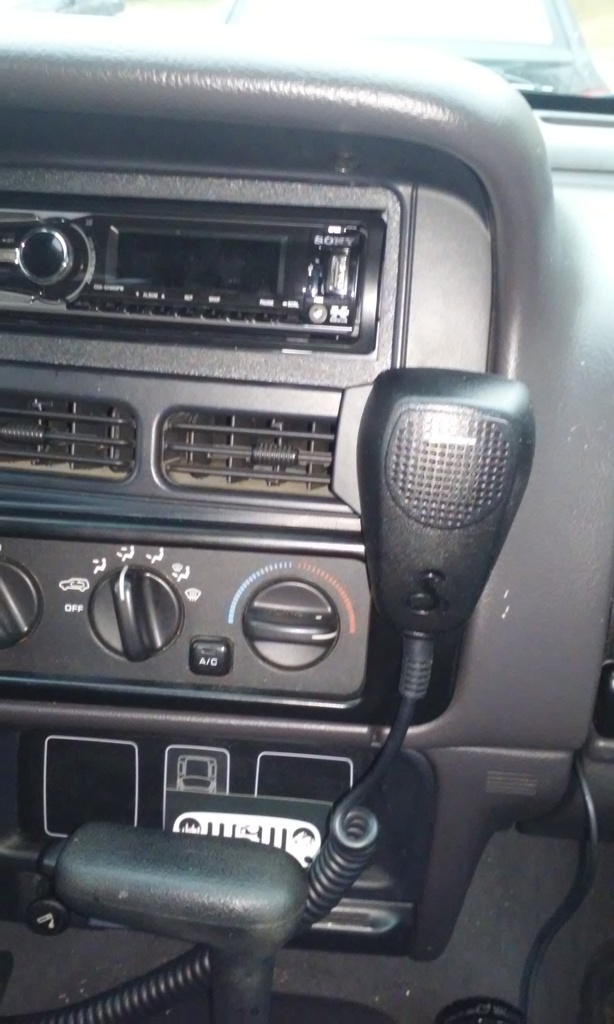

Not a big update but took some time today to mount a maglite in the jeep and also added a mount for the cb mic

Name:  1226161500_zpsbkevm87y.jpg
Views: 27
Size:  189.4 KB

Name:  1226161513_zpscv4g0ewp.jpg
Views: 27
Size:  183.8 KB

Name:  1226161513a_zpskdp64icp.jpg
Views: 25
Size:  186.4 KB
onew1ckedxj is offline
Old 12-28-2016, 07:46 AM
  #13
Newbie

Join Date: Dec 2016
Posts: 26
Model: Cherokee
Default

Nice!! Love seeing those cheap builds.
shawnster88 is offline
Old 12-28-2016, 09:40 PM
  #14
Senior Member
Thread Starter

onew1ckedxj's Avatar

Join Date: Aug 2010
Location: Midland Park, NJ
Posts: 826
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by shawnster88 View Post
Nice!! Love seeing those cheap builds.
Haha thanks!
onew1ckedxj is offline
Old 01-06-2017, 05:02 PM
  #15
Senior Member
Thread Starter

onew1ckedxj's Avatar

Join Date: Aug 2010
Location: Midland Park, NJ
Posts: 826
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

So tomorrow i plan to pull the 8.8 for the zj, decided i will pull one with 3.73s and LSD, for the front axle ill be pulling a 93-95 ZJ d30 with matching 3.73s as they are plentiful at the junkyard . . Although last time i was at the junkyard i found a few XJs with the v6 auto, does anyone know off hand what gear ratios were commonly found in the v6 cherokees?
onew1ckedxj is offline
