LAS VEGAS XJ GROUP-----> 1st ROLL CALL.
Senior Member
Joined: Sep 2010
Posts: 617
Likes: 0
From: Las Vegas
Year: 1996
Model: Cherokee
Engine: 4.0
Originally Posted by Photojared
It doesn't cure nor mask death wobble. If you have DW then somethings wrong.
Senior Member
Joined: Apr 2014
Posts: 840
Likes: 0
From: las vegas, nv
Year: 1991
Model: Cherokee
Engine: I6 H.O, 99 manifold, APN header, neon injectors, cowl intake, screamin demon ignition system
I'm sure it would. I mean its a hydraulic ram with a ton of force. With proper mounting it would cover up a lot of movement
Member
Joined: Dec 2013
Posts: 247
Likes: 0
From: Las Vegas
Year: 1996
Model: Cherokee
Engine: 4.0
It would ultimately depend on where the death wobble is coming from. With Hydraulic Assist a ram is mounted from the axle to the tie-rod or the drag link.
If the ram is mounted to the drag link and you have slop in the steering box or pitman arm connections then you may be able to 'mask' the wobble. If you have anything loose in the lower drag link connection, the tie-rod ends, the wheel bearings or the ball-joints then the ram will not mask anything.
If the ram is mount to the tie-rod and you have slop in the steering box, pitman arm or drag link then the ram might 'mask' the wobble. Anything loose between the ram and wheels will not be masked at all.
Another likely candidate for wobble would be tire balance issues which will probably be felt in the steering wheel/vehicle shaking no matter what.
If you manage to mask anything you may not feel the wobble at the steering wheel at all but it may still be happening at the wheels and will eventually cause more wear or damage to any and all mentioned components.
Long winded, I know but my point is to use Hydraulic Assist to increase steering force but don't rely on it to mask death wobble. Cure the death wobble first.
If the ram is mounted to the drag link and you have slop in the steering box or pitman arm connections then you may be able to 'mask' the wobble. If you have anything loose in the lower drag link connection, the tie-rod ends, the wheel bearings or the ball-joints then the ram will not mask anything.
If the ram is mount to the tie-rod and you have slop in the steering box, pitman arm or drag link then the ram might 'mask' the wobble. Anything loose between the ram and wheels will not be masked at all.
Another likely candidate for wobble would be tire balance issues which will probably be felt in the steering wheel/vehicle shaking no matter what.
If you manage to mask anything you may not feel the wobble at the steering wheel at all but it may still be happening at the wheels and will eventually cause more wear or damage to any and all mentioned components.
Long winded, I know but my point is to use Hydraulic Assist to increase steering force but don't rely on it to mask death wobble. Cure the death wobble first.
Senior Member
Joined: Apr 2014
Posts: 840
Likes: 0
From: las vegas, nv
Year: 1991
Model: Cherokee
Engine: I6 H.O, 99 manifold, APN header, neon injectors, cowl intake, screamin demon ignition system

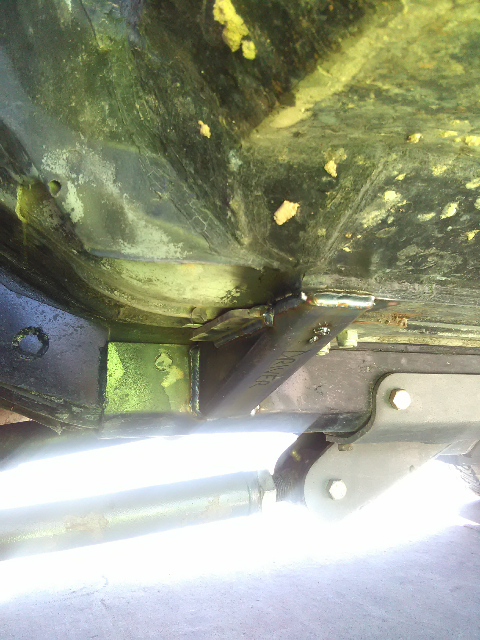

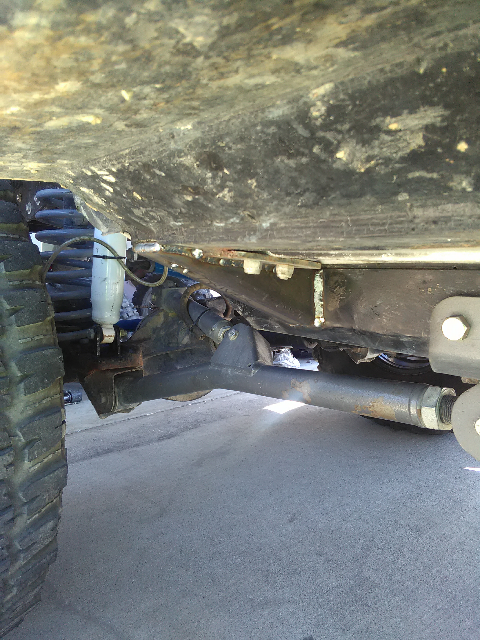

Started making the brackets to tie my cage into the frame. At the same time it ties the mini boat sides in too
Senior Member
Joined: Apr 2014
Posts: 840
Likes: 0
From: las vegas, nv
Year: 1991
Model: Cherokee
Engine: I6 H.O, 99 manifold, APN header, neon injectors, cowl intake, screamin demon ignition system
Tapered inserts got here from Barnes 4x4 today. Tomorrow I'll start on flipping my steering to under the knuckle and hopefully soon I'll be getting hydro assist
Junior Member
Joined: May 2016
Posts: 95
Likes: 0
From: Las Vegas
Year: 1997 Country
Model: Cherokee
Engine: 4.0 injector upgrade, flexalite fan and radiator, screaming demon ignition, coil wires, header
I used a motor style configuration and brackets to tie my cage in to my frame it allowed the body not to be as rigid.
Started making the brackets to tie my cage into the frame. At the same time it ties the mini boat sides in too
Attachment 291402
Attachment 291403
Attachment 291402
Attachment 291403
Junior Member
Joined: May 2016
Posts: 95
Likes: 0
From: Las Vegas
Year: 1997 Country
Model: Cherokee
Engine: 4.0 injector upgrade, flexalite fan and radiator, screaming demon ignition, coil wires, header
Senior Member
Joined: Apr 2014
Posts: 840
Likes: 0
From: las vegas, nv
Year: 1991
Model: Cherokee
Engine: I6 H.O, 99 manifold, APN header, neon injectors, cowl intake, screamin demon ignition system
Crazy! Or Fab where I bought my corner panel protection officially closed down on July 1st
CF Veteran
Joined: Feb 2011
Posts: 1,944
Likes: 0
From: Henderson, NV
Year: 1999
Engine: 4.0L

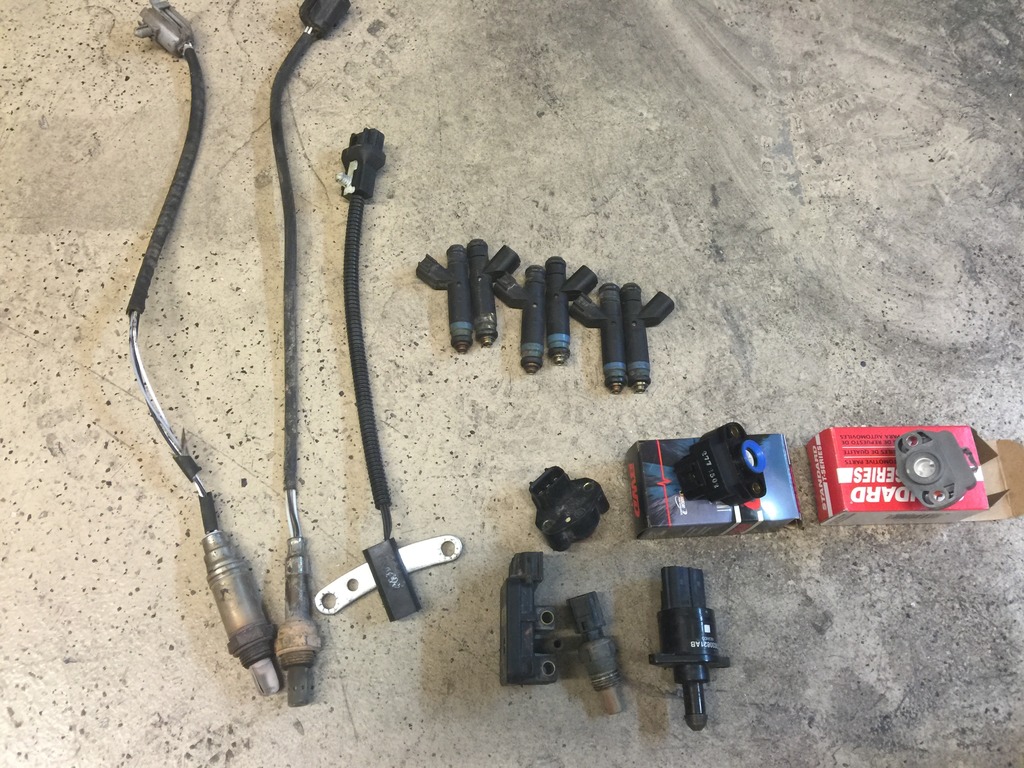

So I have this pile of old jeep sensors that I don't need. Anyone need them? $40
There's 2 02 sensors (front and rear)
3 TPS
1 coolant temp
CPS (brand new)
MAF?
IAC
6 stock '99 injectors.
There's 2 02 sensors (front and rear)
3 TPS
1 coolant temp
CPS (brand new)
MAF?
IAC
6 stock '99 injectors.
