XJ Exhaust Manifold
#1
Junior Member
Thread Starter
Join Date: Dec 2009
Location: Southern Oregon Valley
Posts: 52
Likes: 0
Received 6 Likes
on
5 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 LTR
XJ Exhaust Manifold
As to be expected, my '96 XJ has an exhaust manifold full of cracks and I am considering replacing it wth one of those manifolds that has two flex sections in it - I think it's Dorman. Any comments?
#3
CF Veteran
Join Date: Oct 2015
Posts: 7,355
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
Those are the ones that come on the '00 and '01's if I am not mistaken. The ones using the 0331 head. On those heads one of the ports are larger, can't remember if it is intake or exhaust, then on the head you have. Thinking it is exhaust and wondering if this will create any leaks if you try and do it.
#4
CF Veteran
Join Date: Feb 2012
Location: central IN
Posts: 2,282
Likes: 0
Received 15 Likes
on
11 Posts
Year: 1997
Engine: 4.0
all of the ports on the 0331 head are smaller than the previous years.
OP: if you do not want an aftermarket header for it i'd look for a factory pre-00 manifold. have someone check and then repair if necessary. install new motor mounts (prob just the drivers side is bad) and carry on.
OP: if you do not want an aftermarket header for it i'd look for a factory pre-00 manifold. have someone check and then repair if necessary. install new motor mounts (prob just the drivers side is bad) and carry on.
Last edited by s346k; 08-02-2017 at 05:55 AM.
#5
Junior Member
Thread Starter
Join Date: Dec 2009
Location: Southern Oregon Valley
Posts: 52
Likes: 0
Received 6 Likes
on
5 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 LTR
Thanks to all for your replies. Since the head that uses the flex manifold apparently has ports either larger or smaller than the 1996 head, I'll use a different manifold.
Is exhaust heat the reason for the common motor mount failure on the left?
Is exhaust heat the reason for the common motor mount failure on the left?
#6
CF Veteran
Join Date: Feb 2012
Location: central IN
Posts: 2,282
Likes: 0
Received 15 Likes
on
11 Posts
Year: 1997
Engine: 4.0
i don't think so. the natural torque of the engine is most likely what kills the mounts. they are very easy to change with the exhaust etc out of the way. if i had my factory one removed i'd offer it to you. i had a crack near the collector welded a couple years ago and put it back on. it has been fine. i have a full on new exhaust sitting in the garage patiently waiting. coated long tube header, downpipe, muffler etc. not enough motivation to mess with it yet.
#7
Banned
Join Date: Feb 2014
Location: Florida
Posts: 2,379
Likes: 0
Received 13 Likes
on
12 Posts
Year: 2000
Model: Cherokee(XJ)
Engine: Golen 4.6L
STOP!
Ignore what was posted above about the 0331 head. It doesn't apply to you. Those folks were well-meaning, but were waaaaay off the mark.

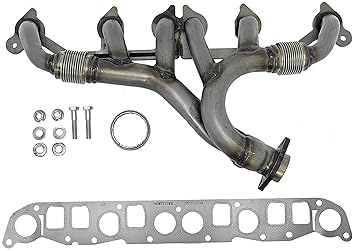

Is this the Dorman manifold to which you were referring? If so, it also has nothing to do with the 0331 head and will work just fine for your 1996 XJ.
http://www.rockauto.com/en/moreinfo....180314&jsn=377
Heat can contribute to the rubber deteriorating, but so can oil contamination, and more than anything time does it on its own. Motor mounts are maintenance items that need to be changed periodically anyway.
If you have a cracked manifold, do replace your motor mounts. Even that Dorman manifold with the flex joints can crack if the engine is moving around too much. Also, if your motor mounts are shot, chances are good your transmission mount has collapsed as well. You need to loosen the tranny mount to replace the engine mounts anyway, so you might as well just replace it while you're under there.
Is this the Dorman manifold to which you were referring? If so, it also has nothing to do with the 0331 head and will work just fine for your 1996 XJ.
http://www.rockauto.com/en/moreinfo....180314&jsn=377
If you have a cracked manifold, do replace your motor mounts. Even that Dorman manifold with the flex joints can crack if the engine is moving around too much. Also, if your motor mounts are shot, chances are good your transmission mount has collapsed as well. You need to loosen the tranny mount to replace the engine mounts anyway, so you might as well just replace it while you're under there.
Last edited by extrashaky; 08-02-2017 at 06:19 PM.
Trending Topics
#8
CF Veteran
Join Date: Oct 2013
Location: Tarpon Springs, FL / Denver, CO
Posts: 2,097
Likes: 0
Received 8 Likes
on
7 Posts
Year: '98
Engine: 4.0 I6
I am not 100% sure about the exhaust port size on the 0331 vs earlier model heads, but the stock XJ motor mounts are just a bad design, I would suggest upgrading to something like the MORE Bombproof mounts, Brown Dog Offroad, or SFR mounts
http://www.stinkyfab.com/heavy-duty-...jeep-4-0l.html
I did motor and trans mounts in one go - just don't get the Anchor/DEA mounts because they are utter garbage
http://www.stinkyfab.com/heavy-duty-...jeep-4-0l.html
I did motor and trans mounts in one go - just don't get the Anchor/DEA mounts because they are utter garbage
#9
Banned
Join Date: Feb 2014
Location: Florida
Posts: 2,379
Likes: 0
Received 13 Likes
on
12 Posts
Year: 2000
Model: Cherokee(XJ)
Engine: Golen 4.6L
But again, 280ezrider doesn't have a 0331 head and wasn't asking about a 2000 or 2001 exhaust manifold. He has a '96, which I believe has the 0630 head. The Dorman manifold with the flex joints he was asking about won't even fit a 2000 or 2001, which is fine since he doesn't have one.
#11
CF Veteran
Join Date: Jun 2011
Location: Louisville,KY
Posts: 8,014
Likes: 0
Received 14 Likes
on
14 Posts
Model: Cherokee
The motor mounts can go bad for a few reason,Lack of maintenance is a big one,Some people think changing the oil is all you need to do ever.And driving habits can kill them fast also.The people that drive it like they stole it,Aka hold it to the floor and slam on the brakes hard over and over.That will eat the motor mounts in time.
#12
Junior Member
Thread Starter
Join Date: Dec 2009
Location: Southern Oregon Valley
Posts: 52
Likes: 0
Received 6 Likes
on
5 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 LTR
STOP!
Ignore what was posted above about the 0331 head. It doesn't apply to you. Those folks were well-meaning, but were waaaaay off the mark.
Is this the Dorman manifold to which you were referring? If so, it also has nothing to do with the 0331 head and will work just fine for your 1996 XJ.
http://www.rockauto.com/en/moreinfo....180314&jsn=377
Heat can contribute to the rubber deteriorating, but so can oil contamination, and more than anything time does it on its own. Motor mounts are maintenance items that need to be changed periodically anyway.
If you have a cracked manifold, do replace your motor mounts. Even that Dorman manifold with the flex joints can crack if the engine is moving around too much. Also, if your motor mounts are shot, chances are good your transmission mount has collapsed as well. You need to loosen the tranny mount to replace the engine mounts anyway, so you might as well just replace it while you're under there.
Ignore what was posted above about the 0331 head. It doesn't apply to you. Those folks were well-meaning, but were waaaaay off the mark.
Is this the Dorman manifold to which you were referring? If so, it also has nothing to do with the 0331 head and will work just fine for your 1996 XJ.
http://www.rockauto.com/en/moreinfo....180314&jsn=377
Heat can contribute to the rubber deteriorating, but so can oil contamination, and more than anything time does it on its own. Motor mounts are maintenance items that need to be changed periodically anyway.
If you have a cracked manifold, do replace your motor mounts. Even that Dorman manifold with the flex joints can crack if the engine is moving around too much. Also, if your motor mounts are shot, chances are good your transmission mount has collapsed as well. You need to loosen the tranny mount to replace the engine mounts anyway, so you might as well just replace it while you're under there.
