Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

XJ ate sparkplug.

Thread Tools

Search this Thread

Old 03-13-2013, 05:53 PM
  #1
Senior Member
Thread Starter

KJamesJR's Avatar

Join Date: Feb 2012
Location: New Hampshire
Posts: 905
Received 7 Likes on 7 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
Default XJ ate sparkplug.

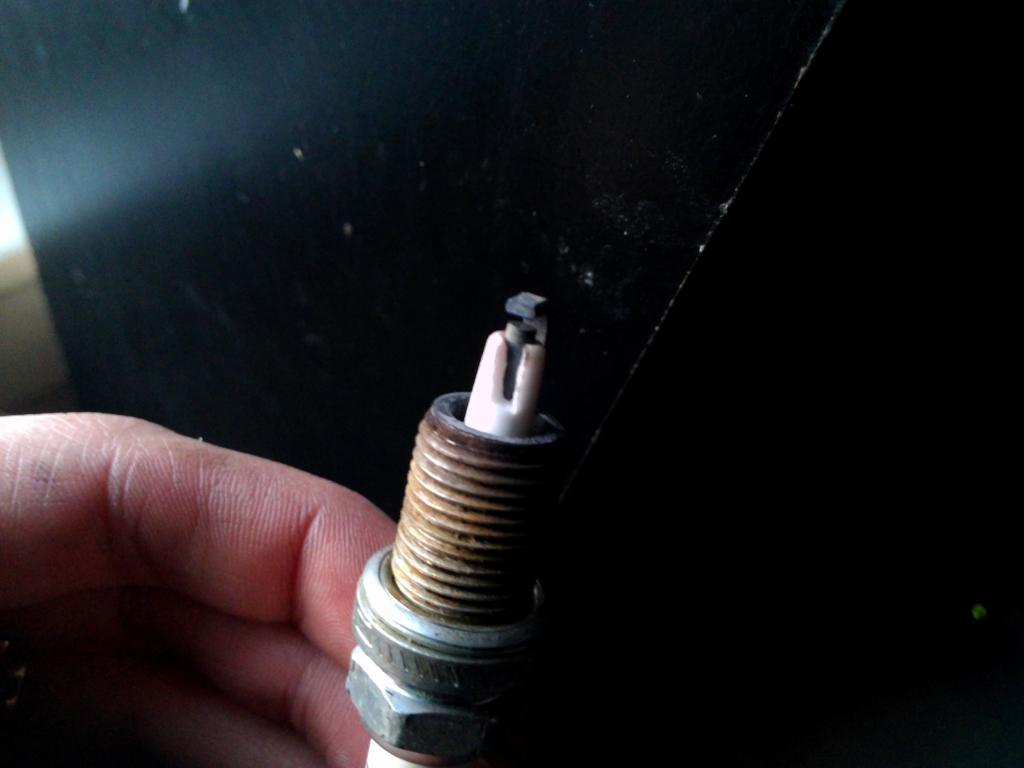

I pulled this plug out of cylinder 6. So the XJ didn't really "eat" it, but there was a chunk missing. I don't know how bad this could really be. If it was a faulty plug, or something else happened.


Name:  IMG_20130313_184600.jpg
Views: 26
Size:  42.9 KB
Old 03-13-2013, 06:22 PM
  #2
CF Veteran

ZINGGG's Avatar

Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440
Likes: 0
Received 3 Likes on 2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Default

What was the gap at before you put it in and what is the gap at now?
Old 03-13-2013, 07:34 PM
  #3
Senior Member

jebmccall's Avatar

Join Date: May 2011
Posts: 749
Likes: 0
Received 1 Like on 1 Post
Year: 1997
Model: Cherokee
Engine: 4.0
Default

is the engine mkaing any kind of ticking noise??? running rough??? if not i wouldnt worry about the little piece of ceramic that is missing. that piston may have a little scarring but more than likely not. how old is that plug??? may of just been a bad plug. ive seen a few do that.
Old 03-13-2013, 08:16 PM
  #4
Senior Member

Kalali's Avatar

Join Date: Apr 2012
Location: Ocean, New Jersey
Posts: 578
Likes: 0
Received 4 Likes on 4 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

And when was the last time you checked/changed the plugs? It never fails to amaze me when some folks drive the **** out of their XJs, change the plugs once every decade and then are surprised when they see something like this...
Old 03-13-2013, 08:23 PM
  #5
CF Veteran

CCKen's Avatar

Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes on 67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by jebmccall
is the engine mkaing any kind of ticking noise??? running rough??? if not i wouldnt worry about the little piece of ceramic that is missing. that piston may have a little scarring but more than likely not. how old is that plug??? may of just been a bad plug. ive seen a few do that.
I would be worried about that missing chunk getting lodged in a valve seat.

Start the engine up (for a second) with that plug removed and see if it blows that chunk out.
Old 03-13-2013, 08:27 PM
  #6
CF Veteran

Turbo X_J's Avatar

Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes on 16 Posts
Year: My Jeep is a GMC
Default

"or something else happened"

Detonation
Old 03-13-2013, 08:54 PM
  #7
CF Veteran

DFlintstone's Avatar

Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes on 17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default

X all^.. You sure that's the correct plug? The porcilyn seems longer than I remember.... or not, just a thought.
Old 03-13-2013, 09:20 PM
  #8
Senior Member
Thread Starter

KJamesJR's Avatar

Join Date: Feb 2012
Location: New Hampshire
Posts: 905
Received 7 Likes on 7 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by 1996sportXJ
What was the gap at before you put it in and what is the gap at now?
The gap is at .035. It's the same size as when installed.
Old 03-13-2013, 09:21 PM
  #9
Senior Member
Thread Starter

KJamesJR's Avatar

Join Date: Feb 2012
Location: New Hampshire
Posts: 905
Received 7 Likes on 7 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by jebmccall
is the engine mkaing any kind of ticking noise??? running rough??? if not i wouldnt worry about the little piece of ceramic that is missing. that piston may have a little scarring but more than likely not. how old is that plug??? may of just been a bad plug. ive seen a few do that.
The engine has always had a slight tick, or tapping. Is quiets when accelerating. Doesn't go away when it's hot though either. It's not loud. The plug has about 3k on it I don't drive the **** out of it. Short trips to work, the occasional drive into the city. It has been running rough, but I've been contemplating a faulty o2 sensor, that I'm having trouble removing. The upstream seized in the socket. The idle seems better now, but take into consideration, I just changed the plugs.

Last edited by KJamesJR; 03-13-2013 at 09:27 PM.
Old 03-13-2013, 09:22 PM
  #10
CF Veteran

Parsnip's Avatar

Join Date: Dec 2011
Location: Roanoke, VA
Posts: 1,050
Likes: 0
Received 2 Likes on 1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Default

That's an odd plug...porcelain shouldn't be that far off from the threads. Secondly that's detonation as someone said (using mobile app else id out your name in) and possibly also overheating. Are all your plugs that style? They really don't seem right
Old 03-13-2013, 09:29 PM
  #11
Senior Member
Thread Starter

KJamesJR's Avatar

Join Date: Feb 2012
Location: New Hampshire
Posts: 905
Received 7 Likes on 7 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by Parsnip
That's an odd plug...porcelain shouldn't be that far off from the threads. Secondly that's detonation as someone said (using mobile app else id out your name in) and possibly also overheating. Are all your plugs that style? They really don't seem right
They are all that style, Champion model RC12LYC. Have it right in my hand.
Old 03-13-2013, 09:32 PM
  #12
Senior Member
Thread Starter

KJamesJR's Avatar

Join Date: Feb 2012
Location: New Hampshire
Posts: 905
Received 7 Likes on 7 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by Turbo X_J
"or something else happened"

Detonation
Just read up on this. If this is the case, how do I stop it?
Old 03-13-2013, 10:03 PM
  #13
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,897
Received 1,528 Likes on 1,240 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Put NGKs in it.
Old 03-13-2013, 10:29 PM
  #14
Herp Derp Jerp

salad's Avatar

Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes on 12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by KJamesJR
They are all that style, Champion model RC12LYC. Have it right in my hand.
Pretty sure 97+ is supposed to run RC12ECC...

+1 cruiser's recommendation for NGKs. ZFR5N is as cheap as the Champions
Old 03-13-2013, 10:31 PM
  #15
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,897
Received 1,528 Likes on 1,240 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by salad
Pretty sure 97+ is supposed to run RC12ECC...

+1 cruiser's recommendation for NGKs. ZFR5N is as cheap as the Champions
NGK performance plug made in Japan.

Bunch of others made in china by Wunhung Lo and his buddies.. Crappola. Bosch sucks.
