Old Apr 11, 2011 | 01:25 PM
Share
  #4276
dukie564's Avatar
dukie564
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default
Originally Posted by Uhrinator
Ok so on a 1989 ax-15, with the internal slave, how do you get the slave out? We have the whole transmission and tc off and we are at the slave, we just can't get the slave off. Thanks in advanced.
Ben and Kay
( ps, not for out jeep, it's a 1989 YJ, but the transmissions should be the same.)

Sent using CherokeeFM
CLUTCH SLAVE CYLINDER
Removal (Cherokee & Wrangler)
1) Drain clutch master cylinder. Disconnect line at clutch
master cylinder and clutch slave cylinder lines. Remove transmission
and transfer case. Remove insulator bolts and slide insulator and
bracket off lines. See Fig. 1.
2) Remove retaining nut. Pry nut upward and off mounting pin
on transmission front case. Remove assembly.
Installation (Cherokee & Wrangler)
To install, reverse removal procedure. Bleed hydraulic
system.

Old Apr 11, 2011 | 01:28 PM
Share
  #4277
dukie564's Avatar
dukie564
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default
Originally Posted by Cherryokee
Amazing! I can't believe it, Dukie564. All this nuisance over 1/8". Why on earth should that make a difference in hub selection and price?
construction wise, they are different. Cast rotors are one piece, composites are, as the name suggests, two different materials fused together to save weight.

You need to use the correct one though, that's all i know
Old Apr 11, 2011 | 01:30 PM
Share
  #4278
Japple650's Avatar
Japple650
Seasoned Member

Joined: Mar 2011
Posts: 318
Likes: 0
From: Lansing MI
Year: 1998
Model: Cherokee
Engine: 4.0
Default
Originally Posted by dukie564
You need to use the correct one though, that's all i know

I beg to differ, you seem to KNOW alot!! lol
Old Apr 11, 2011 | 01:33 PM
Share
  #4279
Cherryokee's Avatar
Cherryokee
CF Veteran
15 Year Member
Liked

Joined: May 2010
Posts: 1,175
Likes: 31
From: Boston
Year: 2000
Engine: 4.7L
Default
Originally Posted by dukie564
construction wise, they are different. Cast rotors are one piece, composites are, as the name suggests, two different materials fused together to save weight.

You need to use the correct one though, that's all i know

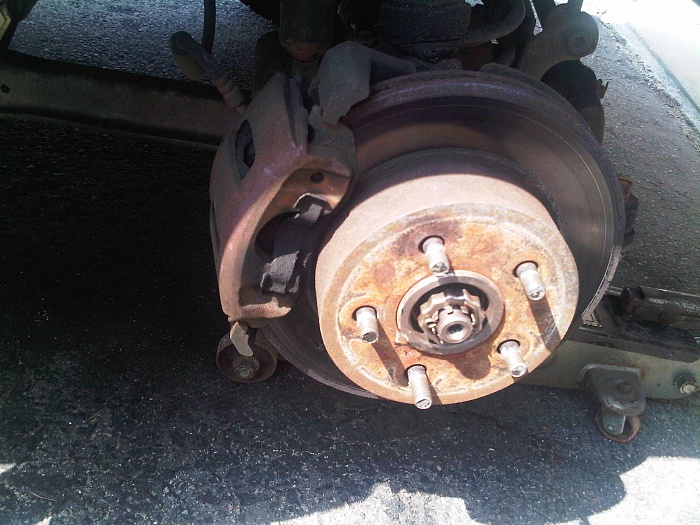

Well alrighty then! I guess I'll dust-off my yardstick and take that dang measurement. You da' man, Dukie564! Meanwhile - here's a pic...
Attached Thumbnails XJ Ask the Question Thread-brake-rotor.jpg
Old Apr 11, 2011 | 01:38 PM
Share
  #4280
dukie564's Avatar
dukie564
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default
those are cast - they have the squared off corner on the hub
Old Apr 11, 2011 | 01:39 PM
Share
  #4281
dukie564's Avatar
dukie564
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default
Originally Posted by Japple650
I beg to differ, you seem to KNOW alot!! lol
Thanks, i dabble a bit from time to time
Old Apr 11, 2011 | 01:58 PM
Share
  #4282
Taekwondemers's Avatar
Taekwondemers
Junior Member

Joined: Feb 2011
Posts: 39
Likes: 0
From: Saginaw, MI
Year: 1991
Model: Cherokee
Engine: 4.0l
Default
MY oil gauge is messed up, when I start it it goes up to pressure then right back to Zero, even when driven. Any thoughts?
Old Apr 11, 2011 | 02:00 PM
Share
  #4283
dukie564's Avatar
dukie564
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default
Originally Posted by Taekwondemers
MY oil gauge is messed up, when I start it it goes up to pressure then right back to Zero, even when driven. Any thoughts?

oil pressure sending unit is likely bad, or the wiring connector is loose. Happens a lot if you bumped it when changing the filter.

looks like this, and is located on top of the oil filter elbow:
Old Apr 11, 2011 | 02:05 PM
Share
  #4284
Taekwondemers's Avatar
Taekwondemers
Junior Member

Joined: Feb 2011
Posts: 39
Likes: 0
From: Saginaw, MI
Year: 1991
Model: Cherokee
Engine: 4.0l
Default
Originally Posted by dukie564
oil pressure sending unit is likely bad, or the wiring connector is loose. Happens a lot if you bumped it when changing the filter.

looks like this, and is located on top of the oil filter elbow:
That is what I was thinking thanks alot
Old Apr 11, 2011 | 02:26 PM
Share
  #4285
Cherryokee's Avatar
Cherryokee
CF Veteran
15 Year Member
Liked

Joined: May 2010
Posts: 1,175
Likes: 31
From: Boston
Year: 2000
Engine: 4.7L
Default
Originally Posted by dukie564
those are cast - they have the squared off corner on the hub
Someday Dukie. It'll be my pleasure to buy your beer!
Old Apr 11, 2011 | 02:42 PM
Share
  #4286
dukie564's Avatar
dukie564
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default
haha i like beer
Old Apr 11, 2011 | 02:44 PM
Share
  #4287
Bwallace33908's Avatar
Bwallace33908
Seasoned Member

Joined: Jan 2011
Posts: 344
Likes: 0
Model: Cherokee
Default
Originally Posted by huntingman2706217
Go by what Tires are on them and how much trimming there is...

they dont have rims or tires...so its hard to tell when its sitting on the rotors...i was lucky enough to get the rims from one when they took them off...they were 33/12.50/15s but the fenders were trimmed horrible and bashed up pretty bad, and the tires had DEEP grooves from hitting the fenders
Old Apr 11, 2011 | 02:54 PM
Share
  #4288
dukie564's Avatar
dukie564
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default
Originally Posted by Bwallace33908
they dont have rims or tires...so its hard to tell when its sitting on the rotors...i was lucky enough to get the rims from one when they took them off...they were 33/12.50/15s but the fenders were trimmed horrible and bashed up pretty bad, and the tires had DEEP grooves from hitting the fenders
see post #4270

https://www.cherokeeforum.com/f2/ask...85/#post953021
Old Apr 11, 2011 | 06:19 PM
Share
  #4289
Uhrinator's Avatar
Uhrinator
Member

Joined: Oct 2010
Posts: 212
Likes: 0
From: Spokane, WA
Year: 1989
Model: Cherokee
Engine: 4.0
Default
Originally Posted by dukie564

CLUTCH SLAVE CYLINDER
Removal (Cherokee & Wrangler)
1) Drain clutch master cylinder. Disconnect line at clutch
master cylinder and clutch slave cylinder lines. Remove transmission
and transfer case. Remove insulator bolts and slide insulator and
bracket off lines. See Fig. 1.
2) Remove retaining nut. Pry nut upward and off mounting pin
on transmission front case. Remove assembly.
Installation (Cherokee & Wrangler)
To install, reverse removal procedure. Bleed hydraulic
system.
I seriously think you know everything.....

Sent using CherokeeFM
Old Apr 11, 2011 | 06:32 PM
Share
  #4290
sycoglitch's Avatar
sycoglitch
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 6
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default
Originally Posted by Uhrinator

I seriously think you know everything.....

Sent using CherokeeFM
You didn't know that, dukie is descended from the jeep gods themselves
