Old Dec 23, 2012 | 10:10 PM
  #18796
grat134's Avatar
Junior Member

Joined: Dec 2012
Posts: 99
Likes: 0
Default

And what do you think about the tcase? Im getting 2 inch shackles as well thank you for all the advice
Old Dec 23, 2012 | 10:11 PM
  #18797
bhennessee1's Avatar
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by grat134
And what do you think about the tcase? Im getting 2 inch shackles as well thank you for all the advice
See above, I edited my Post.
Old Dec 23, 2012 | 10:14 PM
  #18798
grat134's Avatar
Junior Member

Joined: Dec 2012
Posts: 99
Likes: 0
Default

Originally Posted by bhennessee1

See above, I edited m. Post.
Oh alright i think i may just do a 2 inch coil space i just wanna fit 31s i already cut my finders
Old Dec 23, 2012 | 10:18 PM
  #18799
bhennessee1's Avatar
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by grat134

Oh alright i think i may just do a 2 inch coil space i just wanna fit 31s i already cut my finders
With cut fenders, 2 inches will give you plenty of room for 31s, and you can keep your stock shocks.
Old Dec 23, 2012 | 10:20 PM
  #18800
grat134's Avatar
Junior Member

Joined: Dec 2012
Posts: 99
Likes: 0
Default

Well they need replacing anyways but will the trac bar be alright and the break lines (they look long) and tcase sorry to ask so much just by far you've helped me out the most on this site
Old Dec 23, 2012 | 10:25 PM
  #18801
bhennessee1's Avatar
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by grat134
Well they need replacing anyways but will the trac bar be alright and the break lines (they look long) and tcase sorry to ask so much just by far you've helped me out the most on this site
Since you have a pre 97 xj you most likel will not need to do anything with the t case at 2 inches of lift. The track bar will work for 2 inches, but the stock one has a weak tie rod end on it, and your axle wot be dead center. I'd get an adjustable double shear track bar. Google double shear teak bar, it will tell you the difference. I'll dig up a picture of where to relocate your brake lines to, give me a minute.
Old Dec 23, 2012 | 10:27 PM
  #18802
grat134's Avatar
Junior Member

Joined: Dec 2012
Posts: 99
Likes: 0
Default

Alright thank you
Old Dec 23, 2012 | 10:30 PM
  #18803
bhennessee1's Avatar
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by grat134
Alright thank you

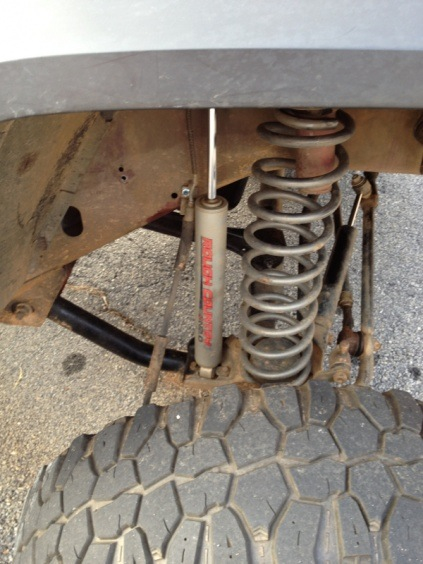

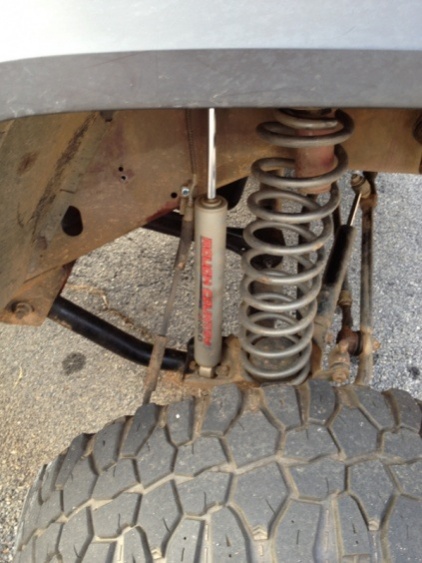

Here's the pic.

Just unbolt the brake line, it's a torx bolt I can't remember what size, carefully straighten the metal line with your hands. Be extremely careful not to kink it. Use a self tapping screw to mount it where you see it in this pic. This setup is good to about 3.5 inches of lift.
where are you from?
Attached Thumbnails XJ Ask the Question Thread-image-2937586343.jpg

Last edited by bhennessee1; Dec 23, 2012 at 10:35 PM.
Old Dec 23, 2012 | 10:35 PM
  #18804
94XjSport94's Avatar
CF Veteran

Joined: Apr 2011
Posts: 14,553
Likes: 1
From: Carrollton, GA
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

Originally Posted by bhennessee1

Here's the pic.

Just unbolt the brake line, it's a torx bolt I can't remember what size, carefully straighten the metal line with your hands. Be extremely careful not to link it. Use a self tapping screw to mount it where you see it in this pic. This setup is good to about 3.5 inches of lift.
My god that picture is awful lol but does show it! Thanks for that haha
Old Dec 23, 2012 | 10:37 PM
  #18805
bhennessee1's Avatar
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 94XjSport94
My god that picture is awful lol but does show it! Thanks for that haha
my pic is blurry as hell, and the screw wasn't in. yours is much better.
Old Dec 23, 2012 | 10:38 PM
  #18806
grat134's Avatar
Junior Member

Joined: Dec 2012
Posts: 99
Likes: 0
Default

Im from hesperia California looks good thanks for the picture
Old Dec 23, 2012 | 10:40 PM
  #18807
94XjSport94's Avatar
CF Veteran

Joined: Apr 2011
Posts: 14,553
Likes: 1
From: Carrollton, GA
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

Originally Posted by bhennessee1

my pic is blurry as hell, and the screw wasn't in. yours is much better.
I'll take an even better one tomorrow haha
Old Dec 23, 2012 | 10:41 PM
  #18808
bhennessee1's Avatar
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 94XjSport94

My god that picture is awful lol but does show it! Thanks for that haha
Originally Posted by grat134
Im from hesperia California looks good thanks for the picture
I stole the pic from this guy.
Old Dec 23, 2012 | 10:42 PM
  #18809
bhennessee1's Avatar
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 94XjSport94

I'll take an even better one tomorrow haha
I need to re take a lot of pics that I took at night the pics in by build suck.
Old Dec 23, 2012 | 10:44 PM
  #18810
grat134's Avatar
Junior Member

Joined: Dec 2012
Posts: 99
Likes: 0
Default

Originally Posted by bhennessee1

I need to re take a lot of pics that I took at night the pics in by build suck.
Their fine your jeeps bad *** by the way. So i believe those 2 random silver things that came with my lift are tcase drop bolts.because i seen another kit with 4 for the drop same ones but why would it only come with 2
