Where is the ignition switch?
#1
Junior Member
Thread Starter
Join Date: Apr 2010
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Where is the ignition switch?
All my manuals simply say that it's on the steering column under the dash. I found the dimmer switch but not the ignition switch. 87 Jeep Cherokee
#3
CF Veteran
Join Date: Jan 2010
Location: St Augustine Florida
Posts: 1,087
Likes: 0
Received 1 Like
on
1 Post
Year: 1992
Model: Cherokee
Engine: 4.0
if you look... you will see it on ther next to dimmer...
this thing
http://www.2carpros.com/forum/automo...7_IGN_SW_1.jpg
this thing
http://www.2carpros.com/forum/automo...7_IGN_SW_1.jpg
#4
Junior Member
Thread Starter
Join Date: Apr 2010
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee

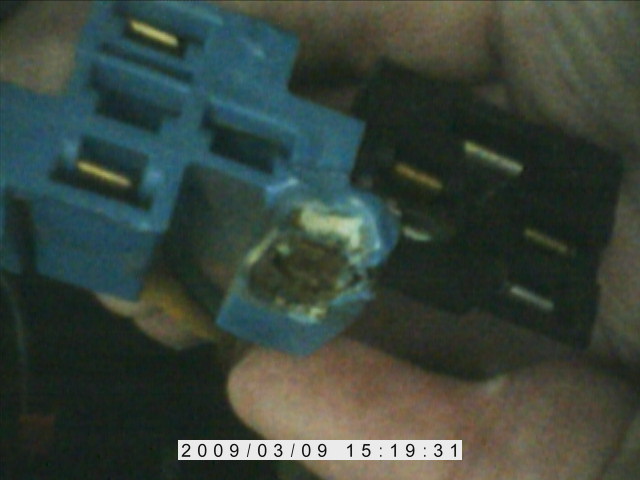

Thanks found it. Now I have another problem. The middle terminal of the row of three is corroded and the plastic housing is melted. Could the switch cause that or do I have another problem?
#7
Member
Join Date: May 2010
Location: southlake, TX
Posts: 155
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996 Sport
Model: Cherokee
Engine: 4.0L H.O.
just replace the stupid thing - $5 from junkyard, or used online. i tried to fix mine on my 87 cherokee, but if the plastic inside is melted, causing the contacts to short, it will melt it more and cause further damaging shorts.
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Apr 2010
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Yeah I'll be replacing it but my concern is how did it get that way to begin with, do you think a bad ignition switch could cause that? If I'm reading the wiring diagram correctly that connection goes to the starter solenoid. I'll have to trace that and make sure the other end is tight.
#10
CF Veteran
Join Date: Oct 2008
Location: Stafford,VA
Posts: 2,543
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Ford Vehicles are netourios for this issue.
Once the switches become worn and burn out they get hot and melt the plugs. get a new plug and switch.
Once the switches become worn and burn out they get hot and melt the plugs. get a new plug and switch.
Last edited by 98 JeepJeep; 05-16-2010 at 03:34 PM.
#11
Member
Join Date: May 2010
Location: southlake, TX
Posts: 155
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996 Sport
Model: Cherokee
Engine: 4.0L H.O.
pretty much, it's the cheap abs/pvc that was used - they just deteriorate over time/heat - and the settings for the contacts are too close to each other. the dc current generates enough heat to make the plastic brittle with time and the contacts eventually wear down not making a proper clean connection.
Last edited by kbad; 05-16-2010 at 03:36 PM.
#12
CF Veteran
Join Date: Sep 2009
Location: Summerville, Ga
Posts: 6,322
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1995
Model: Cherokee
Engine: 2.5 4 cyl.
#13
Junior Member
Join Date: Apr 2010
Location: Sarasota, FL
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
agree
bad engineering allowing the contacts to be so close together....also could have been bad starter at one time...just replace and cross fingers that it doesnt happen again....
#14
Junior Member
Join Date: Aug 2010
Location: Northern Utah
Posts: 60
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
Having similar issues with my 92. I've had the vehicle about a year now and this is a recent development. It's random, at times wipers, heater and radio work in key "On" position. Always does, thus far, in "Accessory" position. I had thought, by the random nature of it's happenings, or rather non happenings, that it was a bent linkage due to the fact that with same randomness my key will not remove without turning the key to On position then sliding the shifter from Park to Neutral and back. After that the key comes out fine. I had thought maybe someone had tried to force the key out or something. After removing steering wheel, that plate and spring retainer was a ****, I didn't see anything obvious. The Key lock and neutral safety pop up button deal seem okay as does the linkage. So I'm thinking the two problems are unrelated now. Long story short ... I'm going to be bent over backwards in the floor board trying to remove the ignition switch for observation.
