Where does this line go

I have an 01 Cherokee and need a little help

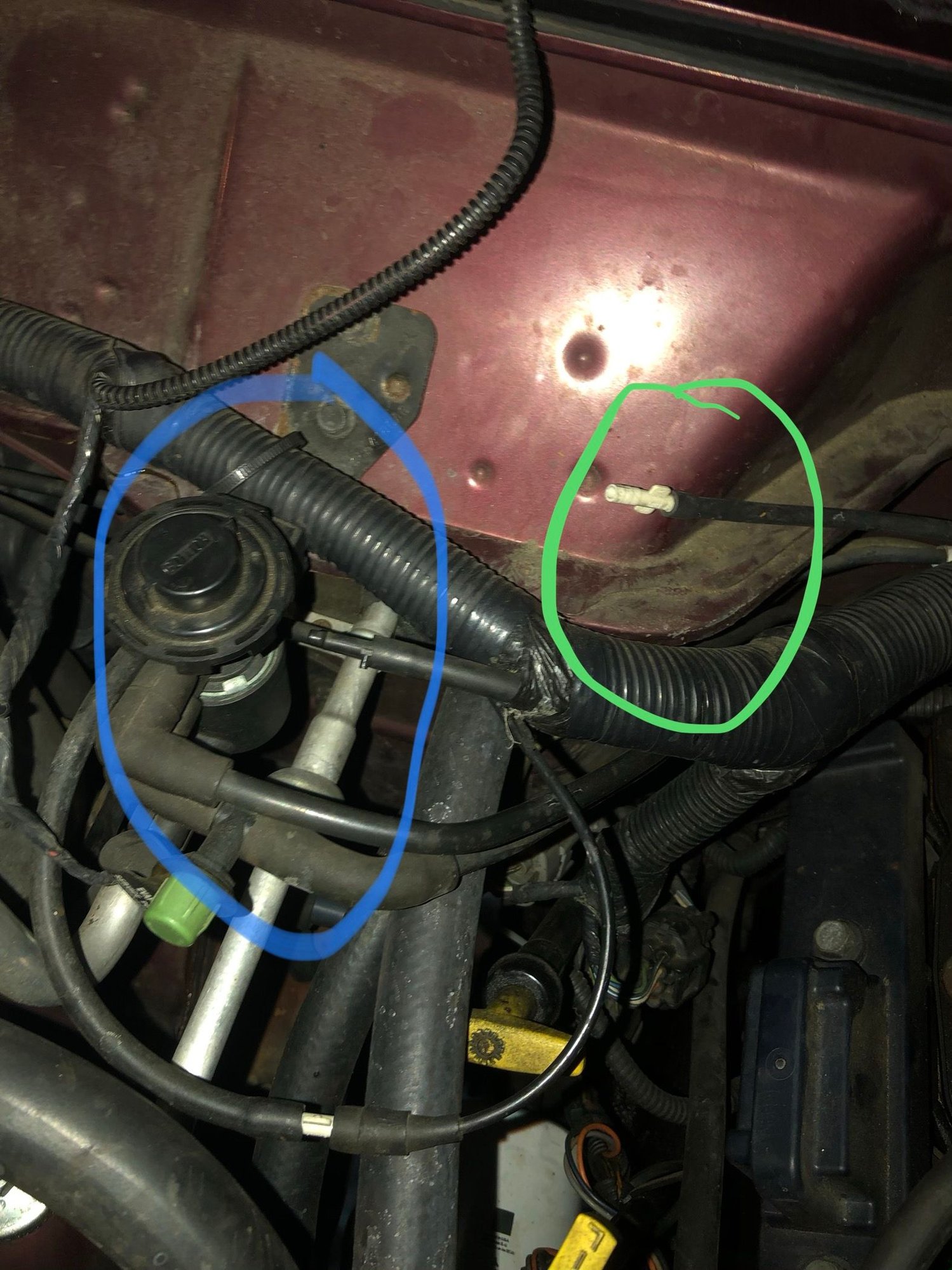

Where is the green circled line suppose to go and why does the blue circled thing constantly click like it’s a pump running?

Jan 16, 2019 | 10:11 AM

PatHenry

CF Veteran

Joined: Nov 2017

Posts: 3,700

Likes: 238

From: Groton, MA

Year: 1995

Model: Cherokee(XJ)

Engine: I6 4.0L

Blue thing IS a pump (leak detection pump). The clicking sound is normal.

Not sure on the vacuum line - are there any unconnected vacuum lines nearby? I've found the parts catalog to be helpful with getting a visual representation of the lines and where they are located.

Jan 16, 2019 | 12:41 PM

tinytrax78

Senior Member

Joined: Feb 2011

Posts: 822

Likes: 3

From: orrville ohio

Year: 1994

Model: Cherokee

Engine: 4.0

looks like right between the green and blue circles is the end of a connector that it may plug into

Jan 16, 2019 | 01:00 PM

Ralph77

CF Veteran

Joined: Oct 2015

Posts: 7,517

Likes: 1,626

Year: 2000

Model: Cherokee (XJ)

Quote:

Originally Posted by tinytrax78

looks like right between the green and blue circles is the end of a connector that it may plug into

No the vacuum for the leak protection pump come out of the loom. Does look like it in the picture though.

Jan 16, 2019 | 03:47 PM

PatHenry

CF Veteran

Joined: Nov 2017

Posts: 3,700

Likes: 238

From: Groton, MA

Year: 1995

Model: Cherokee(XJ)

Engine: I6 4.0L

I suspect the other end of that line will be found along the firewall - either the HVAC area or running to the reservoir. Regardless, check the 01 parts catalog or FSM for diagrams.

Jan 17, 2019 | 05:34 AM

dave1123

Old fart with a wrench

Joined: Nov 2010

Posts: 14,398

Likes: 740

From: Manlius, east of Syracuse, NY

Year: 2000 XJ Sport & WJ Laredo

Model: Grand Cherokee (WJ)

Engine: 4.0L

I think that round pump is the canister purge solenoid. That will click any time the engine is running after the leak detection pump runs it's leak check. It looks like that hose in between the the 2 circles goes into that harness, but I think it doesn't and that's where the yellow hose connects. Where is the carbon canister?

Last edited by dave1123; Jan 17, 2019 at 05:41 AM.
