What is this?
01-09-2019, 09:55 AM
#1
Member
Thread Starter
Join Date: Mar 2010
Location: Virginia Beach
Posts: 202
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 1998 4.0 242
What is this?

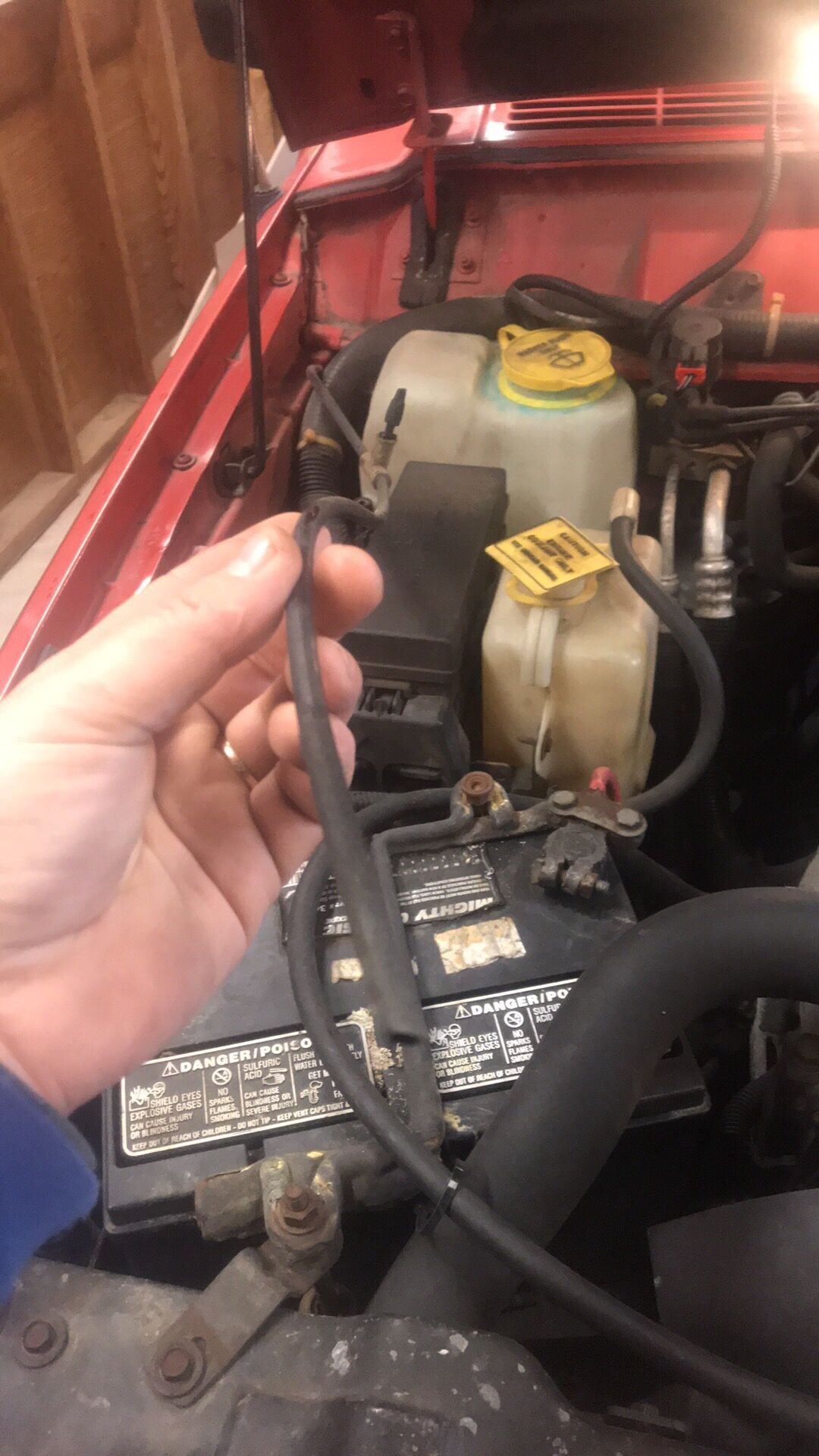

Passenger side fender. One end looks like it goes into the dash and the other looks like it’s ripped off. Can’t find anything it would connect to. Thanks.
01-09-2019, 10:24 AM
#2
Junior Member
Looks like you may have a vacuum leak. The unconnected end should go to the vacuum reservoir in the front right of the bumper. If you google "jeep cherokee vacuum reservoir" you will be able to see where it should be located.
01-09-2019, 10:48 AM
#4
I have used a smaller diameter tube to go between the broken sections as a temporary fix when that tubing breaks and messes up your vacuum system. Of course my temporary fix has been in place for about 3 years now so I guess it's permanent now.
01-09-2019, 11:52 AM
#5
Old fart with a wrench
That vacuum line comes off the manifold and goes thru a check valve to the heater control, cruise control accuator, then to the vacuum reservoir. The reservoir holds enough vacuum to close the air doors in the heater when you shut off the engine. It also helps the cruise control react to changes instantly. Right now your IAC is compensating for the leak as well as it can.
01-09-2019, 02:25 PM
#6
Member
Thread Starter
Join Date: Mar 2010
Location: Virginia Beach
Posts: 202
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 1998 4.0 242
That vacuum line comes off the manifold and goes thru a check valve to the heater control, cruise control accuator, then to the vacuum reservoir. The reservoir holds enough vacuum to close the air doors in the heater when you shut off the engine. It also helps the cruise control react to changes instantly. Right now your IAC is compensating for the leak as well as it can.
Interesting. I don’t have cruise control and it’s pretty long. I also thought it went to the manifold because it reaches it perfectly but it must of been plugged off. You know exactly which nipple it goes too? Weird thing is no codes and Jeep runs great.
01-09-2019, 03:48 PM
#7
Junior Member
That T fitting is where your CC, if you had it, would feed from for the vacuum input. My jeep was disconnected there when I bought it. Ran great, but the fan would only flow out of the defrost ports, which is a tell tale sign that the vacuum isn't getting to the climate control panel. The post below will be a big help to understand the vacuum system with diagram. Older Jeep XJ, but still relevant.
Check out this post
Check out this post
Trending Topics
01-09-2019, 04:25 PM
#8
Member
Thread Starter
Join Date: Mar 2010
Location: Virginia Beach
Posts: 202
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 1998 4.0 242
That T fitting is where your CC, if you had it, would feed from for the vacuum input. My jeep was disconnected there when I bought it. Ran great, but the fan would only flow out of the defrost ports, which is a tell tale sign that the vacuum isn't getting to the climate control panel. The post below will be a big help to understand the vacuum system with diagram. Older Jeep XJ, but still relevant.
Check out this post
Check out this post
01-11-2019, 01:43 PM
#11
Member
Thread Starter
Join Date: Mar 2010
Location: Virginia Beach
Posts: 202
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 1998 4.0 242
It was missing. Went to Pick n Pull today and got the reservoir then Napa to get the rubber line. Heat works better and Jeep runs a little smoother. Thanks for y’alls help.
01-12-2019, 06:21 AM
#13
Old fart with a wrench
It looks like that new hose is rubbing on the battery ground cable exactly where the old hose had the hole. You should protect it somehow.
