Very loud squeal

Thread Tools

Search this Thread

Old 10-29-2013, 12:01 AM
  #1
Junior Member
Thread Starter

dnewar21's Avatar

Join Date: Feb 2013
Location: Carrollton Georgia
Posts: 51
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989 Jeep Cherokee
Model: Cherokee
Engine: 4.0L I6 EFI "Power Tech" - 177 hp @ 4750 rpm, 220 ft lb @ 4000 rpm
Default Very loud squeal

Ok guys I changed my power steering pump this weekend and now the belt is squealing... BUT I dont know if its the belt or a pulley. I changed the idler pulley today and it wasnt that so upgraded that but it sounds like its the water pump pulley... Can the water pump pulley be making all that dang noise? PLEASE HELP cause its fricken embarrassing.
Old 10-29-2013, 12:38 AM
  #2
CF Veteran

Radi's Avatar

Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes on 16 Posts
Model: Cherokee
Default

Get any PS fluid on the belt? New belt or re-used?
Try cleaning everything off with brake cleaner and making sure the belt is tight enough.
Old 10-29-2013, 12:45 AM
  #3
Junior Member
Thread Starter

dnewar21's Avatar

Join Date: Feb 2013
Location: Carrollton Georgia
Posts: 51
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989 Jeep Cherokee
Model: Cherokee
Engine: 4.0L I6 EFI "Power Tech" - 177 hp @ 4750 rpm, 220 ft lb @ 4000 rpm
Default

its a new belt and I will try brake cleaner tomorrow but what if that doesnt work is it possible that it could be the water pump pulley?
Old 10-29-2013, 12:46 AM
  #4
CF Veteran

Radi's Avatar

Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes on 16 Posts
Model: Cherokee
Default

Sure, could be a pulley. You can try removing the belt and giving each a spin by hand. If any make noise or feel rough they could be the culprit.
That belt does need to be tighter than most folks are comfortable setting them else they squeal.
Old 10-29-2013, 12:50 AM
  #5
Junior Member
Thread Starter

dnewar21's Avatar

Join Date: Feb 2013
Location: Carrollton Georgia
Posts: 51
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989 Jeep Cherokee
Model: Cherokee
Engine: 4.0L I6 EFI "Power Tech" - 177 hp @ 4750 rpm, 220 ft lb @ 4000 rpm
Default

ok then will do that gives me an avenue to take thanks will let ya know how it goes. thanks.

It was sooooo loud and very embarrassing. proud of my Jeep and then to have that happen sucked big time.
Old 10-29-2013, 12:51 AM
  #6
Junior Member
Thread Starter

dnewar21's Avatar

Join Date: Feb 2013
Location: Carrollton Georgia
Posts: 51
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989 Jeep Cherokee
Model: Cherokee
Engine: 4.0L I6 EFI "Power Tech" - 177 hp @ 4750 rpm, 220 ft lb @ 4000 rpm
Default

tight is the key then and clean
Old 10-29-2013, 01:01 AM
  #7
Senior Member

scottmphoto's Avatar

Join Date: Jan 2011
Location: Russellville, Arkansas
Posts: 957
Likes: 0
Received 2 Likes on 2 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 I-6
Default

The belts on our XJ's have to be stupidly tight.
Old 10-29-2013, 01:36 AM
  #8
Seasoned Member

2WDUnderachiever's Avatar

Join Date: Jul 2013
Location: Atlanta
Posts: 362
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Default

Is it this bad?
Old 10-29-2013, 01:39 AM
  #9
Junior Member
Thread Starter

dnewar21's Avatar

Join Date: Feb 2013
Location: Carrollton Georgia
Posts: 51
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989 Jeep Cherokee
Model: Cherokee
Engine: 4.0L I6 EFI "Power Tech" - 177 hp @ 4750 rpm, 220 ft lb @ 4000 rpm
Unhappy

NOOOOOOO.... YES thats it what does this mean?
Old 10-29-2013, 01:44 AM
  #10
Seasoned Member

2WDUnderachiever's Avatar

Join Date: Jul 2013
Location: Atlanta
Posts: 362
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Default

I don't know, but that's my screech.
When you said "embarrassing" I knew it had to be my screech, or something close.

Mine seems tied to the A/C compressor... I think the clutch's half-engaged, because it's worse when the A/C is off than when it's on, but it happens when the A/C's both on and off -- it also seems to be coming from the A/C compressor, so yeah.
I'm replacing the clutch as soon as it comes in... I'll let you know how that goes.

It doesn't seem to be my belt, either. My belt's really tight, and doesn't look chafed or anything.
Old 10-29-2013, 01:48 AM
  #11
Junior Member
Thread Starter

dnewar21's Avatar

Join Date: Feb 2013
Location: Carrollton Georgia
Posts: 51
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989 Jeep Cherokee
Model: Cherokee
Engine: 4.0L I6 EFI "Power Tech" - 177 hp @ 4750 rpm, 220 ft lb @ 4000 rpm
Default

Well Imma start with the basics tomorrow and then imma start replacing everything that I think it is cause the Jeep is not going to be drivin like that.

What all have you tried.. Are you sure that that is the issue cause for me the noise is so damn loud its hard to tell exactly what it is?
Old 10-29-2013, 01:51 AM
  #12
Seasoned Member

2WDUnderachiever's Avatar

Join Date: Jul 2013
Location: Atlanta
Posts: 362
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Default

Yours might be from something else, I don't know... But I'd suggest fiddling with the A/C and seeing if that has much effect on it.

And I won't drive mine right now... Seems it might be a bearing problem with the compressor, and if so, I'd rather not have them seize and throw a belt... Would not be fun.
Old 10-29-2013, 02:01 AM
  #13
Junior Member
Thread Starter

dnewar21's Avatar

Join Date: Feb 2013
Location: Carrollton Georgia
Posts: 51
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989 Jeep Cherokee
Model: Cherokee
Engine: 4.0L I6 EFI "Power Tech" - 177 hp @ 4750 rpm, 220 ft lb @ 4000 rpm
Default

well I will keep everyone posted on the progress. TO BE CONTINUED
Old 10-29-2013, 06:59 AM
  #14
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,870
Received 1,526 Likes on 1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

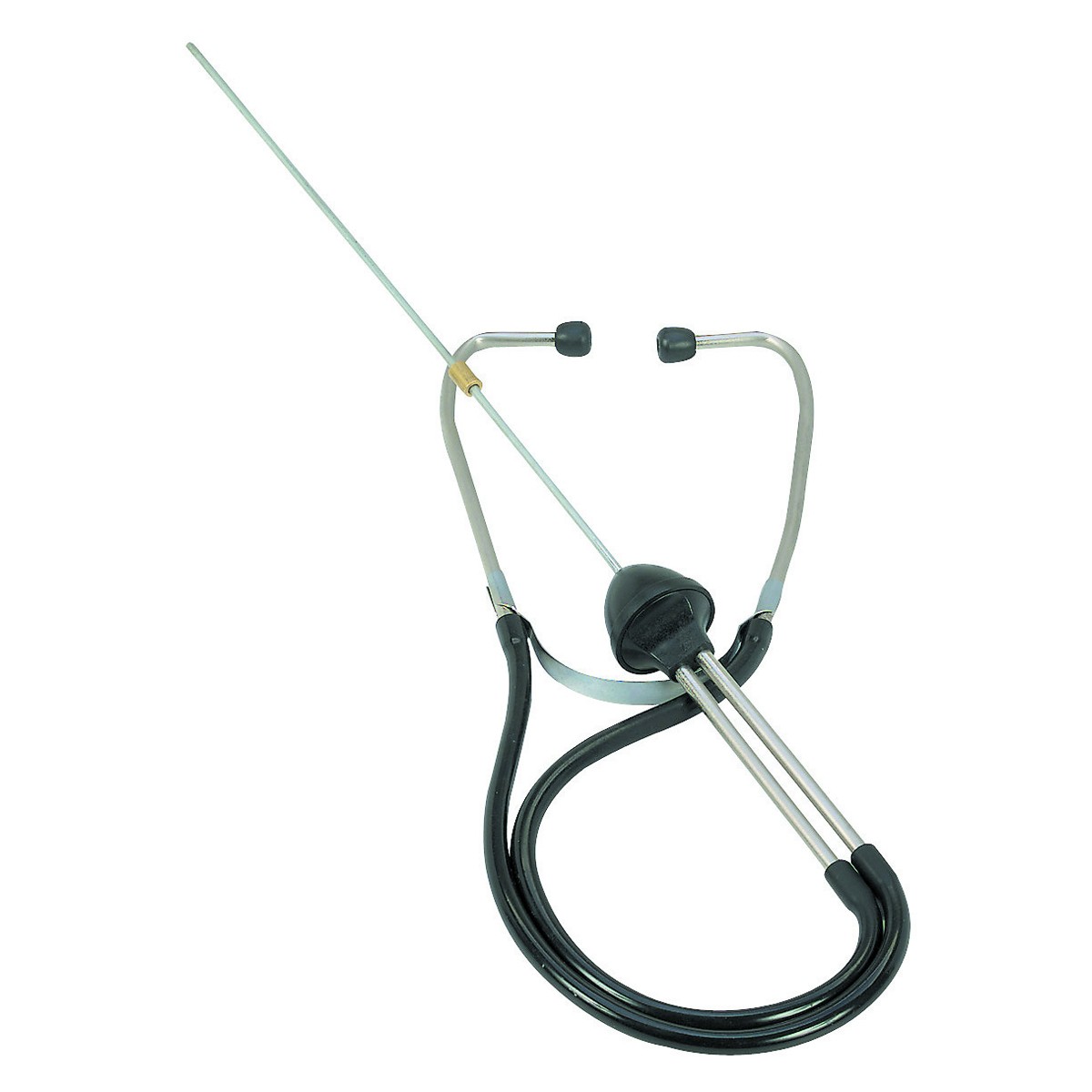

Here's what you need. Get under your hood with one of these and away from your keyboard and monitor. No offense intended.
Attached Thumbnails Very loud squeal-mech-steth.jpg
Old 10-29-2013, 07:19 AM
  #15
Seasoned Member

HudsonN's Avatar

Join Date: Jul 2012
Location: New Milford, CT
Posts: 484
Likes: 0
Received 3 Likes on 3 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Just pull the serpentine belt out of the jeep and start it up.

Squealing gone? It's one of the pulleys or the belt.
