Vacuum line help
#1
CF Veteran
Thread Starter
Join Date: Sep 2017
Location: MO
Posts: 1,548
Received 302 Likes
on
251 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
Vacuum line help

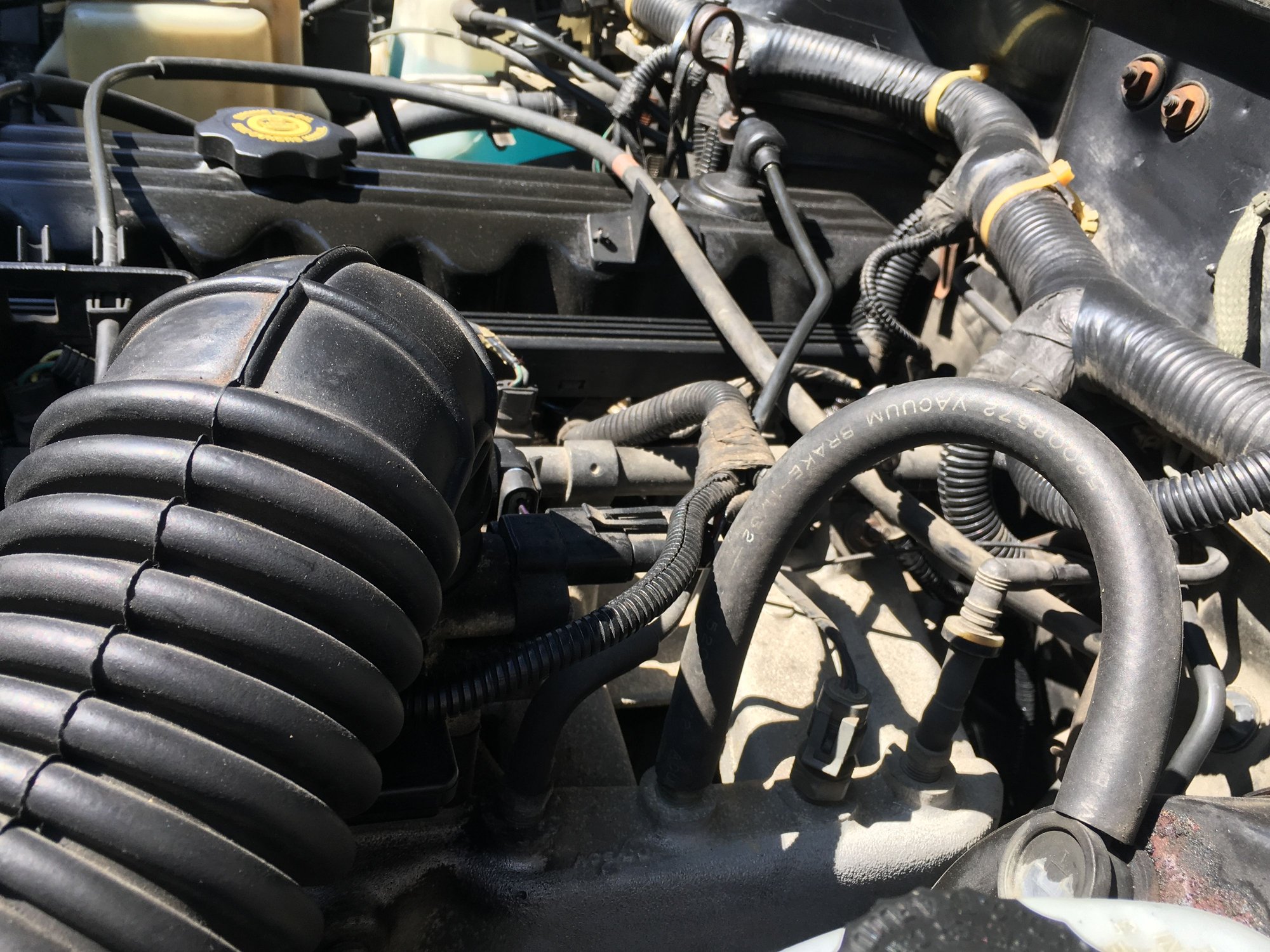

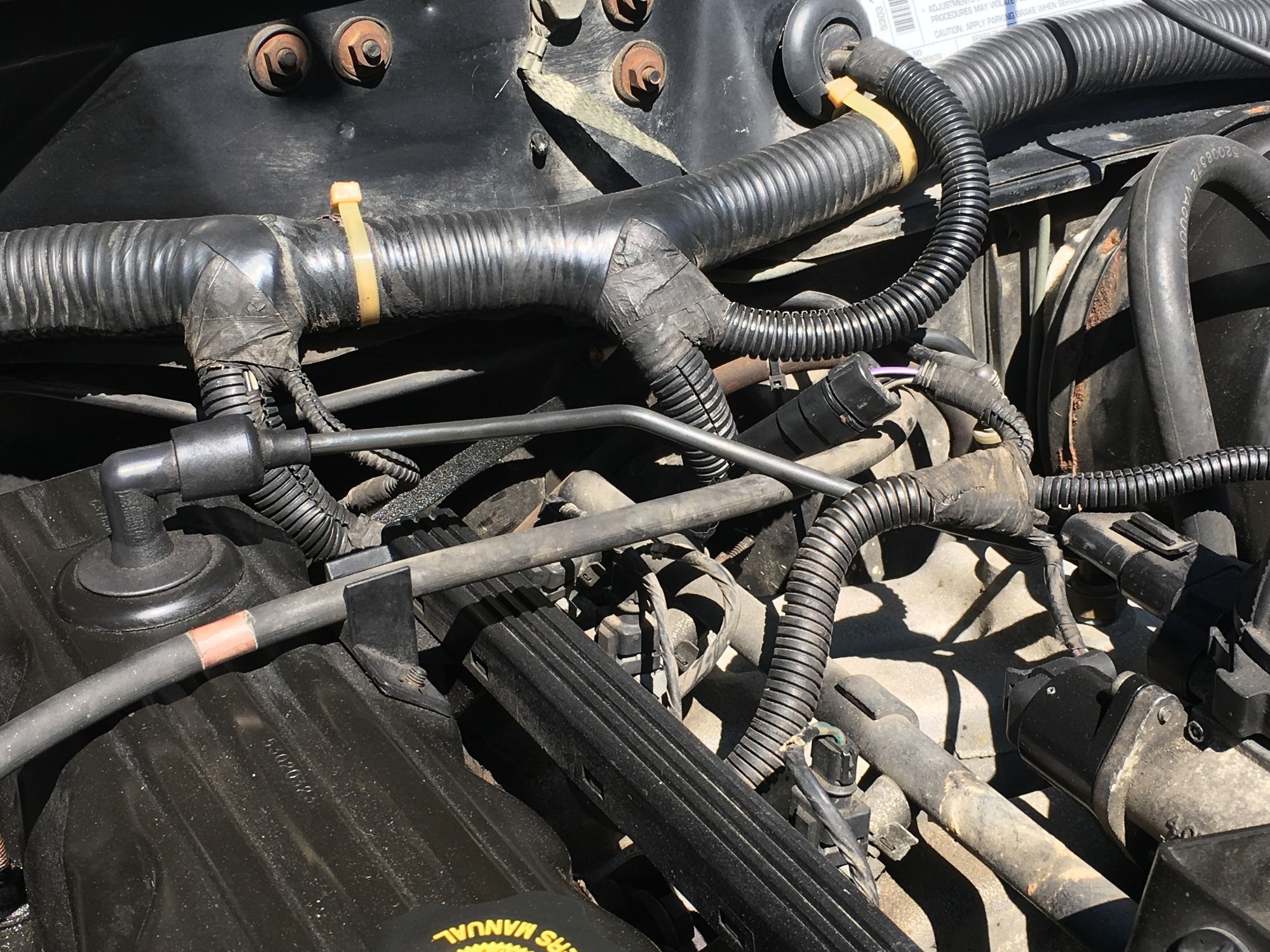

Could anyone tell me where I can buy this vacuum line? The line goes from the back of the valve cover to the intake manifold. 96 4.0 base sport utility
Last edited by Spencer_P; 04-07-2019 at 01:35 PM.
#3
Senior Member
Join Date: Mar 2016
Location: Oklahoma
Posts: 621
Likes: 0
Received 9 Likes
on
9 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L L6 PowerTech (stock)
It is a breather hose for the closed crankcase ventilation (non-pcv) system. You can replace with any hose that fits or works. Mopar will be O.E.M. and cost the most. Gates probably sells hose by the foot for the cheapest. Each parts store will have a generic brand that likely sells the shaped hose with the boots on each end.
The rear hose connects to the smaller, metered air orifice and the gases are taken into the air intake manifold directly. The front has a larger opening and intakes gases after the air intake box which has passed thru the air intake filter.
The rear hose connects to the smaller, metered air orifice and the gases are taken into the air intake manifold directly. The front has a larger opening and intakes gases after the air intake box which has passed thru the air intake filter.
#4
CF Veteran
Thread Starter
Join Date: Sep 2017
Location: MO
Posts: 1,548
Received 302 Likes
on
251 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
Sorry I thought that’d be visible since I have it on my profile. 1996 base sport utility model.
I’ve tried googling and advanced auto, so I could just run a vacuum hose from the CCV plug to the intake manifold and it’d be okay?
It is a breather hose for the closed crankcase ventilation (non-pcv) system. You can replace with any hose that fits or works. Mopar will be O.E.M. and cost the most. Gates probably sells hose by the foot for the cheapest. Each parts store will have a generic brand that likely sells the shaped hose with the boots on each end.
The rear hose connects to the smaller, metered air orifice and the gases are taken into the air intake manifold directly. The front has a larger opening and intakes gases after the air intake box which has passed thru the air intake filter.
The rear hose connects to the smaller, metered air orifice and the gases are taken into the air intake manifold directly. The front has a larger opening and intakes gases after the air intake box which has passed thru the air intake filter.
#6
Senior Member
Join Date: Mar 2016
Location: Oklahoma
Posts: 621
Likes: 0
Received 9 Likes
on
9 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L L6 PowerTech (stock)
You could. Someone has been kind enough to post an exact link already.
#7
CF Veteran
Thread Starter
Join Date: Sep 2017
Location: MO
Posts: 1,548
Received 302 Likes
on
251 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
EDIT: I took a better look and it is the correct line, thank you for the link
Last edited by Spencer_P; 04-07-2019 at 06:26 PM.
Trending Topics
#8
Senior Member
Join Date: Mar 2016
Location: Oklahoma
Posts: 621
Likes: 0
Received 9 Likes
on
9 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L L6 PowerTech (stock)
I believe so. Contact the seller before you buy to ensure. The same valve cover and air intake are used. I haven't seen any differences at the junk yards in those parts.
#10
Newbie
Join Date: Nov 2017
Location: Southern NJ
Posts: 7
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
I broke mine and repaired with a piece of brake line to eliminate the plastic portion. I did research the correct replacement and I believe this is the correct part:
Amazon Crown Automotive 53013797AB
Amazon Crown Automotive 53013797AB
Last edited by mwritter; 04-08-2019 at 04:23 PM. Reason: link error
#11
CF Veteran
Thread Starter
Join Date: Sep 2017
Location: MO
Posts: 1,548
Received 302 Likes
on
251 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
I broke mine and repaired with a piece of brake line to eliminate the plastic portion. I did research the correct replacement and I believe this is the correct part:
Amazon Crown Automotive 53013797AB
Amazon Crown Automotive 53013797AB
Last edited by Spencer_P; 04-09-2019 at 09:09 PM.
#13
Old fart with a wrench
I like the brake pipe idea. Simple, cheap, looks good. The plastic elbow in the valve cover is just a fixed orifice and the only important part of the system. It provides a fixed "vacuum leak" that the MAP sensor can tolerate to keep the mixture right.
