Transmission Fluid Smoke
#1
Senior Member
Thread Starter
Join Date: Apr 2012
Location: Charlotte, NC
Posts: 716
Received 0 Likes
on
0 Posts
Year: 1994 Jeep Cherokee Sport
Transmission Fluid Smoke
Hey Guys,
Your favorite gal is back :-)...over the weekend I got my customary oil change done, at Firestone, and since it was time for a tranny fluid drain and fill, u decided to let them do that also. I mean how can you go wrong with that?
Now I've seen white smoke coming from the tailpipe twice. It's like a combustion and then slowly disappears. Also, it smells like tranny fluid, checked the dipstick seems like a little too much fluid!
I'm definitely bring it up there tomorrow, but what could be causing this?
Thanks.
Your favorite gal is back :-)...over the weekend I got my customary oil change done, at Firestone, and since it was time for a tranny fluid drain and fill, u decided to let them do that also. I mean how can you go wrong with that?
Now I've seen white smoke coming from the tailpipe twice. It's like a combustion and then slowly disappears. Also, it smells like tranny fluid, checked the dipstick seems like a little too much fluid!
I'm definitely bring it up there tomorrow, but what could be causing this?
Thanks.
#3
Member
Join Date: Feb 2014
Location: north of the Rio Grande, south of the Red, east of the Pecos, west of the Sabine
Posts: 172
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Comanche
Engine: 4.0

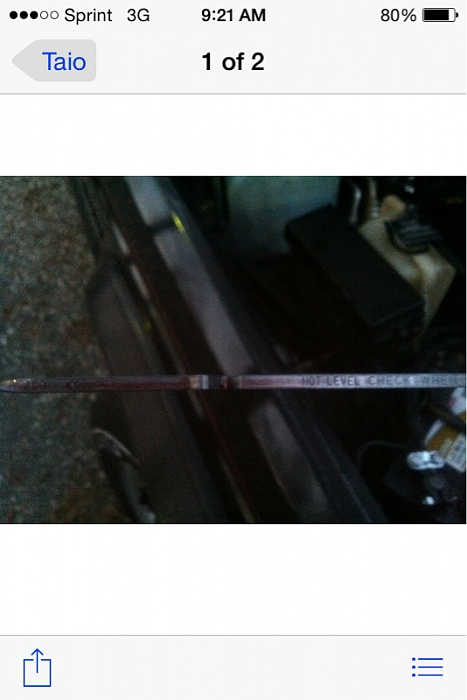

What is your procedure for checking the tranny fluid level (just so we all know that you're doing it properly)?
#5
Senior Member
Thread Starter
Join Date: Apr 2012
Location: Charlotte, NC
Posts: 716
Received 0 Likes
on
0 Posts
Year: 1994 Jeep Cherokee Sport
#6
Senior Member
Join Date: Nov 2013
Location: Lapeer, Murder Mitten
Posts: 773
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0 I6
No, that would be on outside from when they changed it.
No possible way for trans fluid to get into exhaust.
Quite common to get vapor coming from exhaust when weather is cold, which would be less common in NC. Here in MI we think nothing of vapor coming from exhaust in winter, it's just like "seeing" your breath in the cold.
No possible way for trans fluid to get into exhaust.
Quite common to get vapor coming from exhaust when weather is cold, which would be less common in NC. Here in MI we think nothing of vapor coming from exhaust in winter, it's just like "seeing" your breath in the cold.
#7
Senior Member
Thread Starter
Join Date: Apr 2012
Location: Charlotte, NC
Posts: 716
Received 0 Likes
on
0 Posts
Year: 1994 Jeep Cherokee Sport
No, that would be on outside from when they changed it. No possible way for trans fluid to get into exhaust. Quite common to get vapor coming from exhaust when weather is cold, which would be less common in NC. Here in MI we think nothing of vapor coming from exhaust in winter, it's just like "seeing" your breath in the cold.
Trending Topics
#8
Member
Join Date: Feb 2014
Location: north of the Rio Grande, south of the Red, east of the Pecos, west of the Sabine
Posts: 172
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Comanche
Engine: 4.0
#9
Member
Join Date: Feb 2014
Location: north of the Rio Grande, south of the Red, east of the Pecos, west of the Sabine
Posts: 172
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Comanche
Engine: 4.0
It's common to see the water vapor from a cold engine driving down the road, but shouldn't see much once the engine is at operating temp. It also depends on the relative humidity. Much more visible vapor when it's cold and damp.
#10
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
While you're over there again, ask what they used for transmission fluid.
Hopefully Dex/Merc and not ATF+
If it's overfilled it might be blowing a bit of fluid out of the overflow tube, which hits the exhaust and rolls out the back, looking like it's coming from the exhaust. A good look around underneath will tell you.
Hopefully Dex/Merc and not ATF+
If it's overfilled it might be blowing a bit of fluid out of the overflow tube, which hits the exhaust and rolls out the back, looking like it's coming from the exhaust. A good look around underneath will tell you.
#11
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Actually the proper way to check it is to drive the Jeep for about 15 miles to bring the trans fluid up to operating temp (170*F). Park the Jeep on level ground. Set trans to PARK. Set the parking brake. Leave engine running at idle, check the fluid level on both sides of the dipstick. The level should be at or just below the MAX line on the dipstick.
#12
Senior Member
Thread Starter
Join Date: Apr 2012
Location: Charlotte, NC
Posts: 716
Received 0 Likes
on
0 Posts
Year: 1994 Jeep Cherokee Sport
Actually the proper way to check it is to drive the Jeep for about 15 miles to bring the trans fluid up to operating temp (170*F). Park the Jeep on level ground. Set trans to PARK. Set the parking brake. Leave engine running at idle, check the fluid level on both sides of the dipstick. The level should be at or just below the MAX line on the dipstick.
#13
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Your '94 dipstick may have "FULL" stamped on it, with a line below the word.
PARK was chosen by Chrysler to make sure the Jeep stayed put while you were working in the engine bay. Neutral or Park will work. Just make sure if you use Neutral to fully set the parking brake and block the wheels.
#14
CF Veteran
Join Date: Jan 2014
Location: District of Columbia
Posts: 1,281
Received 271 Likes
on
202 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0
#15
Senior Member
Join Date: May 2014
Location: Iroquois Ontario Canada
Posts: 946
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I couldn't find a 94 FSM, but the 93 FSM says check in neutral, and the 98 says check in park park. Both give the same pre-check instructions as CCKen, but add in cycling through all the gears.
If you want access to a FSM they are available at Morris 4x4 center in an online version for free. I bought a downloadable version from Pacific Coast Manuals. Only problem is you can not copy and paste text to share information from it. You can however print pages from it and have it on hand while working on your Jeep and just throw out the dirty pages when you are done.
If you want access to a FSM they are available at Morris 4x4 center in an online version for free. I bought a downloadable version from Pacific Coast Manuals. Only problem is you can not copy and paste text to share information from it. You can however print pages from it and have it on hand while working on your Jeep and just throw out the dirty pages when you are done.
