Tracking down some leaks (with pics)
#1
Senior Member
Thread Starter
Tracking down some leaks (with pics)
This area around the heater core outlet connection on my water pump is always fairly damp. Is this a sign of a water pump going bad, or just a leak at the connection, or something else?
Also, this area around my engine is also damp quite a bit, I don't know if it's oil or coolant or what. Any thoughts?
I know I have some oil leaks, but I'm thinking they're on the bottom, not the top of the egine, either the rear main seal or oil filter adapter.
Also, this area around my engine is also damp quite a bit, I don't know if it's oil or coolant or what. Any thoughts?
I know I have some oil leaks, but I'm thinking they're on the bottom, not the top of the egine, either the rear main seal or oil filter adapter.
#2
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO

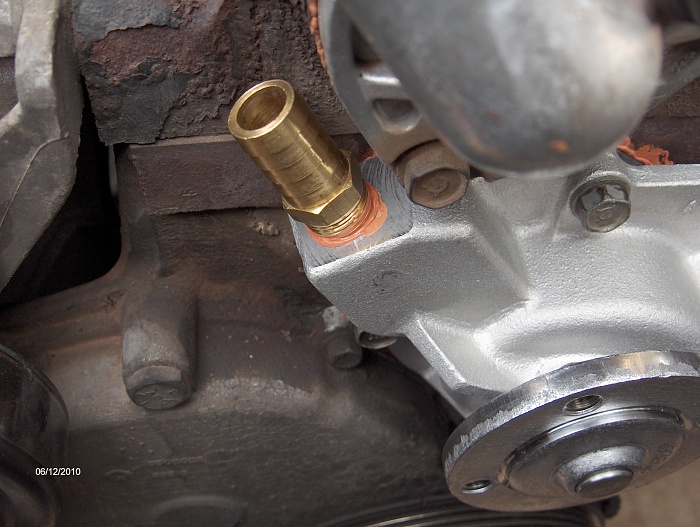

1st pic is the coolant inlet/return tube from the heater core to the pump. 2nd pic is probably a little oil from a leaky valve cover gasket. Here's one way to replace the tube on the water pump. It's a brass 3/8" MNPT X 5/8" hose barb nipple available at just about any hardware store for $2-$3. It will require a slightly longer 5/8" heater hose but it will never rust/corrode.
Last edited by djb383; 10-24-2012 at 06:01 PM.
