Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

tow hooks

Thread Tools

Search this Thread

Old Feb 10, 2010 | 04:04 PM
  #1
REVIS 24's Avatar
Thread Starter
Member

Joined: Nov 2009
Posts: 119
Likes: 0
From: central,new jersey
Year: 1995
Model: Cherokee
Engine: 4.0/ 6cyl.
Default tow hooks

i have a 95 xj and i want to get front tow hooks.can i just get the tow hooks with the 2 bolts and bolt it to the frame ? i found a pair for $20 .or do i need to buy the tow hooks with the brackets for $70....want to know if they will work,there not for heavy duty use just pull a buddy out now and then.thanks
Attached Images
Reply
Old Feb 10, 2010 | 04:06 PM
  #2
claygrassmann's Avatar
CF Veteran

Joined: Dec 2008
Posts: 1,533
Likes: 0
From: eaton ohio
Year: 93
Model: Cherokee
Engine: 4.0
Default

need the brackets, could build a bumper for a lil bit more tho
Reply
Old Feb 10, 2010 | 04:08 PM
  #3
REVIS 24's Avatar
Thread Starter
Member

Joined: Nov 2009
Posts: 119
Likes: 0
From: central,new jersey
Year: 1995
Model: Cherokee
Engine: 4.0/ 6cyl.
Default

Originally Posted by claygrassmann
need the brackets, could build a bumper for a lil bit more tho
i have a rear hitch for main tow point, im a little low on funds right now i know its better to get the brackets,just wondering if it would work? i dont want bumpers im trying to keep the truck light
Reply
Old Feb 10, 2010 | 04:42 PM
  #4
chad142's Avatar
Member

Joined: Dec 2009
Posts: 111
Likes: 0
From: Roseville MN
Year: 1991
Model: Cherokee
Engine: inline 6 HO
Default

care full with the bumber even if its a "off-raod" bumber i have seen bumbers ripped out of there place well one side but the rear hitch is also my main tow spot
Reply
Old Feb 10, 2010 | 05:12 PM
  #5
shintastrife's Avatar
Member

Joined: Feb 2010
Posts: 189
Likes: 0
From: SC
Year: 1990
Model: Cherokee
Engine: 4.0L
Default

want have that prob im going to weld my bumpers to the fram and im making me so i know they wont brake on me. after i get the dont before i weld them on im planning getting the wight and a pics and posting them up on here. im not paying all most 300 for the bumpers i want when i can make them for about 175.
Reply
Old Feb 10, 2010 | 05:19 PM
  #6
mrmikey32's Avatar
Seasoned Member

Joined: Dec 2009
Posts: 462
Likes: 0
From: Lake in the hills,IL
Year: 2001
Model: Cherokee
Engine: 4.0
Default

you did not search. how do i know, i made the same damn thread.

but to answer your question, yes you need the brackets. just search around jy, or wait and you can find them cheap.

i got hooks and brackets for 50 bucks
Reply
Old Feb 10, 2010 | 05:23 PM
  #7
nasonguy's Avatar
Senior Member

Joined: Jul 2009
Posts: 775
Likes: 3
Year: 1998
Model: Cherokee
Engine: 4.0 HO
Default

Yeah, it's not going to work without the brackets, guaranteed, one or two recoveries, and those puppies rip right out of your unibody rail...

There's a reason they're not called "Frame rails" or "Frames", it's because they aren't, it's nothing more than a few pieces of stacked sheet metal. Hence the need for a bracket to spread the load around the rail so it doesn't just rip the bolt out...
Reply
Old Feb 10, 2010 | 05:24 PM
  #8
ckysodkorn_xj's Avatar
CF Veteran

Joined: Dec 2009
Posts: 1,882
Likes: 0
From: Oxford NC
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

go to your local metal shop or if your in highschool (like me) take or ask the metal shop teacher to build you some d rings mounts and sence you have a welder make some better mounting brackets and weld them to the bumper and bolt both the d ring mounts and new bumper mounts to the " frame" hers what they should look like (atleast what mine look like) the cuts on top are for the bumper to come thru and sit on.
Attached Images
Reply
Old Feb 11, 2010 | 12:39 AM
  #9
claygrassmann's Avatar
CF Veteran

Joined: Dec 2008
Posts: 1,533
Likes: 0
From: eaton ohio
Year: 93
Model: Cherokee
Engine: 4.0
Default

Originally Posted by ckysodkorn_xj
go to your local metal shop or if your in highschool (like me) take or ask the metal shop teacher to build you some d rings mounts and sence you have a welder make some better mounting brackets and weld them to the bumper and bolt both the d ring mounts and new bumper mounts to the " frame" hers what they should look like (atleast what mine look like) the cuts on top are for the bumper to come thru and sit on.





dont wanna rain on your parade but those prolly wont last they need to tie in further back than they look like they do the brackets that you buy are the sameish as stock they are designed like that for a reason but thos dont look like they run far enough back and also look like they will rip right thru the "frame" i would suggest at absolute minimum three mounting points to the "frame"
Reply
Old Feb 11, 2010 | 09:42 AM
  #10
nasonguy's Avatar
Senior Member

Joined: Jul 2009
Posts: 775
Likes: 3
Year: 1998
Model: Cherokee
Engine: 4.0 HO
Default

Holy Run-On Sentences Bat-Man!

But yeah, he's right, that's no different than just drilling two holes and bolting the tow hooks through those, it's just gunna tear it up.

The further back point that he is talking about should be about a foot back on the unibody rail, it goes all the way through it, but it's "tubed" in and reinforced to be able to handle the stressed of having a tow hook attatched to it. You need to use that.

Go look under your jeep, the bolt hole I'm talking about is by the back side of the PS pump on the drivers side, and by the alternator on the passenger side. Gotta use those if you want any sort of strong and reliable tie in...
Reply
Old Feb 11, 2010 | 09:58 AM
  #11
RedZeppelinXJ's Avatar
Seasoned Member

Joined: Jan 2010
Posts: 263
Likes: 13
From: Gaines, NY
Year: 1996
Model: Cherokee
Engine: 4.0L HO
Default

I would check out Iron Rock Offroad for their tow hook kits....they arent muc more than any others i've seen and are the best built

http://www.ironrockoffroad.com/Merch...t_Code=IR-XTHM
Reply
Old Feb 11, 2010 | 10:05 AM
  #12
96Cherokee113's Avatar
CF Veteran

Joined: Nov 2009
Posts: 1,261
Likes: 0
From: New Jersey
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Default

Originally Posted by RedZeppelinXJ
I would check out Iron Rock Offroad for their tow hook kits....they arent muc more than any others i've seen and are the best built

http://www.ironrockoffroad.com/Merch...t_Code=IR-XTHM
Wow, that does look like a really great kit. Doesn't look like the bumper even needs to come off to put it on. That is definitely on my list of things to buy. Next paycheck, I'll be picking them up.
Reply
Old Feb 11, 2010 | 10:27 AM
  #13
fantic238's Avatar
CF Veteran

Joined: Jun 2009
Posts: 5,383
Likes: 5
Year: 1988 limited
Model: Cherokee
Engine: 4.0 litre
Default

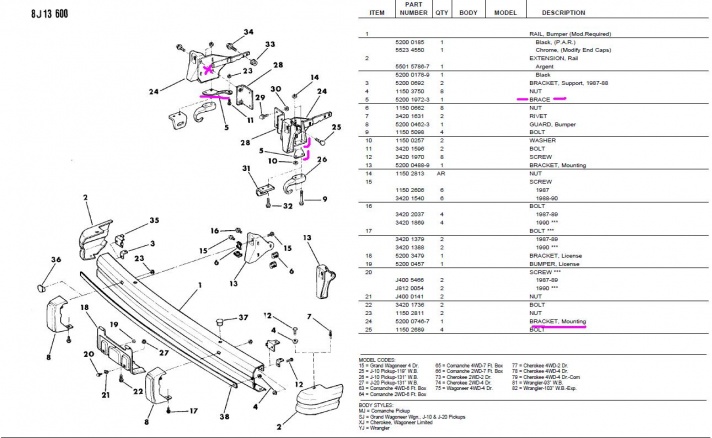

The Laredo hooks will bolt on the drivers side hook mounts but you will need the laredo bracket for the passenger side.
Attached Thumbnails tow hooks-bracket.jpg

Last edited by fantic238; Feb 11, 2010 at 10:35 AM.
Reply
Old Feb 11, 2010 | 01:10 PM
  #14
nasonguy's Avatar
Senior Member

Joined: Jul 2009
Posts: 775
Likes: 3
Year: 1998
Model: Cherokee
Engine: 4.0 HO
Default

Originally Posted by RedZeppelinXJ
I would check out Iron Rock Offroad for their tow hook kits....they arent muc more than any others i've seen and are the best built

http://www.ironrockoffroad.com/Merch...t_Code=IR-XTHM
Only bummer with that one is you can't use your front skid anymore.
Reply
Old Feb 12, 2010 | 08:42 AM
  #15
claygrassmann's Avatar
CF Veteran

Joined: Dec 2008
Posts: 1,533
Likes: 0
From: eaton ohio
Year: 93
Model: Cherokee
Engine: 4.0
Default

Originally Posted by nasonguy
Only bummer with that one is you can't use your front skid anymore.
man i really like that first one ive seen like that that is braced side to side
Reply
