Removing the heater control valve on a '96 XJ
#1
Seasoned Member
Thread Starter
Removing the heater control valve on a '96 XJ
I've been told to completely remove my heater control valve. Never having dealt with this before I'm assuming this is it...

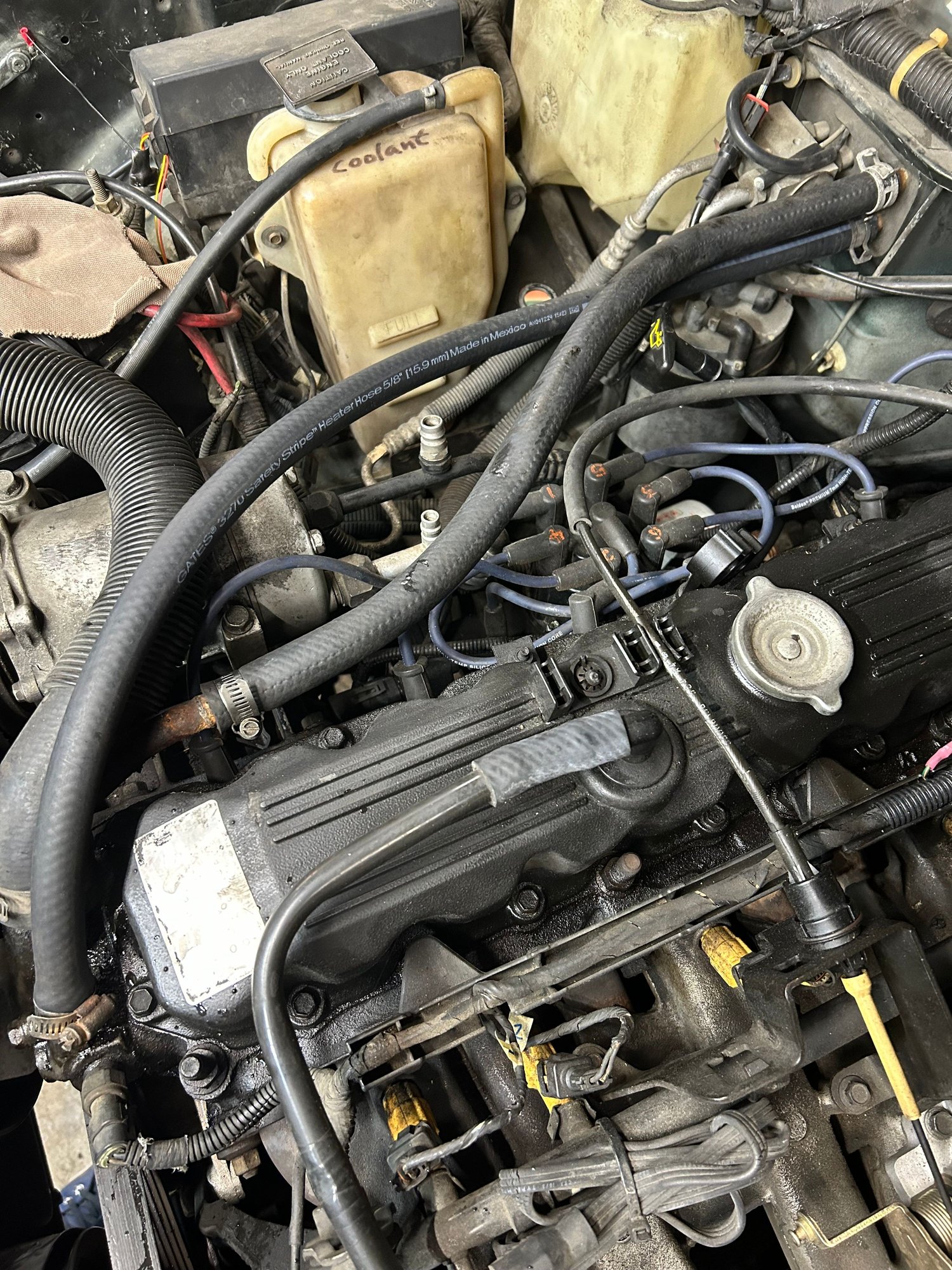

I guess all that's involved is just to remove this valve and re-connect the remaining hoses. Not sure exactly how those connections would go though. Hoses A & B both go to the heater box and hoses 1 & 2 both go to the motor. Here's where the top hose #1 goes...
If I knew what direction the water flowed in that last pic (to or away from the water pump) and which way the water should flow through the heater box that would be enough info to know how to hook the hoses up. I'm guessing the flow through the heater box is 'IN' through the bottom inlet and 'OUT' through the top outlet (in order to let air bubbles escape).
So am I getting this all about right? In what combination should these hoses be reconnected?
.
I guess all that's involved is just to remove this valve and re-connect the remaining hoses. Not sure exactly how those connections would go though. Hoses A & B both go to the heater box and hoses 1 & 2 both go to the motor. Here's where the top hose #1 goes...
If I knew what direction the water flowed in that last pic (to or away from the water pump) and which way the water should flow through the heater box that would be enough info to know how to hook the hoses up. I'm guessing the flow through the heater box is 'IN' through the bottom inlet and 'OUT' through the top outlet (in order to let air bubbles escape).
So am I getting this all about right? In what combination should these hoses be reconnected?
.
#3
Senior Member
Join Date: Sep 2014
Location: A.A. Co. Maryland
Posts: 738
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 Inline
On my '95 the hose to the top was a 3/4" and the bottom was a 5/8". I went to a few stores and bought the hoses for a '97 that come with the bends molded in them (this is not a requirement). One other thing on the valve itself, if there is a small vacuum hose you are going to need to cap that off as well.
#4
Seasoned Member
Thread Starter
Thanks yall. Never noticed they were different sizes. If doesn't cost too much I'll prob just get the hoses for the '97 and do a complete replace.
