Throttle Valve Cable (TV) (kickdown cable) 1992 xj

I was recently doing a tcase swap on my 1992 jeep xj with the 4.0 and AW4 automatic transmission and while i was doing that I broke my Throttle Valve Cable (TV) AKA (kickdown cable) and i have no idea where it connects to on the transmission so does anybody know where it would connect to on the transmission?

Mar 16, 2018 | 09:17 PM

dcollins3208

Member

Joined: Jul 2015

Posts: 206

Likes: 0

It's internal but not hard to get to.
-pull trans pan
-remove filter

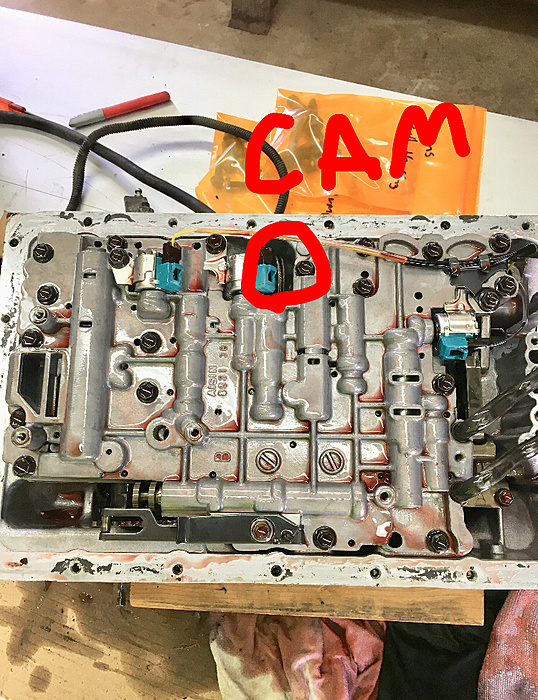

-you'll see a cam on the valve body (see image)
-turn it downwards, lock in the new tv cable, release, and you're good to go

Edit: you may be able to get by without removing the filter, I can't remember. Either way, it's just a few more bolts if so

Throttle Valve Cable (TV) (kickdown cable) 1992 xj-photo877.jpg

Last edited by dcollins3208; Mar 16, 2018 at 09:20 PM.

Mar 16, 2018 | 09:27 PM

fb97xj1

CF Veteran

Joined: Dec 2015

Posts: 3,038

Likes: 338

From: PA

Year: 1997

Model: Cherokee

Engine: 4.0L

It runs to the driver side of the case and into the transmission. You will have to drop the pan to replace it. Here is a how-to from lunghd.

http://www.lunghd.com/Tech_Articles/...eplacement.htm
