super easy oil adaptor o-ring change

Thread Tools

Search this Thread

Old Jan 1, 2019 | 12:32 AM
  #1
awg's Avatar
awg
Thread Starter
CF Veteran
5 Year Member
Liked
Loved
Community Favorite

Joined: Mar 2016
Posts: 3,816
Likes: 725
Year: 96
Model: Cherokee (XJ)
Engine: 4.0
Default super easy oil adaptor o-ring change



I have heard people have issues getting this job done, breaking quality spanners etc. They leak like a mongrel, and originally had loctite on the big recessed torx bolt.

My preparations;

Pop the hood, disconnect the OP sender wire.

No need to heat up engine, grovel on ground like a maggot, or even remove oil filter (although it make install easier)

the trick is 2 x identical 12mm spanners on the T60 hex, (I knock it out of its /1/2" drive socket first). I bought them especially for this job for $1 each from Supercheap Auto, used them 3 times.
non-identical spanners will not work

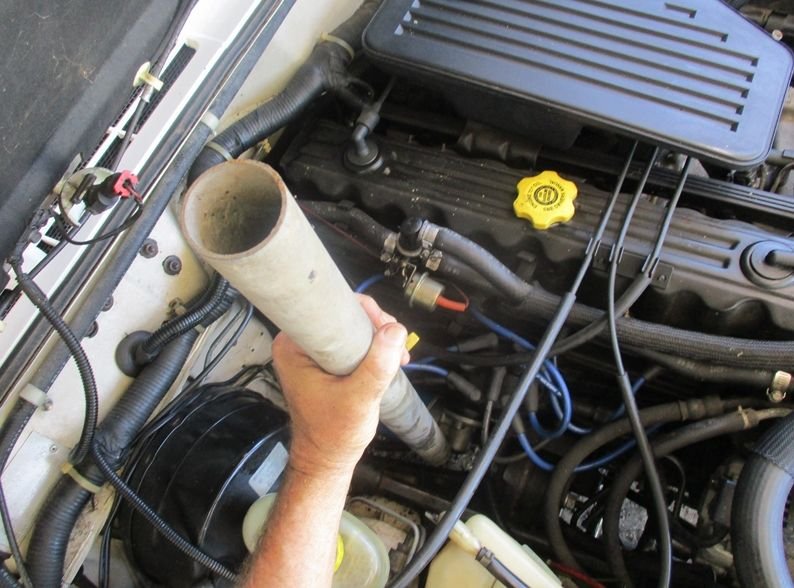

used a 2.5ft length of 1.5" pipe from above, over the spanners, to undo and tighten the T60, a 10mm ratchet wrench to back it out & in quick

took it for a test drive, no more oil dripping down onto the main exhaust pipe, looks like my trucks on fire

no oil running down from anywhere else (yet)...and yes madam, I do use that toothbrush for cleaning the engine..but only the parts that need it!

sorry, pictures may not be were I want, havent uploaded b4



Reply
Old Jan 1, 2019 | 04:52 AM
  #2
dave1123's Avatar
Old fart with a wrench

Joined: Nov 2010
Posts: 14,398
Likes: 740
From: Manlius, east of Syracuse, NY
Year: 2000 XJ Sport & WJ Laredo
Model: Grand Cherokee (WJ)
Engine: 4.0L
Default

Nice job!
Reply
Old Jan 1, 2019 | 05:25 AM
  #3
boxburn's Avatar
CF Veteran

Joined: Oct 2018
Posts: 1,577
Likes: 279
From: United Kingdom
Year: 1995 RHD
Model: Cherokee (XJ)
Engine: 4.0l
Default

Only if it were that simple. I have an LPG evaporator right above it which isn't really moveable so not as much access. Handily though a 1.5ft long spanner did the job from a mixture of above and on the floor.
