Steering stabilizer issues

Thread Tools

Search this Thread

Old 12-23-2013, 05:34 PM
  #1
Member
Thread Starter

young33's Avatar

Join Date: Oct 2013
Location: Sylvania, Ohio
Posts: 229
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Engine: 4.0L I6
Default Steering stabilizer issues

First of all, I got a skyjacker stabilizer and it doesn't seem to have all the hardware. It only has one bolt, and no castle nut or cotter pin. Aren't I missing something here? Also, I was able to get the bolt with the cotter pin off. It's the otherwise that is giving me trouble. I tried getting a wrench on the bolt head(towards the front of the jeep) and I torqued it but it slipped. Any advice here? I had a pipe on it and there wasn't enough room, but with my hands really pulling I pulled until it gave way, which I thought broke it loose. But it was just starting to round it. Any input is appreciated. Oh yeah, and of course I used a type of pb blaster.
Old 12-23-2013, 06:15 PM
  #2
Member

MikeTassjeep10's Avatar

Join Date: Dec 2013
Posts: 101
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L
Default

Prob have to heat the crown but with a torch. PB is good stuff but not enough on those. Replaced mine like 5 months ago. And, I could be wrong but I do think you're missing some parts. I replaced mine with just a Gabriel stabilizer and I feel like mine came with a bolt for the lower connection and nut. I'm not sure though you may have it all. But def need a caulder pin for that crown. But yeah they can be a b**** to get off.
Old 12-23-2013, 06:16 PM
  #3
Member

MikeTassjeep10's Avatar

Join Date: Dec 2013
Posts: 101
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L
Default

Crown nut* sorry lol
Old 12-23-2013, 08:02 PM
  #4
Member
Thread Starter

young33's Avatar

Join Date: Oct 2013
Location: Sylvania, Ohio
Posts: 229
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by MikeTassjeep10
Prob have to heat the crown but with a torch. PB is good stuff but not enough on those. Replaced mine like 5 months ago. And, I could be wrong but I do think you're missing some parts. I replaced mine with just a Gabriel stabilizer and I feel like mine came with a bolt for the lower connection and nut. I'm not sure though you may have it all. But def need a caulder pin for that crown. But yeah they can be a b**** to get off.
That also know as a castle nut? Like the one used with the cotter pin?
Old 12-23-2013, 08:36 PM
  #5
Member
Thread Starter

young33's Avatar

Join Date: Oct 2013
Location: Sylvania, Ohio
Posts: 229
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Engine: 4.0L I6
Default

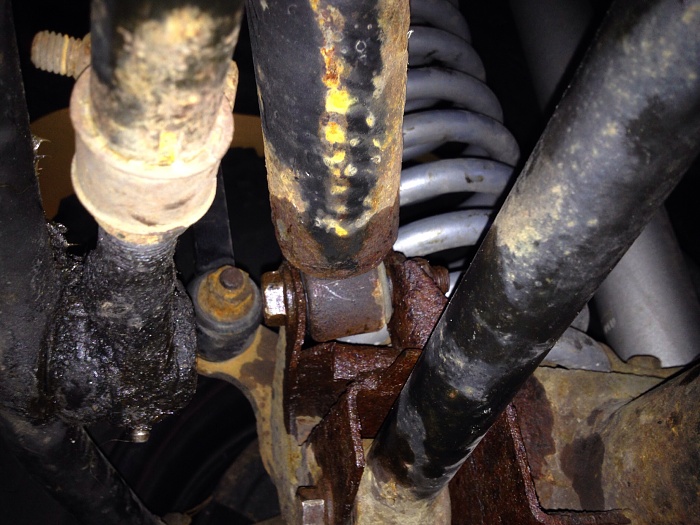

Here's a pic of the bolt
Attached Thumbnails Steering stabilizer issues-image.jpg
Old 12-24-2013, 10:56 AM
  #6
Member

MikeTassjeep10's Avatar

Join Date: Dec 2013
Posts: 101
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L
Default

It's the one with a caulder pin that goes through it. It's on the upper connection of that stabilizer. My advice would be to heat up both connections with a torch and be careful when cranking them off
Old 12-24-2013, 11:10 AM
  #7
kjc
CF Veteran

kjc's Avatar

Join Date: Aug 2011
Location: Blue Springs, MO
Posts: 1,031
Likes: 0
Received 2 Likes on 2 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L Laredo
Default

You'll have much better luck turning the 'nut'.. not the bolt. A six point socket might work better than a 12 point.. the 12 point sockets tend to round off stubborn nuts more than the hex ones (in my experience) ALWAYS loosen the nut.. not the bolt.
Old 12-24-2013, 11:14 AM
  #8
Seasoned Member

carbuff's Avatar

Join Date: Sep 2013
Location: LI, NY
Posts: 362
Likes: 0
Received 1 Like on 1 Post
Year: 2000
Model: Cherokee
Engine: 4.0
Default

I took the wheel off to do mine. Much easier from that side. I put a wrench on the side towards the front that eventually wedged itself on something after spinning a bit. I used an impact wrench on the other side because I had one. I could have easily used a socket, extension and breaker bar.
