Default Spark plugs

What would be the proper spark plug to put in a 2002 Jeep Grand Cherokee Laredo 4.0 like to know what is used from the factory or what is suggested
Old 06-07-2017, 05:47 PM
  #2
Senior Member

moparado's Avatar

Join Date: Jan 2017
Location: usa
Posts: 799
Likes: 0
Received 4 Likes on 4 Posts
Year: 2000
Model: Cherokee
Engine: 6 cylinder
Default

I use NGK V-power ZFR5N in my 2k 4.0 for years now.

Chrysler recommends Champion plugs but the NGK's work better at least in my rig.
Check the owner's manual or the sticker in the engine bay for the Champion part number.

Whether you go with the NGKs or Champions, Chrysler recommends replacing them every 30,000 miles.
Old 06-07-2017, 06:25 PM
  #3
Banned

extrashaky's Avatar

Join Date: Feb 2014
Location: Florida
Posts: 2,379
Likes: 0
Received 13 Likes on 12 Posts
Year: 2000
Model: Cherokee(XJ)
Engine: Golen 4.6L
Default

Originally Posted by moparado
Chrysler recommends Champion plugs but the NGK's work better at least in my rig.
If I'm not mistaken, the coil rail motors came from the factory with NGK ZFR5N. That's what came out of mine the first time I swapped them. Champions were in the earlier motors that had distributor ignition. Apparently the NGKs work better with the waste spark ignition.
Old 06-07-2017, 06:47 PM
  #4
CF Veteran

investinwaffles's Avatar

Join Date: Oct 2013
Location: Tarpon Springs, FL / Denver, CO
Posts: 2,097
Likes: 0
Received 8 Likes on 7 Posts
Year: '98
Engine: 4.0 I6
Default

ZFR5N, make sure the gap is at .035 (check your firewall to make sure). Higher quality than Champions anyway
Old 06-07-2017, 06:50 PM
  #5
CF Veteran

CCKen's Avatar

Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes on 67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

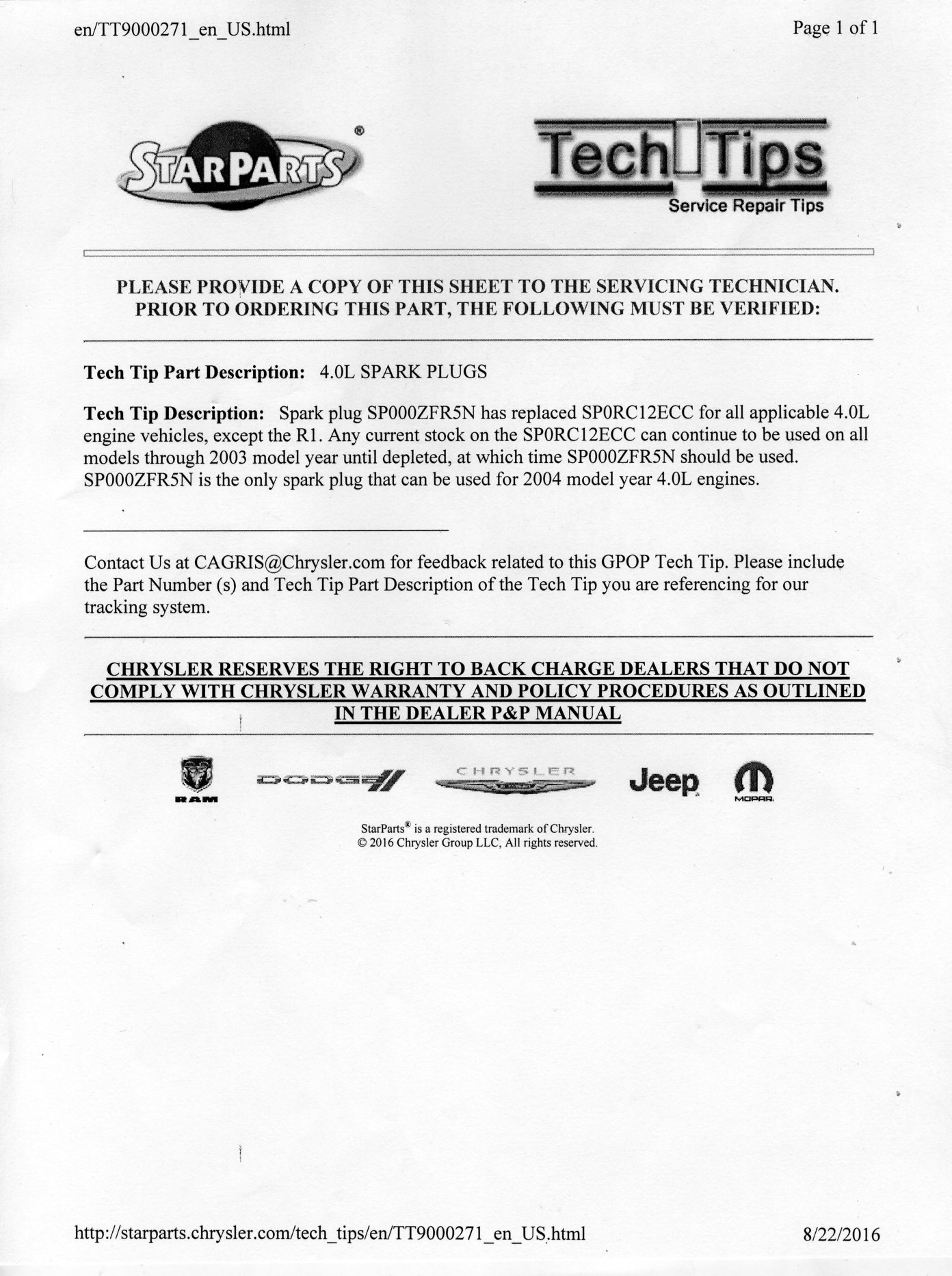

Here's a tech tip from Chrysler 'Star Parts' concerning spark plugs:


Name:  Tech%20Tips%20Spark%20Plugs.jpg
Views: 279
Size:  401.4 KB
.
Old 06-07-2017, 08:23 PM
  #6
Senior Member

moparado's Avatar

Join Date: Jan 2017
Location: usa
Posts: 799
Likes: 0
Received 4 Likes on 4 Posts
Year: 2000
Model: Cherokee
Engine: 6 cylinder
Default

Originally Posted by extrashaky
If I'm not mistaken, the coil rail motors came from the factory with NGK ZFR5N. That's what came out of mine the first time I swapped them. Champions were in the earlier motors that had distributor ignition. Apparently the NGKs work better with the waste spark ignition.
I also hear that some people had NGKs from the factory in the later models.

But, the sticker in my 2000 engine bay firewall says Spark plug: RC12ECC which are Champions.
Champions were in my Jeep fresh from the factory back in 2000 the 1st time i changed plugs.

I also changed plugs recently in my '16 Patriot, got OEM $MOPAR$ replacements because i didn't want jeopardize the lifetime power train warranty....yep NGK's in the MOPAR box.
Yeah i know, could of saved a bunch buying them at AZ.

Champions used to be one of the goto plugs decades ago, not any more.
Same i'm hearing with MOOG suspension parts.
Old 06-07-2017, 08:43 PM
  #7
Caracticus Potts The Mod

Willys55's Avatar

Join Date: Jul 2009
Location: Hainsville, NJ
Posts: 5,298
Received 9 Likes on 8 Posts
Model: Grand Cherokee
Default

Originally Posted by moparado
I also hear that some people had NGKs from the factory in the later models.

But, the sticker in my 2000 engine bay firewall says Spark plug: RC12ECC which are Champions.
Champions were in my Jeep fresh from the factory back in 2000 the 1st time i changed plugs.

I also changed plugs recently in my '16 Patriot, got OEM $MOPAR$ replacements because i didn't want jeopardize the lifetime power train warranty....yep NGK's in the MOPAR box.
Yeah i know, could of saved a bunch buying them at AZ.

Champions used to be one of the goto plugs decades ago, not any more.
Same i'm hearing with MOOG suspension parts.
I still use moog in all my cars and trucks, hearing is one thing but knowing is another.....I have never had an issue.
Old 06-08-2017, 07:58 AM
  #8
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,525 Likes on 1,237 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

I use that NGK plug in all 4.0s back to 1987. ZFR5N
Old 06-08-2017, 12:17 PM
  #9
Member

fijicorey25's Avatar

Join Date: Jun 2016
Location: Florida
Posts: 206
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

I replaced my plugs in my 2000 with the NGK V-power ZFR5N about a year ago. I've since taken them out to inspect them a couple of times and they look great. They were pre-gapped to .035 and none of them out of the box were off .035.
