Sitting 15 years

Thread Tools

Search this Thread

Old Dec 30, 2023 | 11:32 AM
  #1
Iroc's Avatar
Thread Starter
Newbie

Joined: Dec 2023
Posts: 1
Likes: 0
From: Gonzales La
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0 straight six
Default Sitting 15 years

Trying to empty gas tank. Removed line at filter and trying to jump relay but I get nothing. Any ideas to do next?
Reply
Old Dec 30, 2023 | 11:44 AM
  #2
Saudade's Avatar
CF Veteran
5 Year Member
Veteran: Air Force
Community Favorite

Joined: Aug 2020
Posts: 2,124
Likes: 578
From: SoCal
Year: 1988
Model: Cherokee (XJ)
Engine: 4.0L
Default

What year is it?

Are you sure you have the right pin on the relay connector?
Reply
Old Dec 30, 2023 | 01:25 PM
  #3
BruceB's Avatar
CF Veteran
10 Year Member
Liked
Loved
Community Favorite

Joined: Jan 2014
Posts: 1,102
Likes: 364
From: Eustis, Florida
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
Default

Other than the tank draining, what else do you plan to do before attempting to start it?
Reply
Old Dec 30, 2023 | 01:45 PM
  #4
dmoe69's Avatar
Senior Member
Liked
Loved
Community Favorite

Joined: May 2021
Posts: 560
Likes: 112
From: Western Washington
Year: 1988
Model: Cherokee (XJ)
Engine: 4.0L
Default

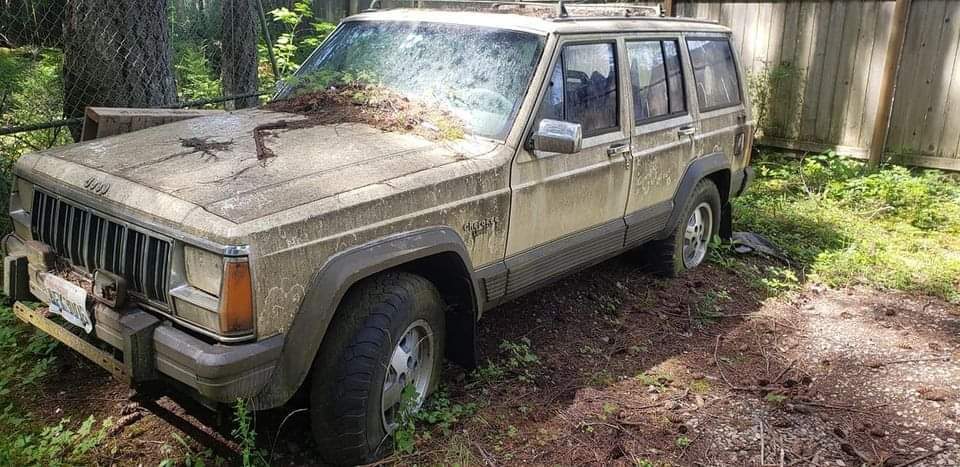

Sounds like fun! Go to your profile and load it up with the specifics of your rig. After you put in the jumper, did you turn the key? It could be that the reason it was sitting for 15 years (assuming you just purchased it) is because the fuel pump died. Here is mine after 12 years in the woods:

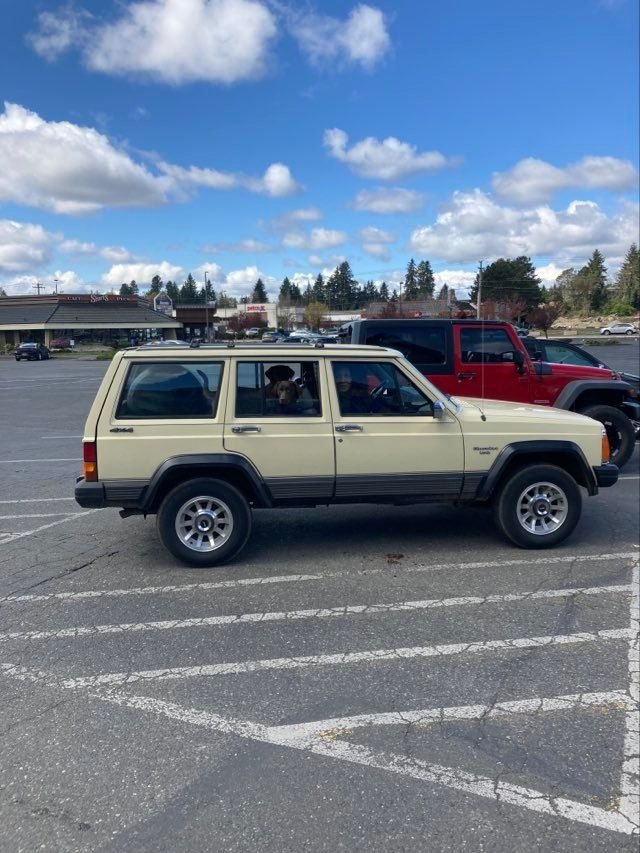

and now;


Reply
Old Dec 31, 2023 | 10:05 PM
  #5
awg's Avatar
awg
CF Veteran
5 Year Member
Liked
Loved
Community Favorite

Joined: Mar 2016
Posts: 3,816
Likes: 725
Year: 96
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by Iroc
Trying to empty gas tank. Removed line at filter and trying to jump relay but I get nothing. Any ideas to do next?
depends where the hole for the pump is, pump will be croked almost for sure, so you can either pump fuel out after removing pump cover, if that is not possible, snake a hose down the filler neck

I would recommend using an electric pump for that, and you may as well order a new Jeep fuel pump, and use that, but absolutely add an inline filter as the tank will be full of scum

It can also be syphoned, but that can be nasty

If all else fails, the tank can be carefully lowered with a couple of trolley jacks and timber supports, wheeled out and dealt with then

I found the filler hose rubber well bonded to the tank neck, and had to work lubricating fluid in by prying back the rubber and being patient

Its a pretty good idea to coat everything in anti-seize when it all goes back together.

Tank will need to be cleaned out
